Ignition Coil: Inspection

1. Measure the primary coil resistance between terminals 1 and 2.

   Standard value : 0.58 ± 10% (Ω)

2. Measure the secondary coil resistance between the high-voltage terminal for the No. 1 and No. 4 cylinders, and between the high-voltage terminals for the No. 2 and No. 3 cylinders.

Standard value : 8.8 ± 15% (KΩ)

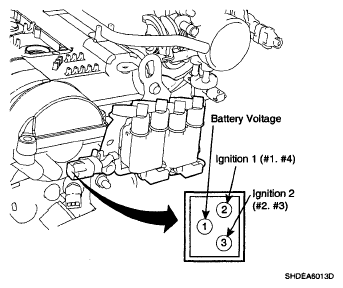

Fig 1: Identifying Ignition Coil

Courtesy of HYUNDAI MOTOR CO.
