Monitor DTC Status

  1. Connect scantool to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF" & FAM : "ON".
  3. Select "Diagnostic Trouble Codes (DTCs)"mode and monitor "DTC Status" parameter.

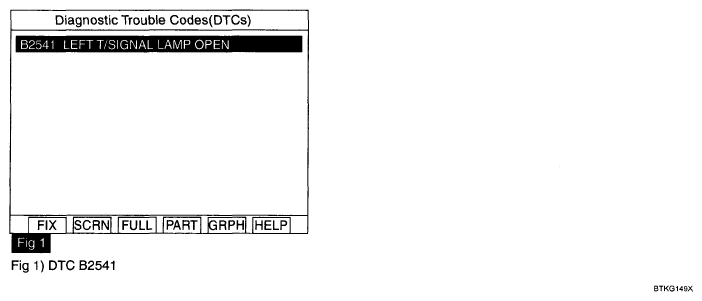

    Fig 1: Diagnosis Tool Display - Diagnostic Trouble Codes (DTCs)
    G05325085Courtesy of HYUNDAI MOTOR CO.
  4. Is the DTC B2541 present?

    YES

    Go to "Inspection and Repair " procedure.

    NO

    Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
