Audio Unit: Replacement: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center facia panel, console lower cover, center air vent, switches, tray and heater control panel (A). (Refer to CRASH PAD ).

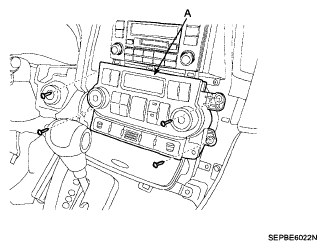

    Fig 1: Identifying Heater Control Panel Screws
    G05324770Courtesy of HYUNDAI MOTOR CO.
  3. Remove the mounting 4 screws then remove the audio unit (A).
    Fig 2: Identifying Audio Unit Screws
    G05324771Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
