Yaw-Rate Sensor & G-Sensor: Description
- The yaw-rate & lateral G sensor is applied for the ESC system.
- The yaw-rate is the angular velocity, when a vehicle turns a corner, and the lateral G is the acceleration to move a vehicle out of the way when cornering.
- The sensor is located in the crash pad lower floor on vehicle.
SPECIFICATION
YAW-RATE SENSOR & G-SENSOR SPECIFICATION
| Description | Specification | Remark | ||
|---|---|---|---|---|
| Nominal supply voltage | 11.5 ~ 12.5 V | |||
| Supply voltage range | 8 ~ 16 V | |||
| Supply current | Max. 120 mA | Typ. 75 mA | ||
| Reference Voltage Output | 2.464 ~ 2.536 V | Typ. 2.5 V | ||
| Operating temperature range | -40 ~ 85 °C | |||
| Yaw-late sensor | Measurement range | +w direction, left turn | Min. 100° /s | Typ. 111° /S |
| -w direction, right turn | Min. 100° /s | Typ. 111° /S | ||
| Non-linearity | -1 ~ 1 % | |||
| Offset (within life, within operating temperature) | 3.75° /S | |||
| Upper cut-off frequency | Min. 45 Hz | Typ. 60 Hz | ||
| Lateral G sensor | Measurement range | +y direction, left turn | Min. 1.8 g | Typ. 2 g |
| -y direction, right turn | Min. -1.8 g | Typ. 2 g | ||
| Non-linearity | -4-4 % | |||
| Offset (within life, within operating temperature) | -0.09 ~ 0.09 g | |||
| Upper cut-off frequency | Min. 20 Hz | Typ. 40 Hz | ||

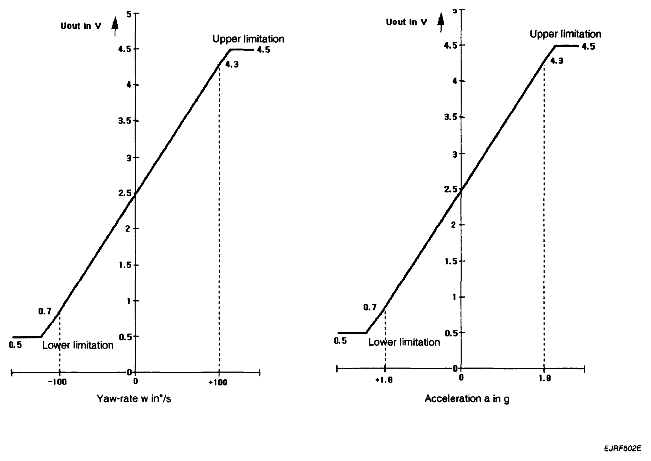

OUTPUT CHARACTERISTIC
CIRCUIT DIAGRAM (YAW-RATE & LATERAL G SENSOR)
