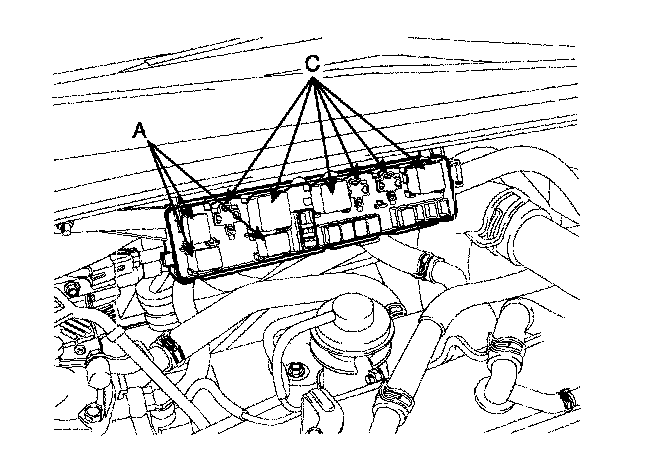

Relay Box (Engine Compartment)

Relay Box (Engine Compartment)

INSPECTION

FUSE
1. Be sure there is no play in the fuse holders, and that the fuses are held securely.
2. Are the fuse capacities for each circuit correct?
3. Are there any blown fuses?
If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always determine why the fuse blew first and completely eliminate the problem before installing a new fuse.

RELAY
1. Be sure that the relays are held the each module securely.



















2. Are the relay types for each circuit correct?
3. If system of some relay is not operate accurately, replace with a new one and check the system.
