Removal and Replacement

ALTERNATOR

REMOVAL
1. Disconnect the battery negative terminal first, then the positive terminal.
2. Disconnect the alternator connector, and remove the cable from alternator "B" terminal.
3. Remove the drive belt.

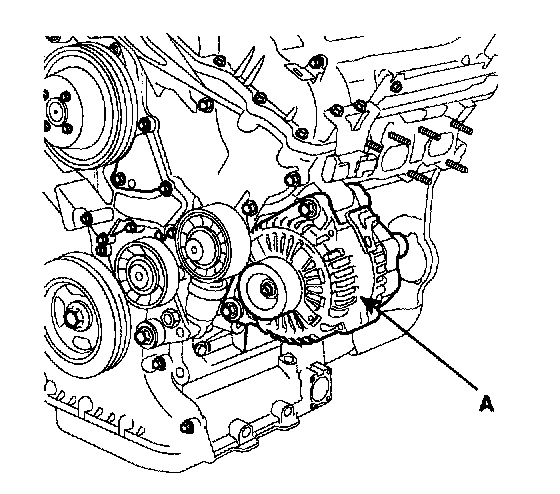

4. Pull out the through bolts and then remove the alternator (A).
5. Installation is the reverse of removal.
