Antitheft System - Alarm System Self-Activates

Group BODY

Number 09-BE-026

Date SEPTEMBER, 2009

Model
GENESIS(BH)
GENESIS(BK)
TIBURON(GK)
SONATA(NF)
TUCSON(JM)
ENTOURAGE(EP)
ELANTRA(HD)

Subject
ALARM SELF ACTIVATES - HOOD SWITCH PAD REPLACEMENT

DESCRIPTION:

The vehicle alarm system may intermittently sound due to light contact of the hood switch pad with the hood switch.

This bulletin provides instructions to replace the hood switch pad with a revised part.

APPLICABLE VEHICLES:
Model: Genesis(BH), Genesis Coupe(BK), Tiburon(GK), Sonata(NF), Tucson(JM), Entourage(EP), ELANTRA(HD)

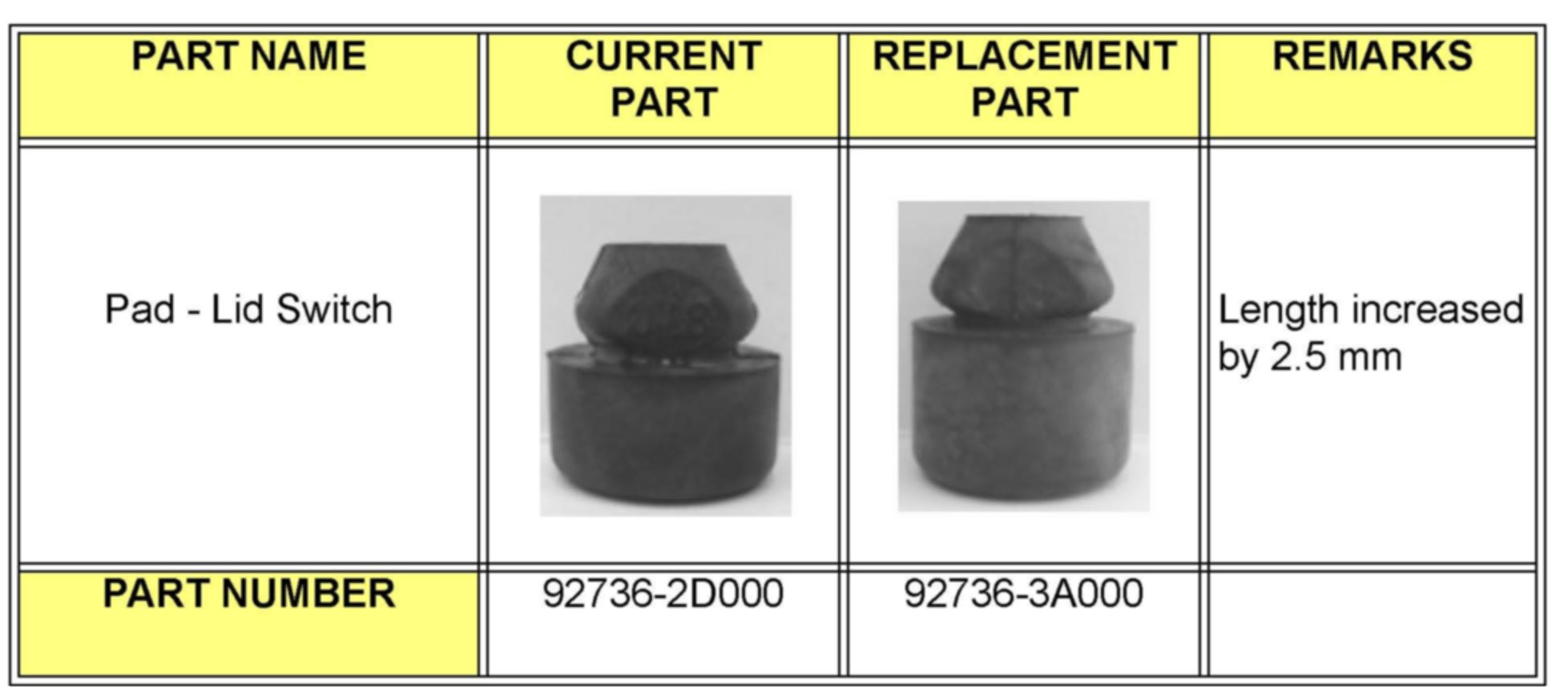

PARTS INFORMATION

SERVICE PROCEDURE

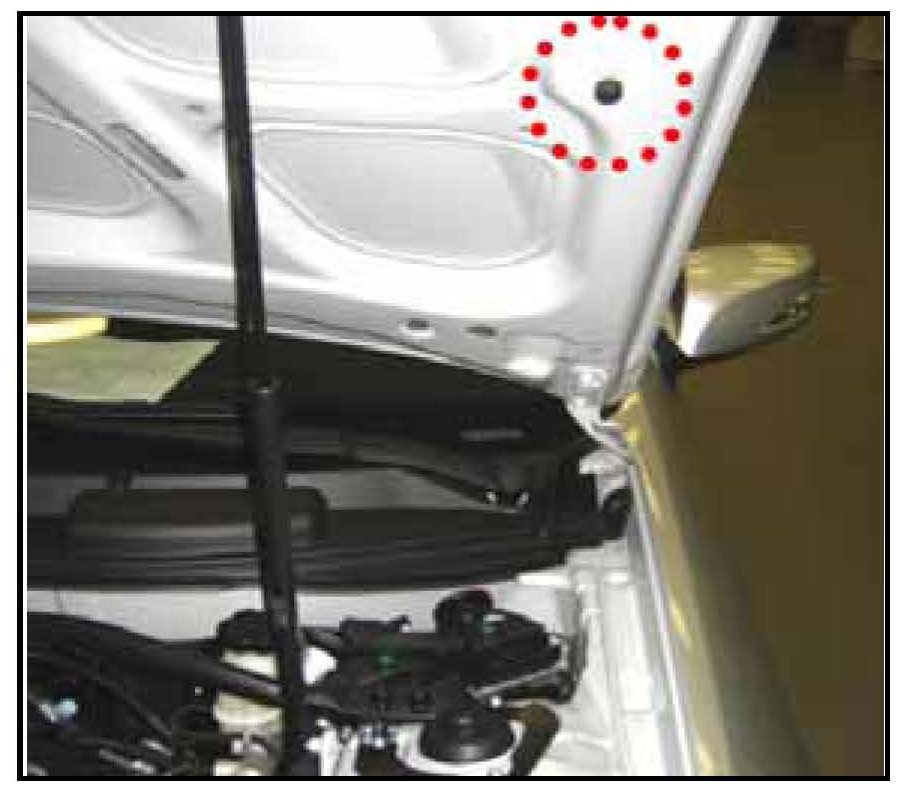

1. Open the hood and remove the rubber switch pad.

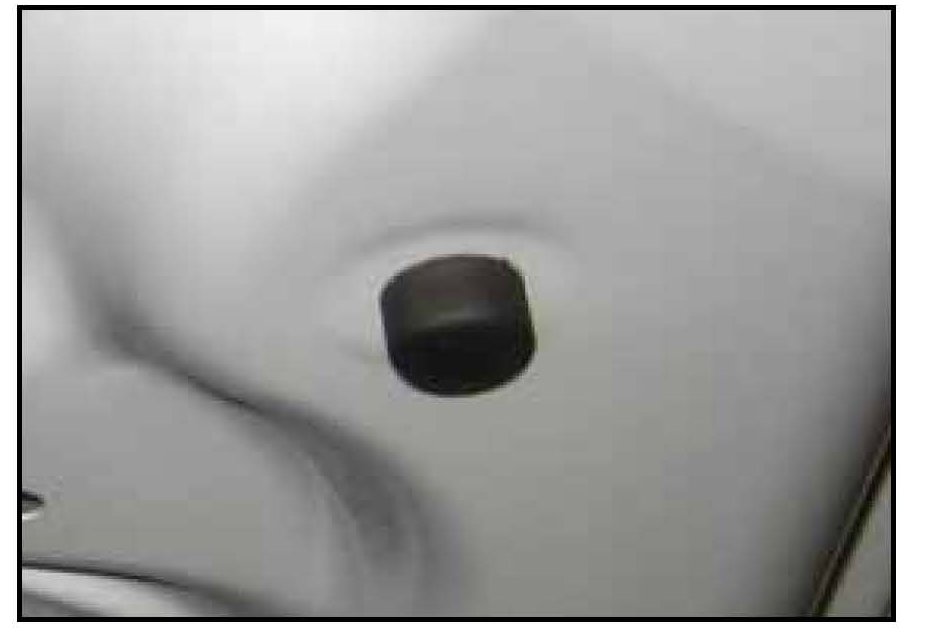

2. Install the new switch pad.

3. Close the hood and press the LOCK button on the transmitter. Verify that all the doors lock and the hazard lights flash one time.

4. Press the LOCK button on the transmitter two times to confirm the "Horn Answer Back" feature is operational.

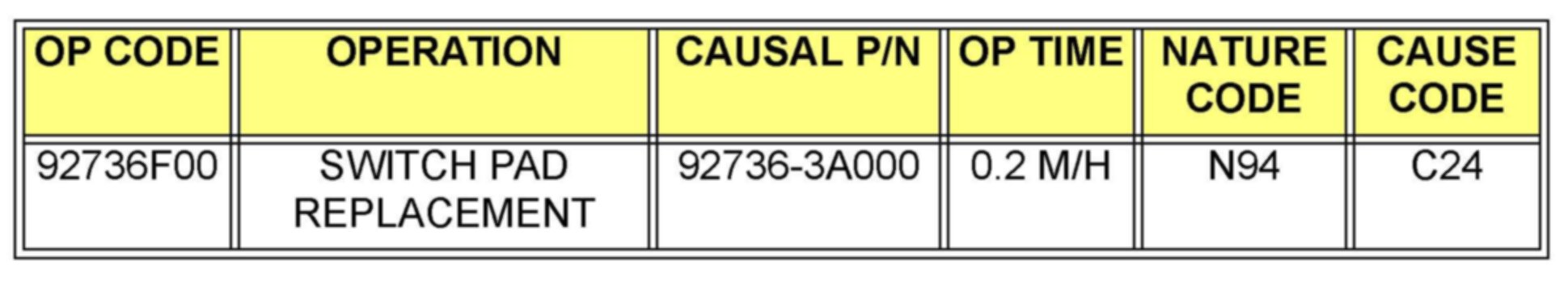

WARRANTY INFORMATION
