Esp/ESC System: Components

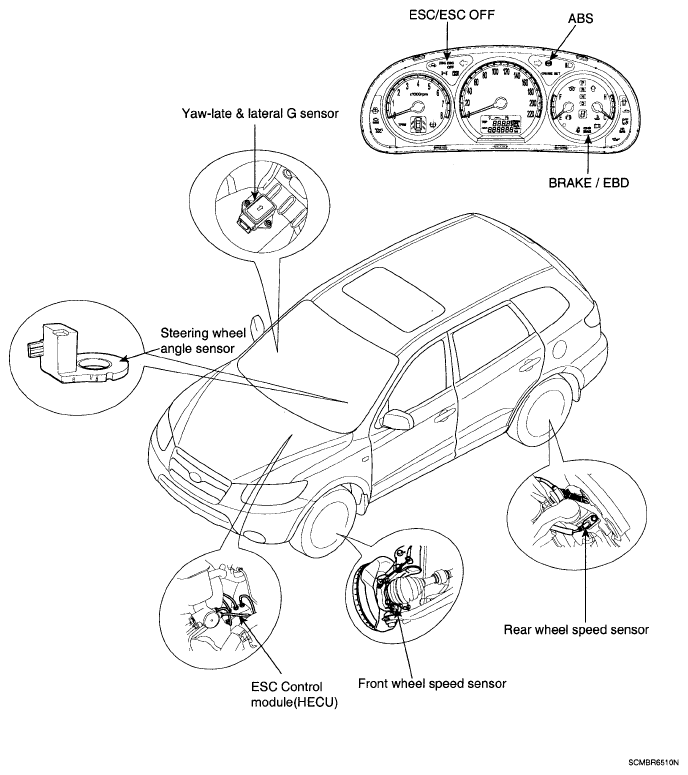

Fig 1: Identifying ESC (Electronic Stability Control) Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
