Oil Pan, Engine

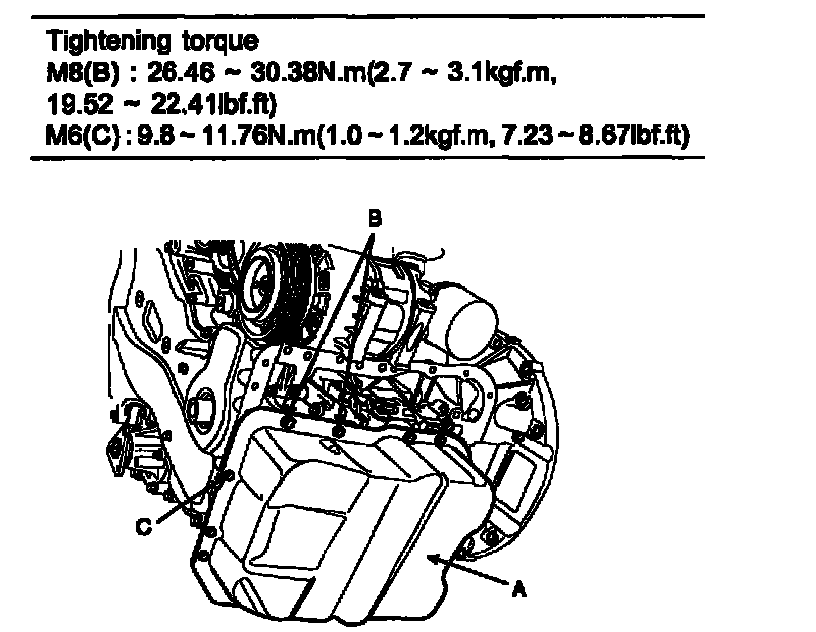

Oil Pan Bolts





Uniformly tighten the bolts in several passes.

M8 (B) 26.46 - 30.38 Nm (2.7 - 3.l kgf.m, 19.52 - 22.41 ft. lbs.)
M6 (C) 9.8 - 11.76 Nm (1.0 - 1.2 kgf.m, 7.23 - 8.67 ft. lbs.)
