Engine Control Module

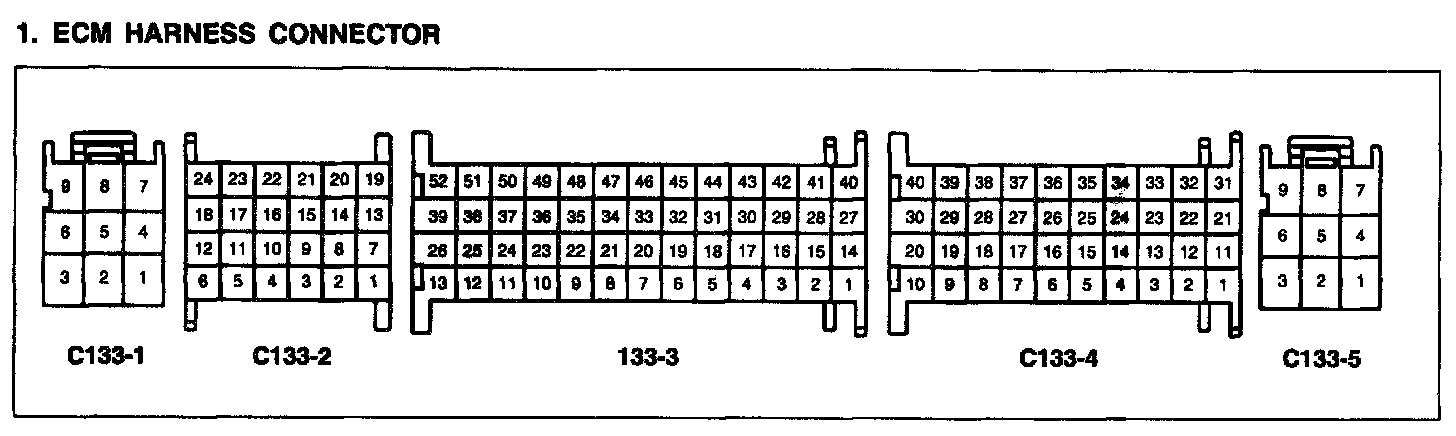

ECM Harness Connector:
ECM HARNESS CONNECTOR

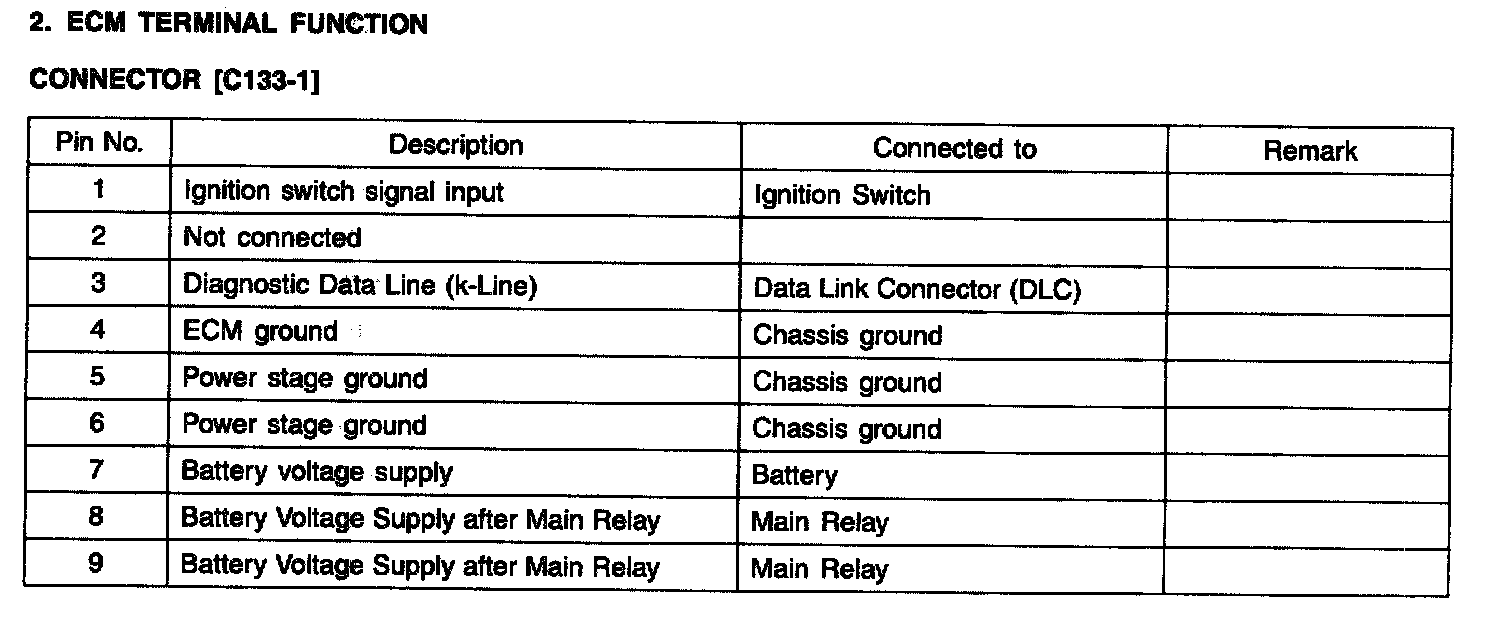

ECM Terminal Function - Connector (C133-1):
ECM TERMINAL FUNCTION - CONNECTOR [C133-1]

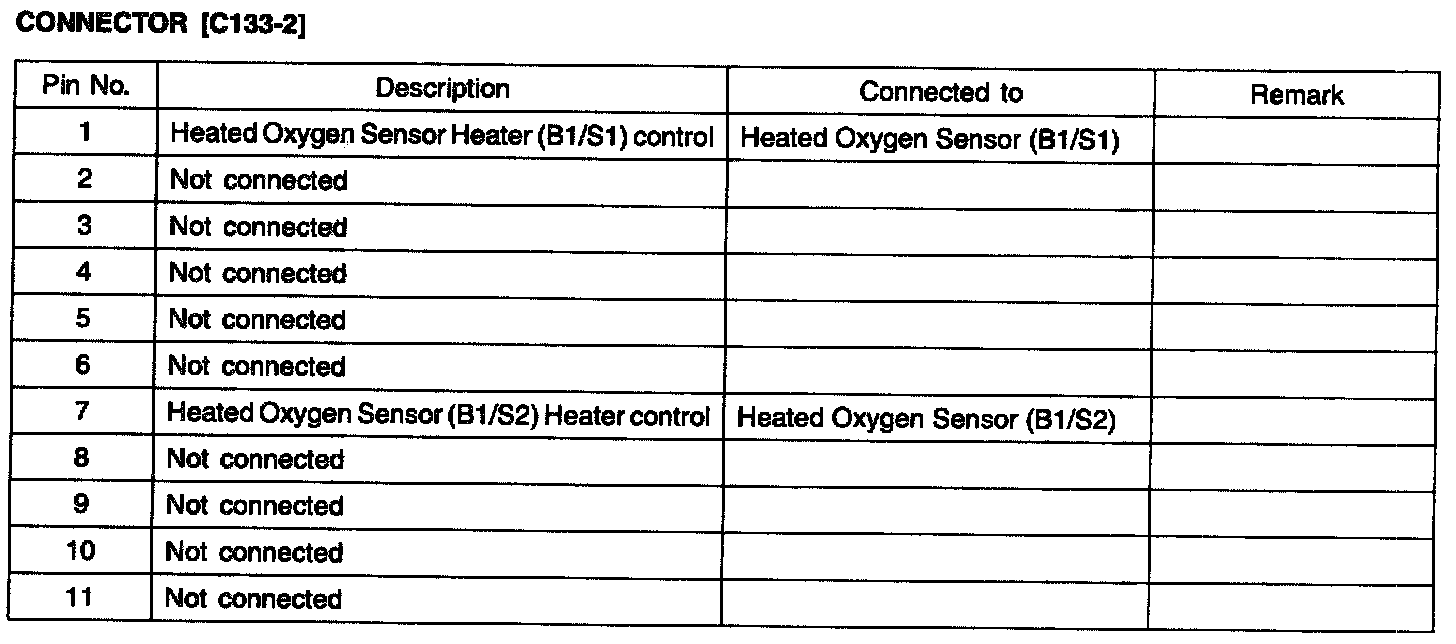

ECM Terminal Function - Connector (C133-2) Part 1:
ECM Terminal Function - Connector (C133-2) Part 2:
ECM TERMINAL FUNCTION - CONNECTOR [C133-2]

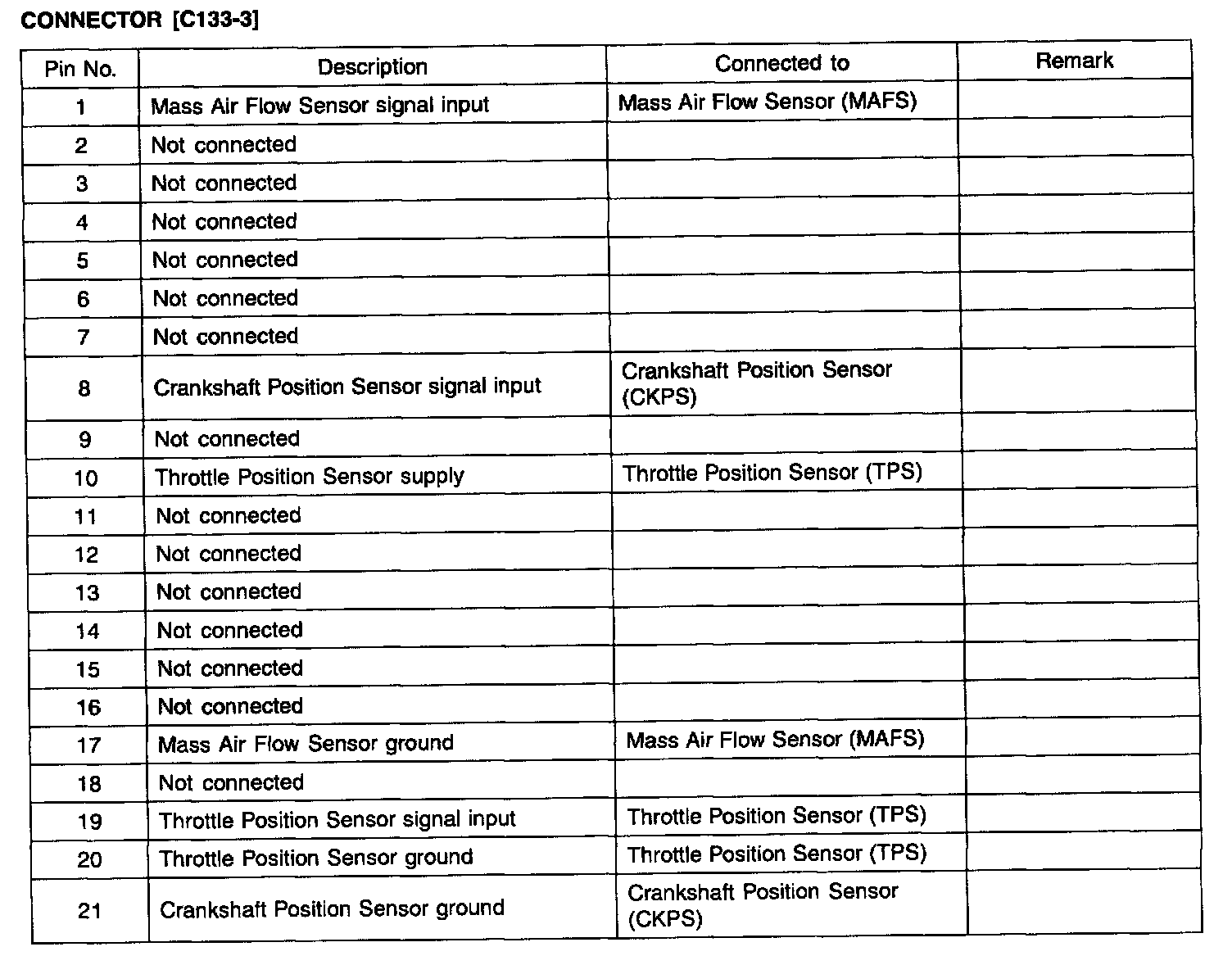

ECM Terminal Function - Connector (C133-3):

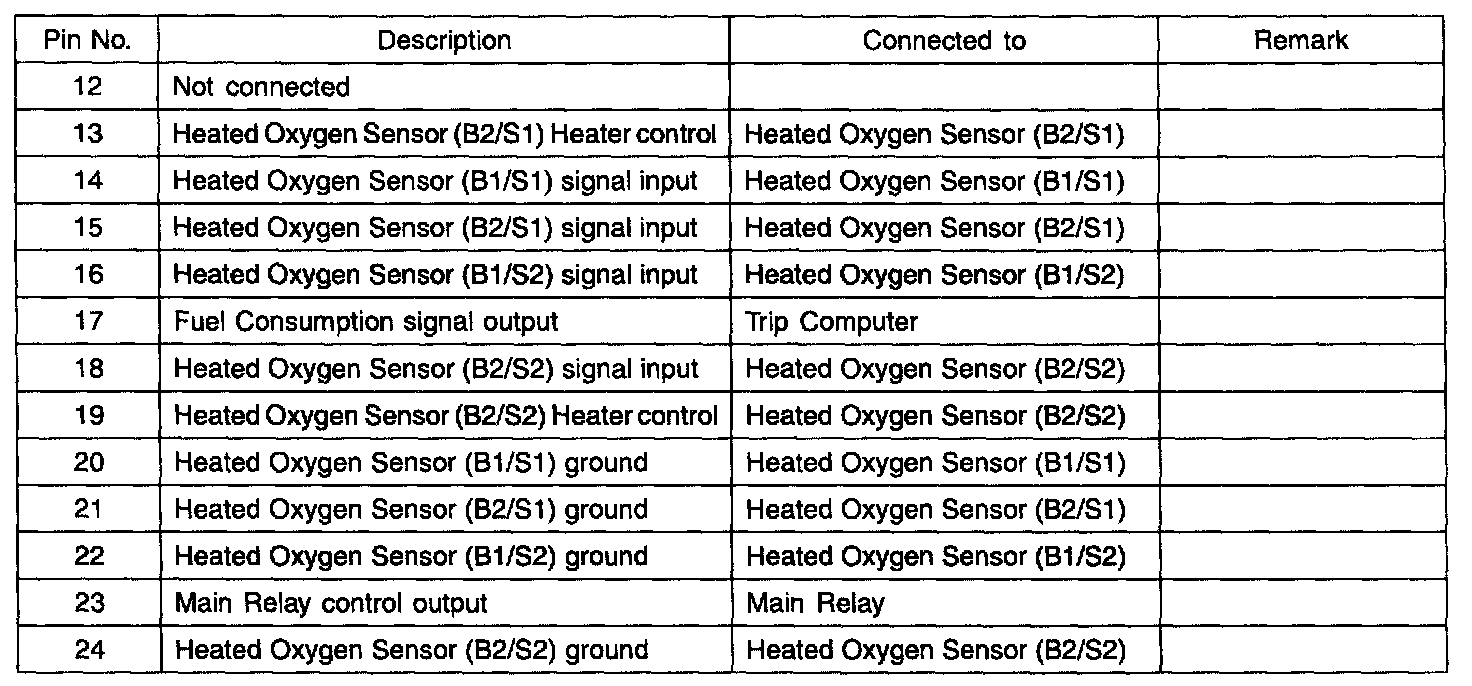

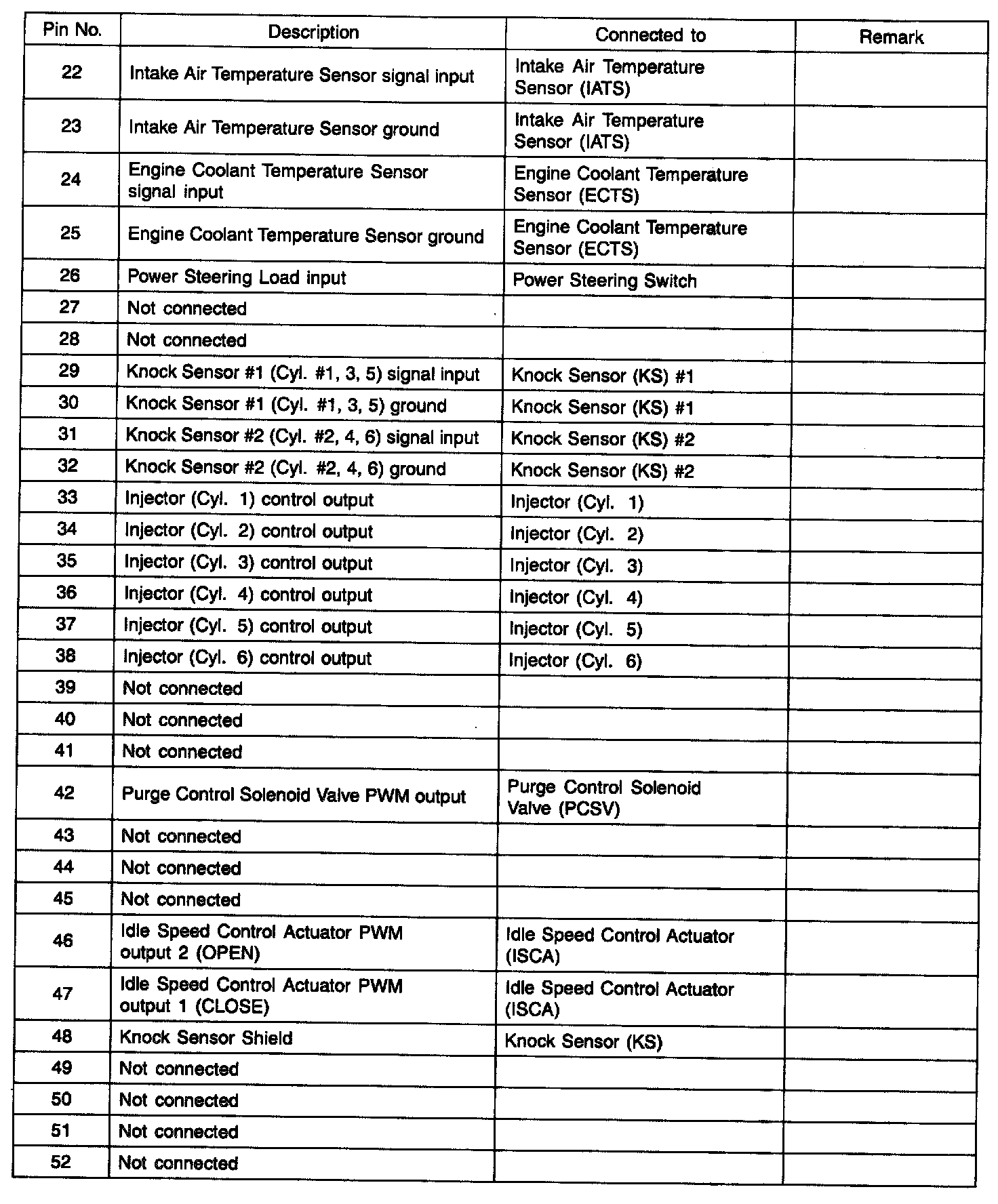

ECM Terminal Function - Connector (C133-3) Part 2:
ECM TERMINAL FUNCTION - CONNECTOR [C133-3]

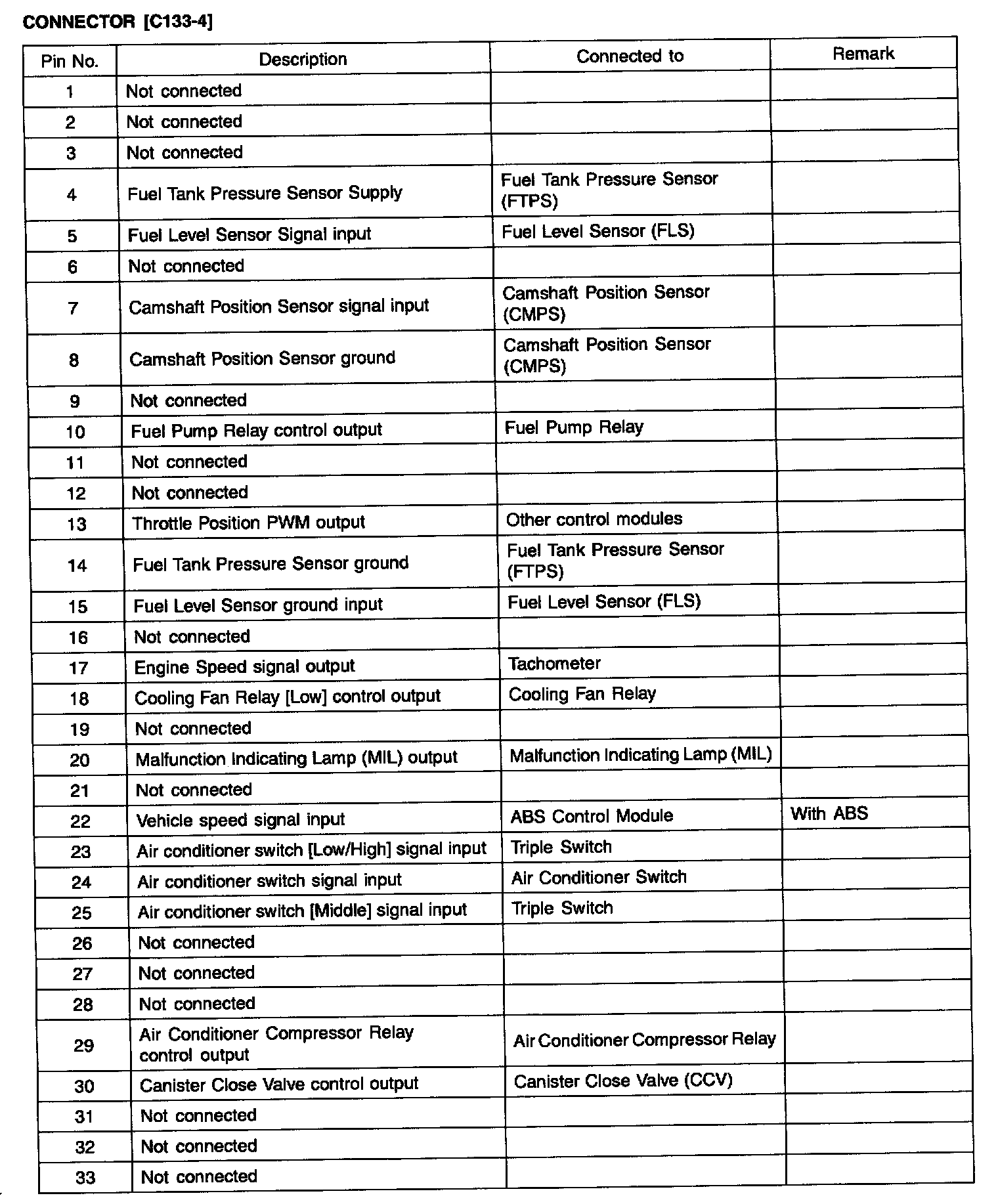

ECM Terminal Function - Connector (C133-4) Part 1:

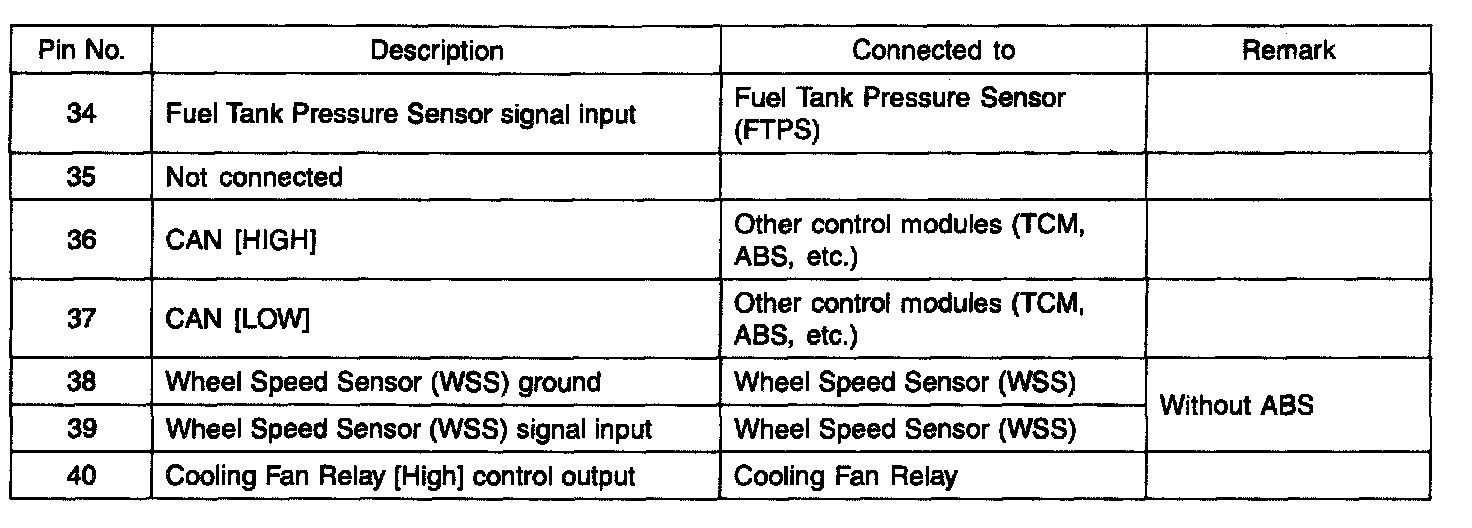

ECM Terminal Function - Connector (C133-4) Part 2:
ECM TERMINAL FUNCTION - CONNECTOR [C133-4]

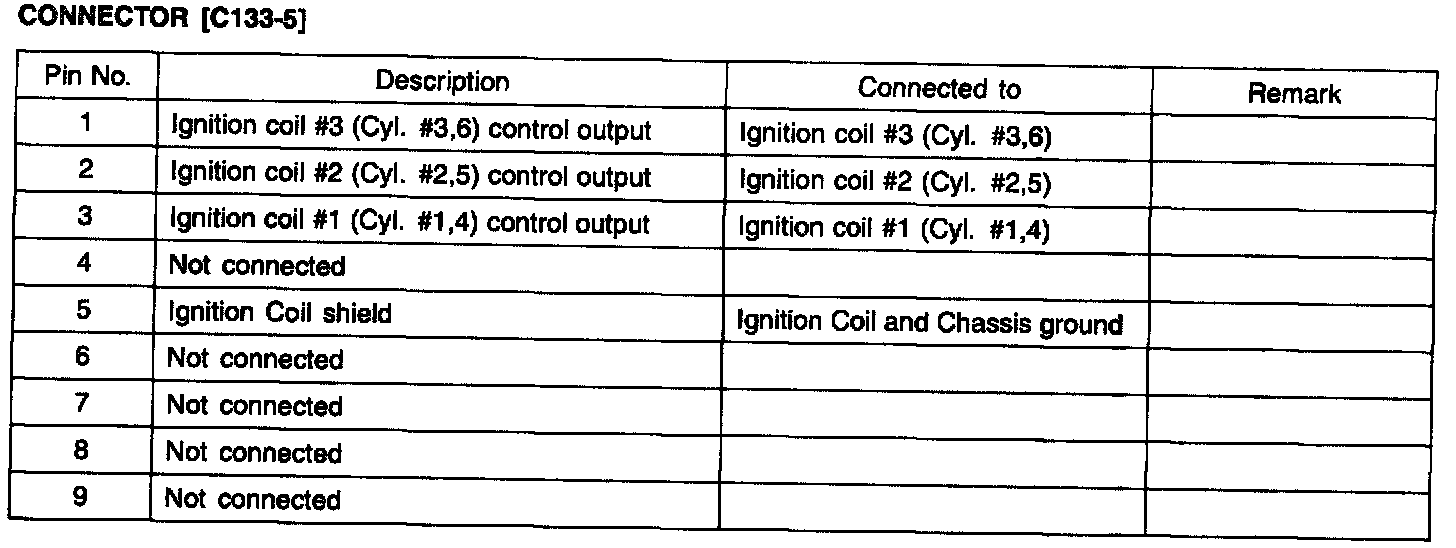

ECM Terminal Function - Connector (C133-5):
ECM TERMINAL FUNCTION - CONNECTOR [C133-5]
ECM Terminal Input/Output Signal - Connector (C133-1):
ECM TERMINAL FUNCTION - CONNECTOR [C133-1]

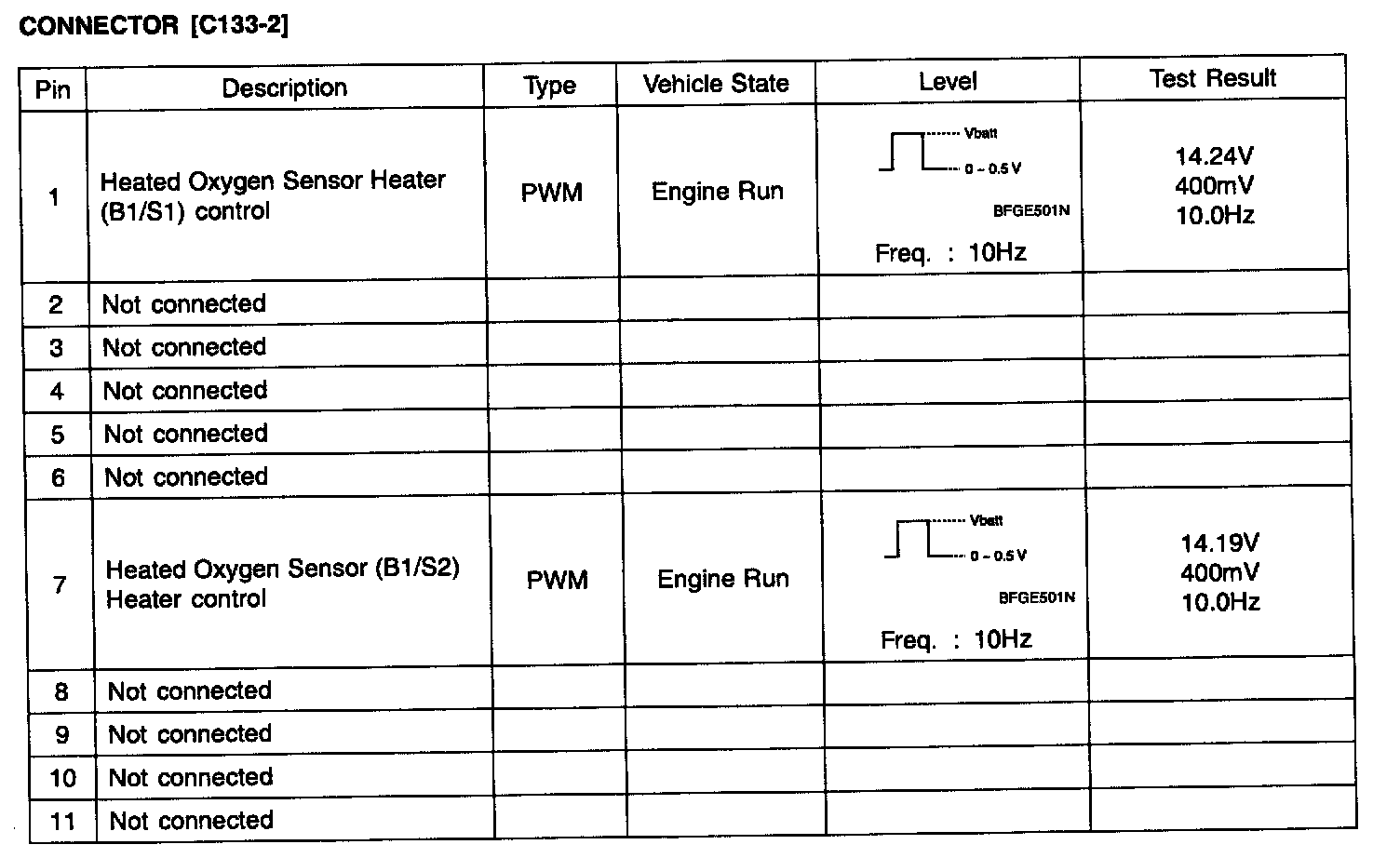

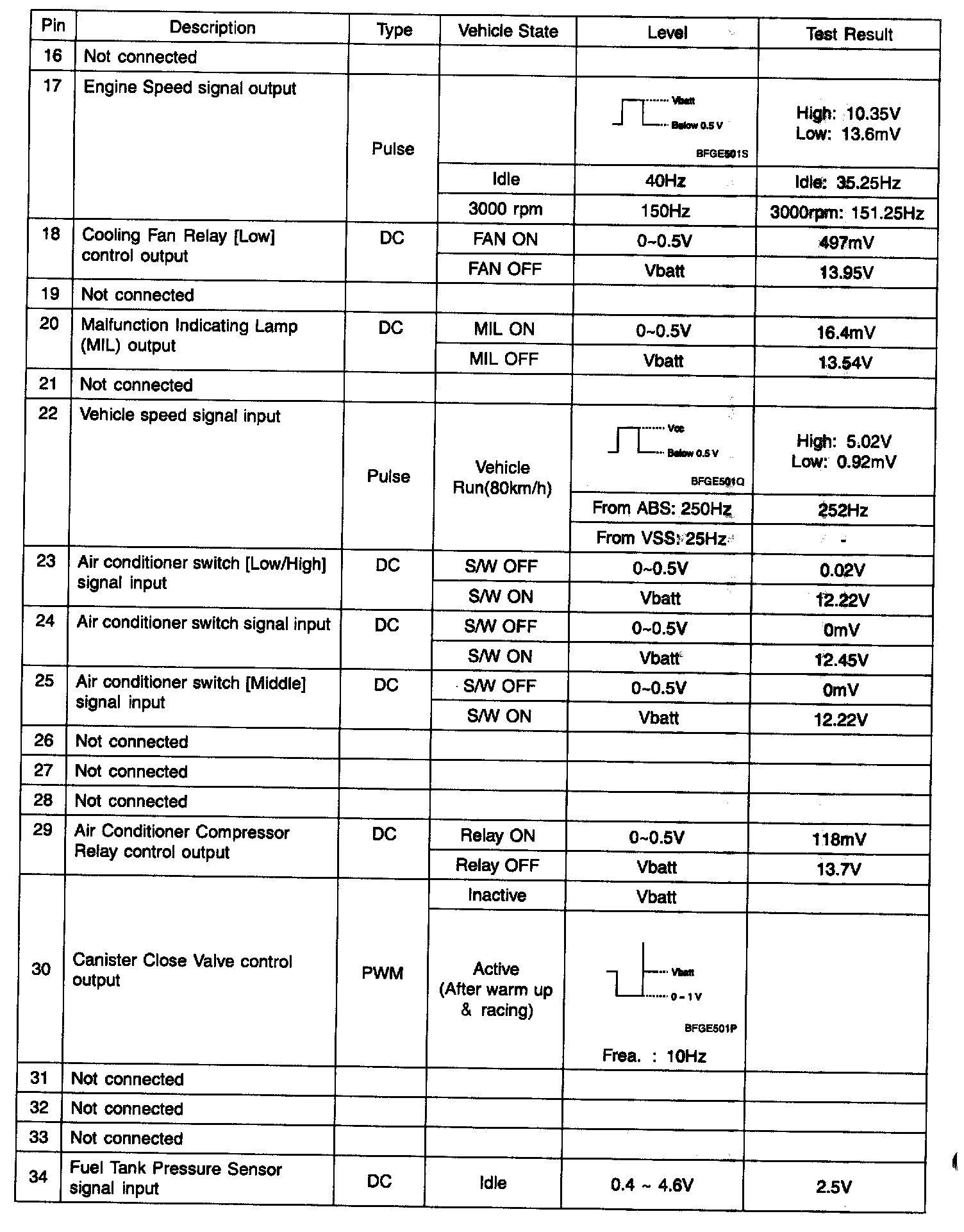

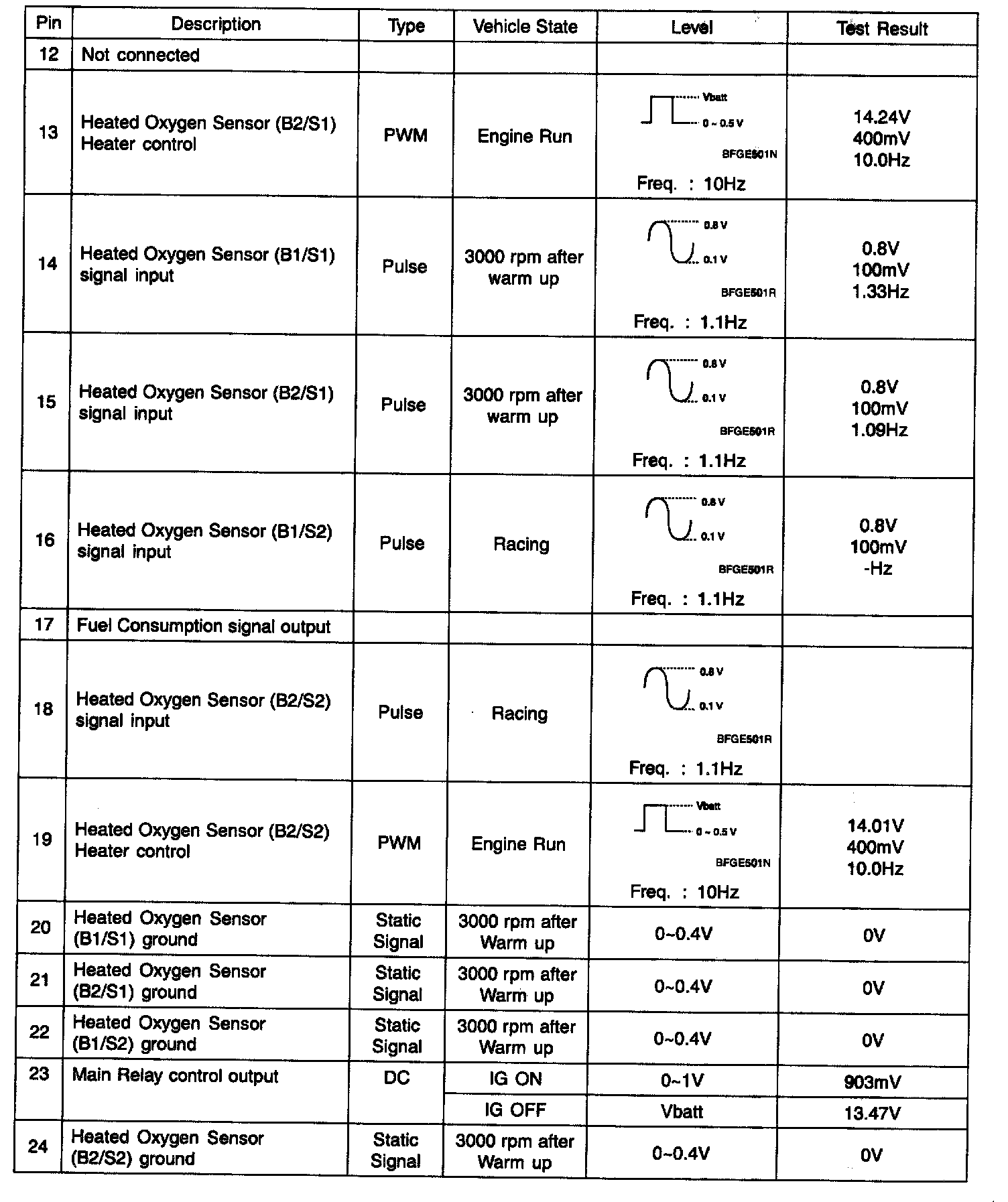

ECM Terminal Input/Output Signal - Connector (C133-2) Part 1:

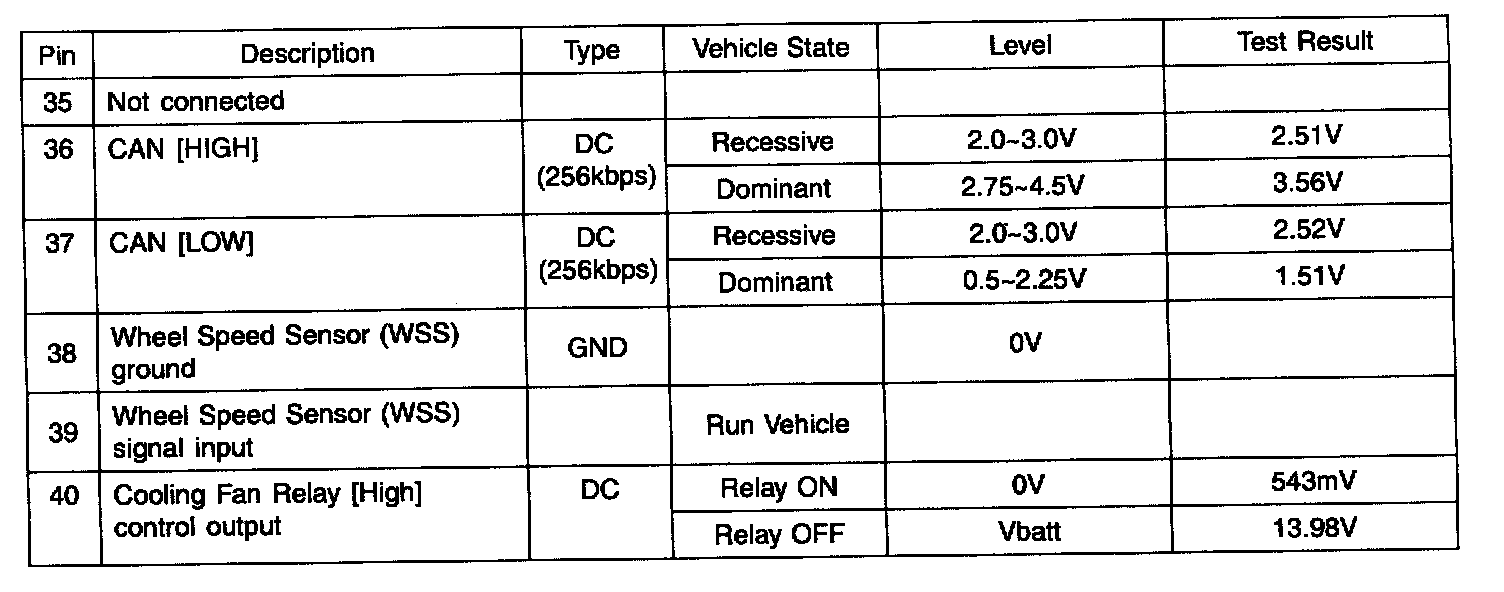

ECM Terminal Input/Output Signal - Connector (C133-2) Part 2:
ECM TERMINAL FUNCTION - CONNECTOR [C133-2]

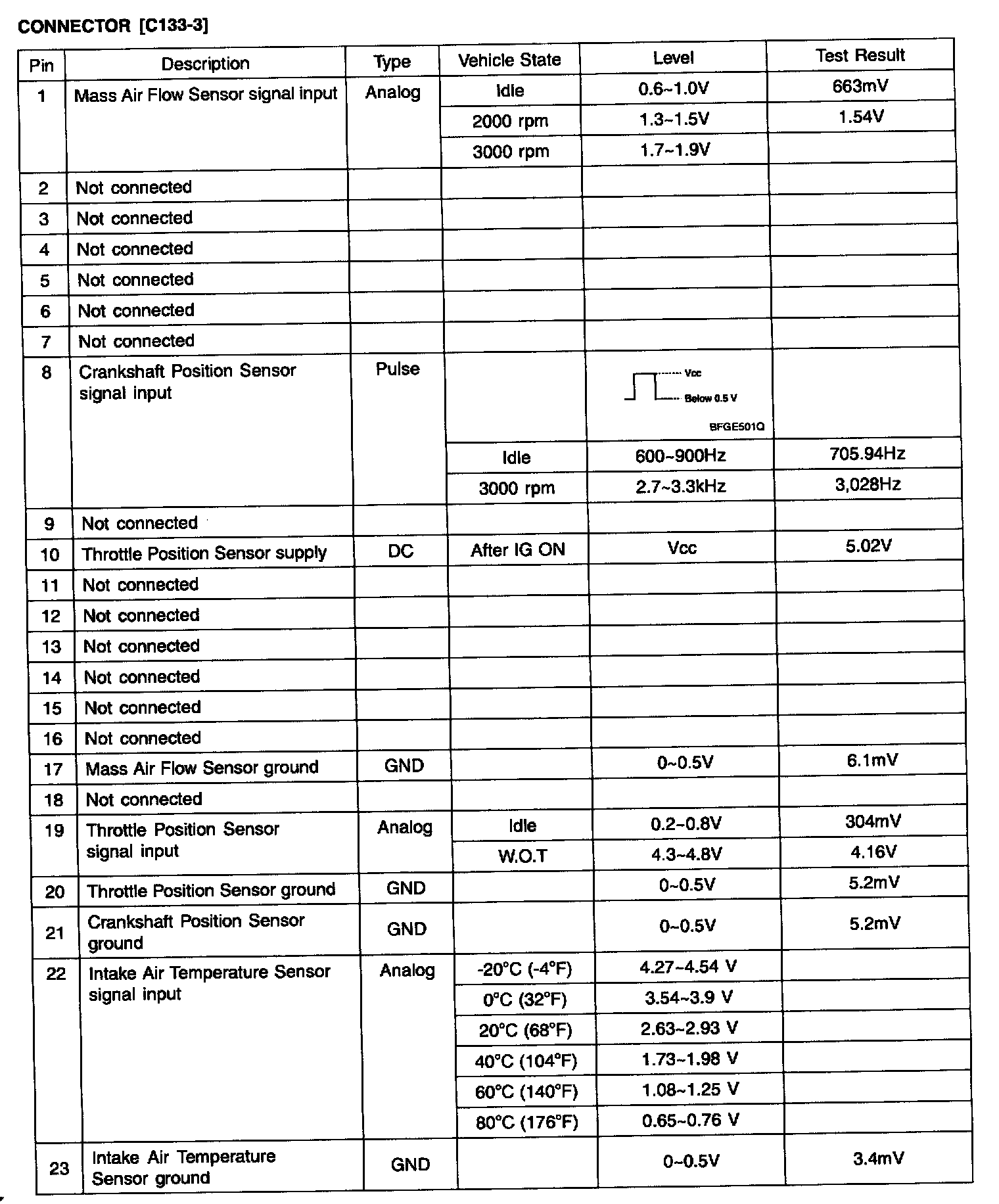

ECM Terminal Input/Output Signal - Connector (C133-3) Part 1:
ECM Terminal Input/Output Signal - Connector (C133-3) Part 2:

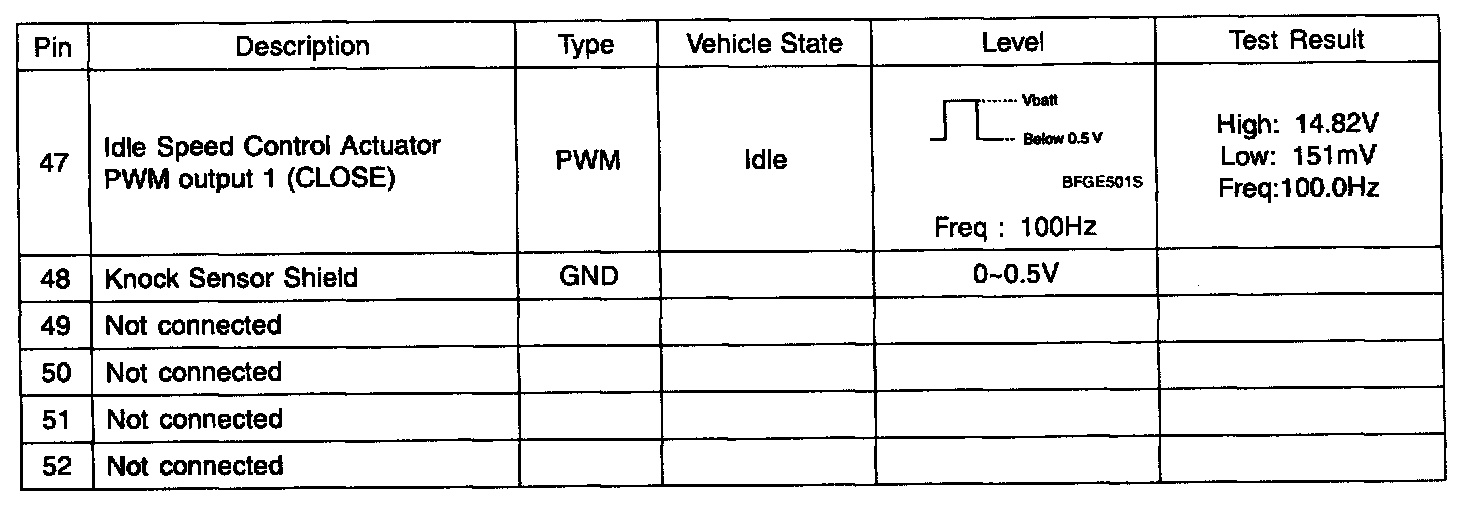

ECM Terminal Input/Output Signal - Connector (C133-3) Part 3:
ECM TERMINAL FUNCTION - CONNECTOR [C133-3]

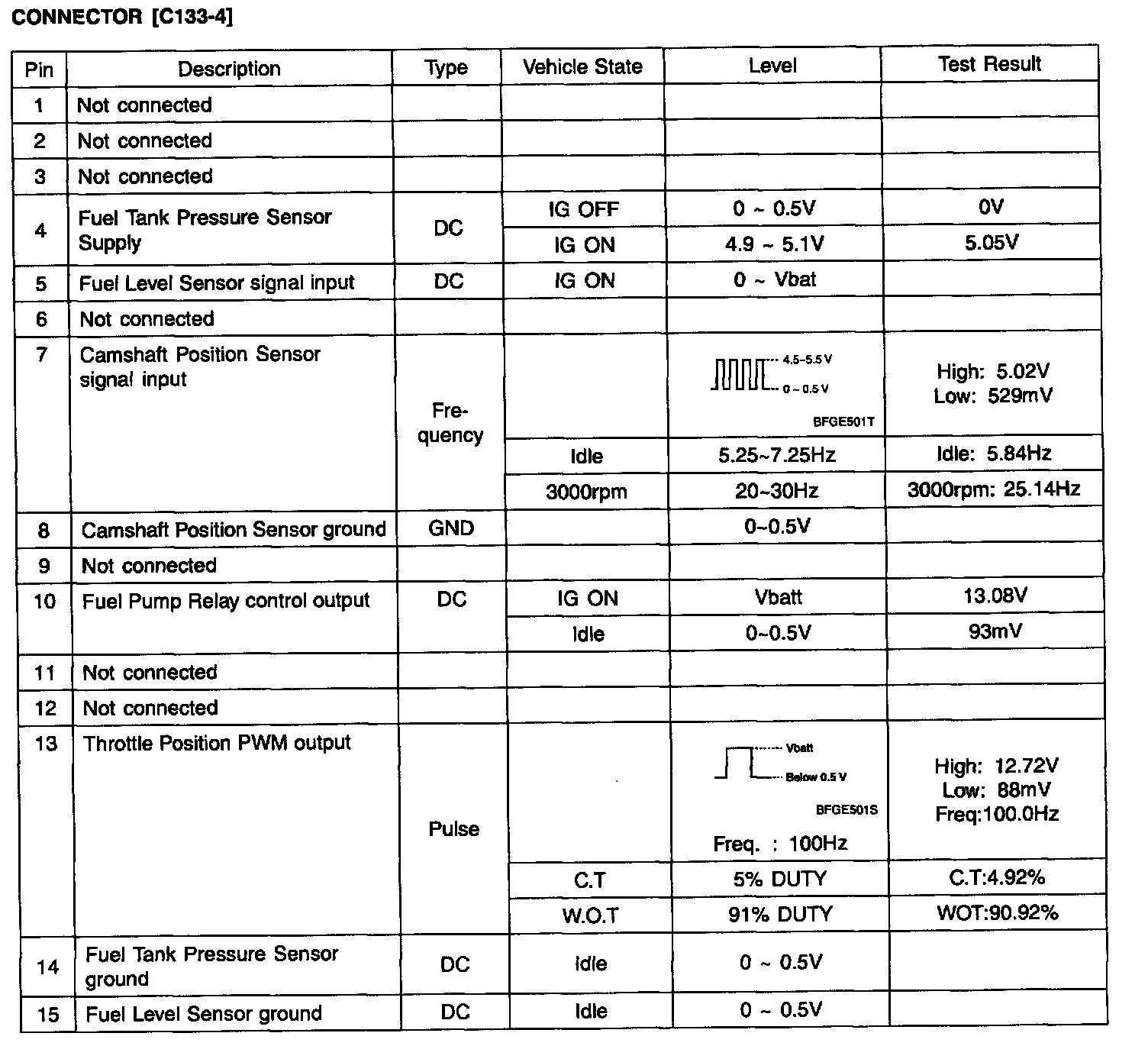

ECM Terminal Input/Output Signal - Connector (C133-4) Part 1:
ECM Terminal Input/Output Signal - Connector (C133-4) Part 2:
ECM Terminal Input/Output Signal - Connector (C133-4) Part 3:
ECM TERMINAL FUNCTION - CONNECTOR [C133-4]

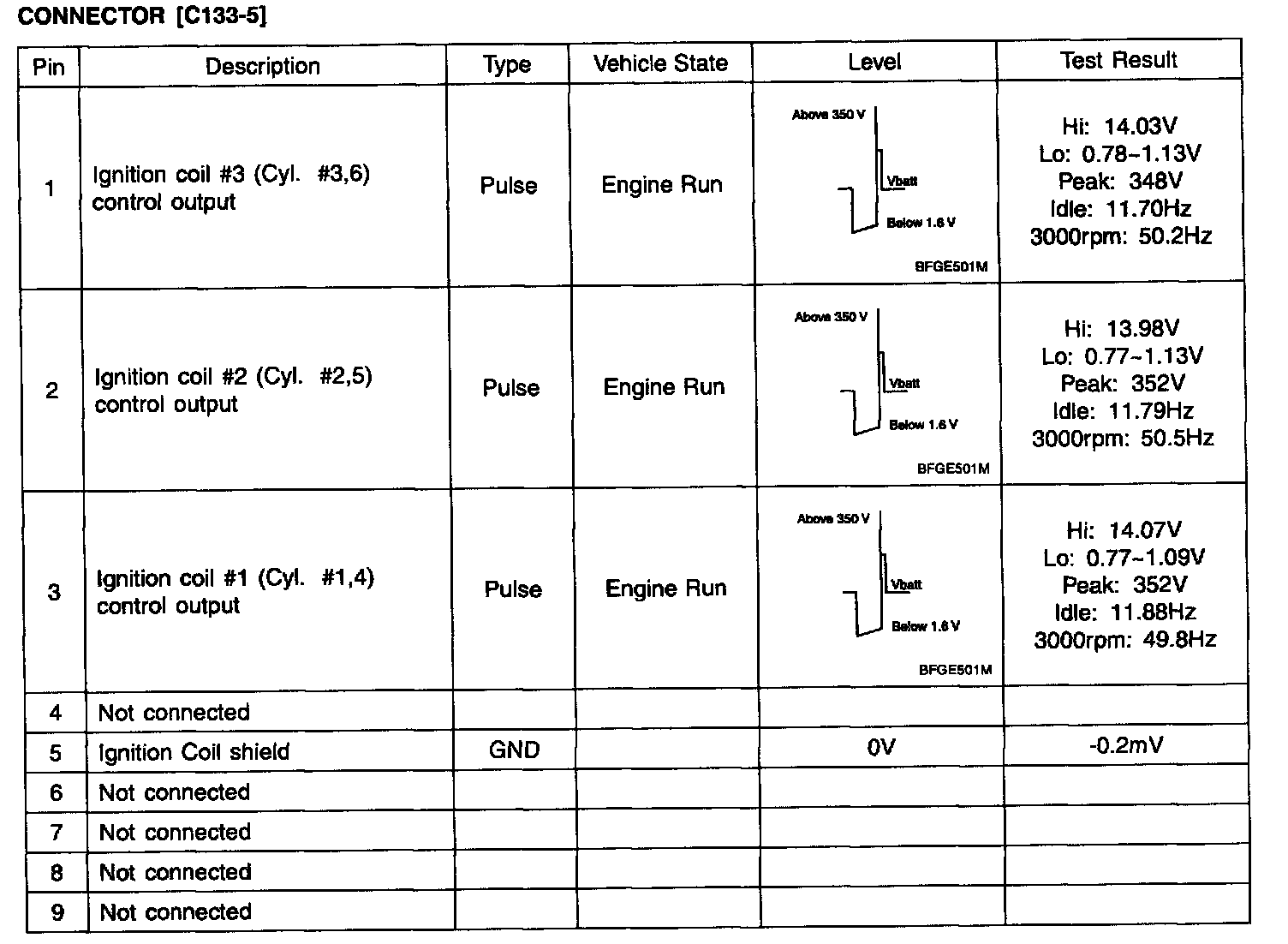

ECM Terminal Input/Output Signal - Connector (C133-5):
ECM TERMINAL FUNCTION - CONNECTOR [C133-5]
