Schematic Diagram

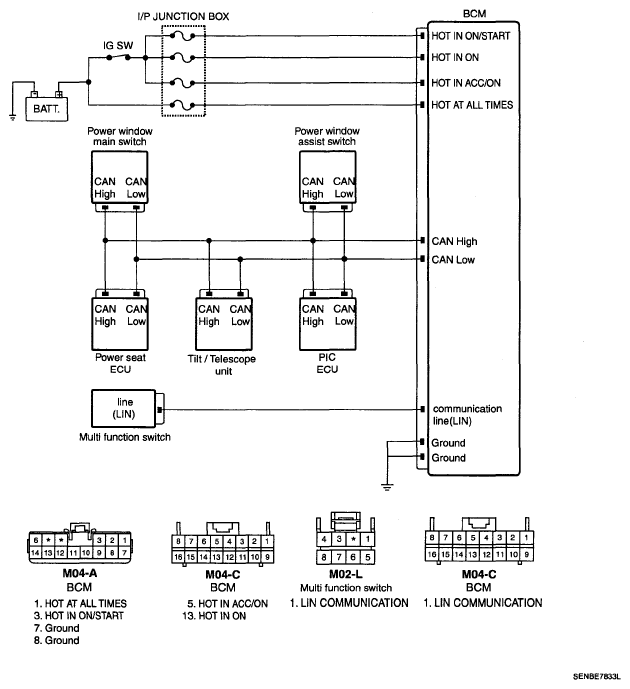

Fig 1: LIN Reception ERROR For M/F SW - Schematic Diagram
G05331858Courtesy of HYUNDAI MOTOR CO.
