Esp/ESC Control Module: Components

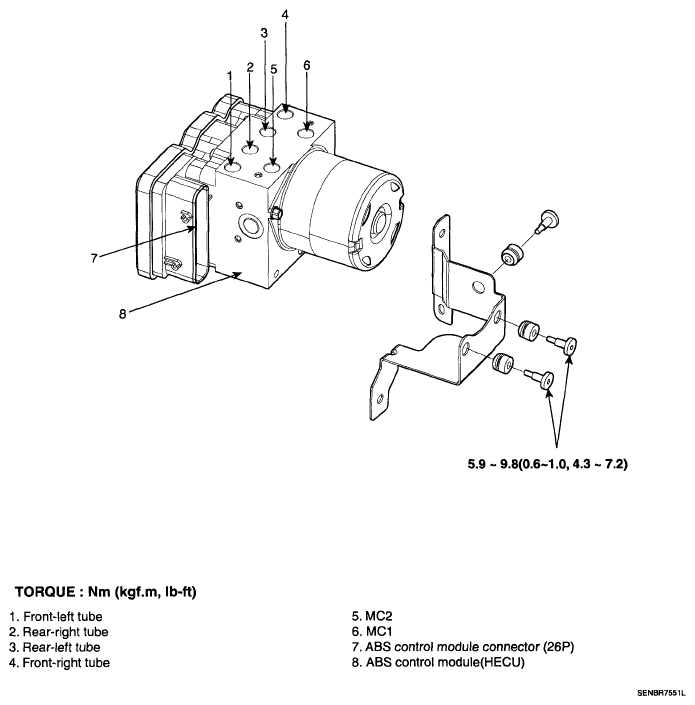

Fig 1: ESP/ESC Control Module Replacement Components With Torque Specifications
G05331530Courtesy of HYUNDAI MOTOR CO.
