Ignition System: Installation: Inspection

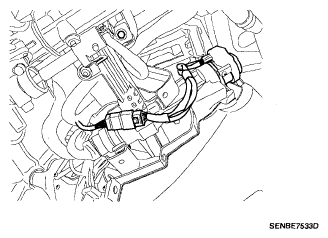

Fig 1: Identifying Ignition Switch Connector And Key Warning Switch Connector

Courtesy of HYUNDAI MOTOR CO.

Disconnect the ignition switch connector and key warning switch connector from under the steering column.
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

Fig 2: Terminals Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
