Home >> Hyundai >> 2008 >> Accent L4-1.6L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Relay >> Locations
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Power Window Relay: Locations

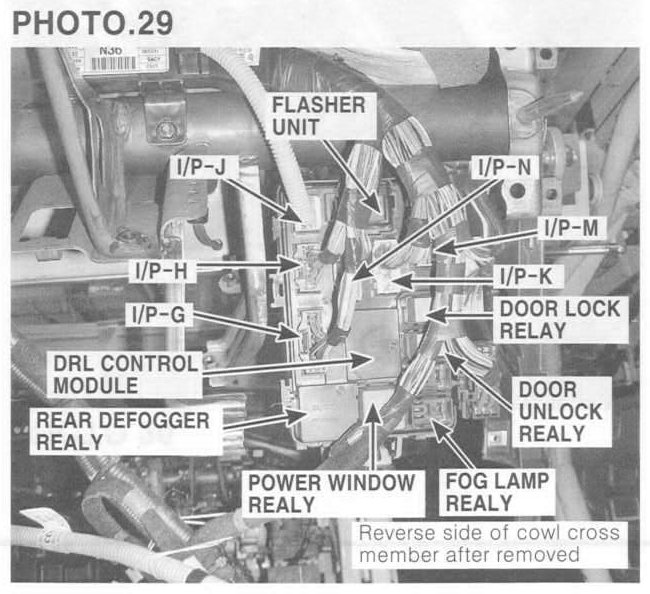

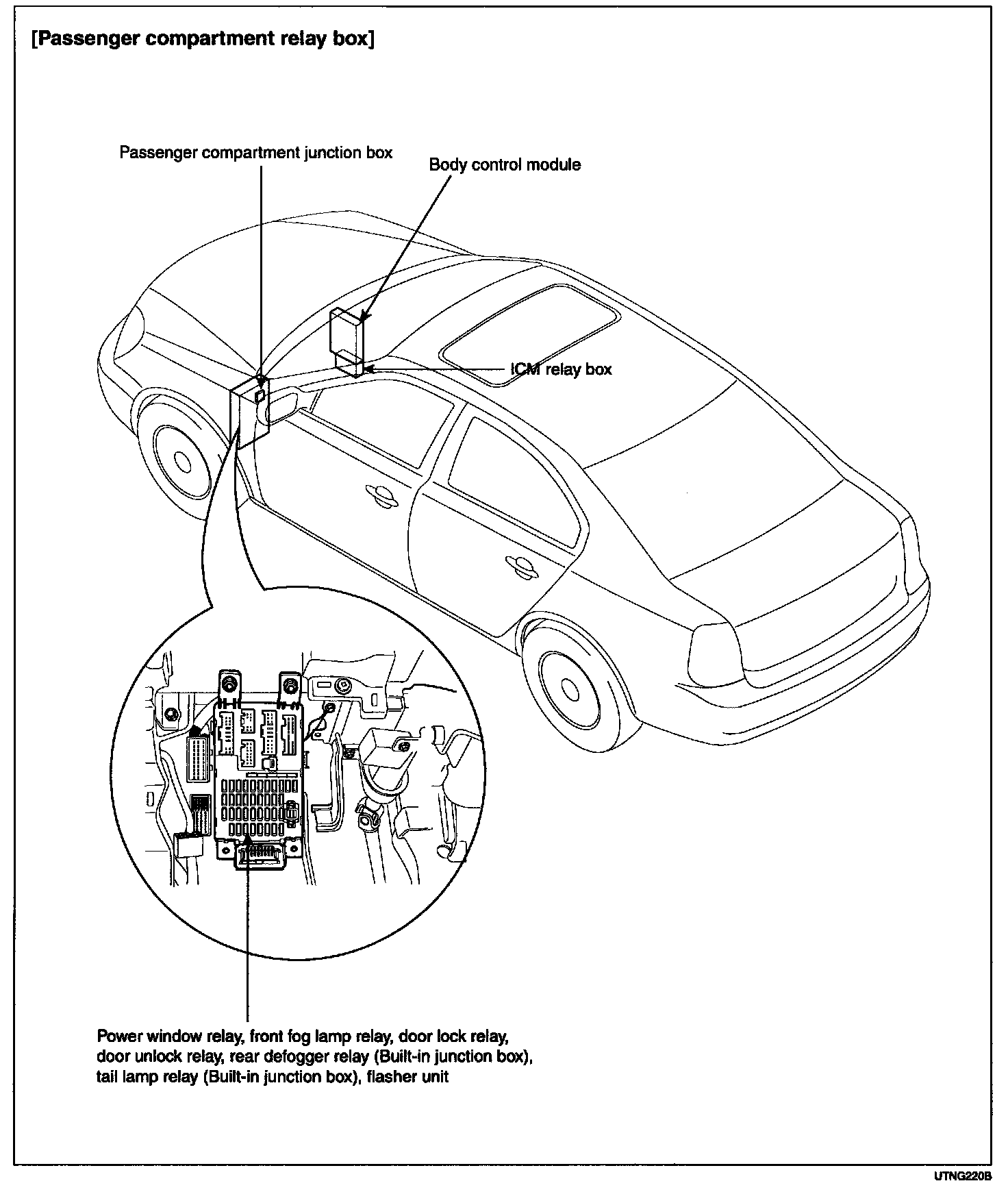

Fuses And Relays (Passenger Compartment Relay Box) - Component Location:



Power Windows - Component Location:
