Chart 8
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Chart 8

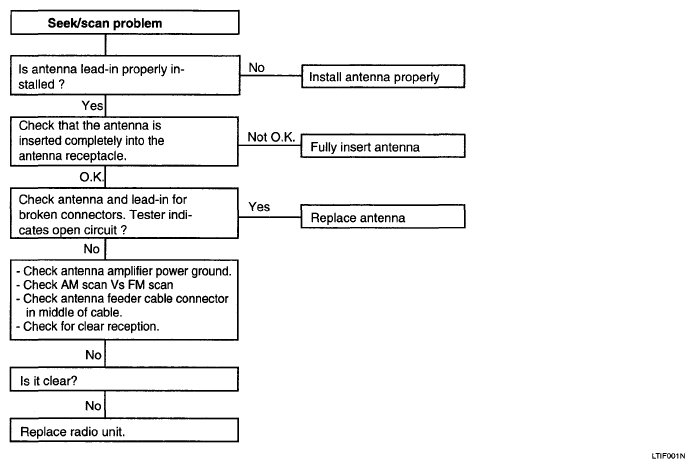

Fig 1: Symptom Troubleshooting Flow Chart 8
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
