Front Hub/Knuckle: Components

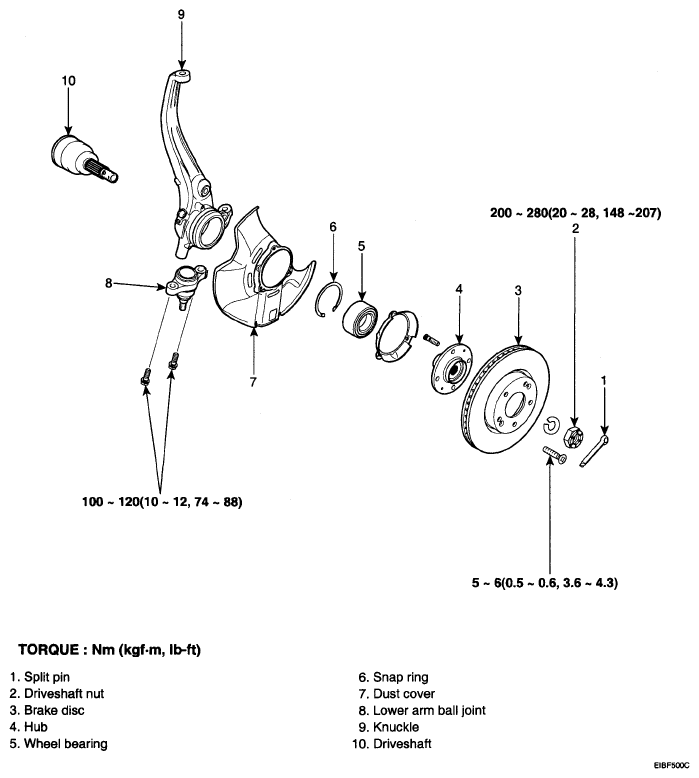

Fig 1: Front Hub/Knuckle Replacement Components With Torque Specifications
G04880306Courtesy of HYUNDAI MOTOR CO.
