Relay Box (Passenger Compartment)

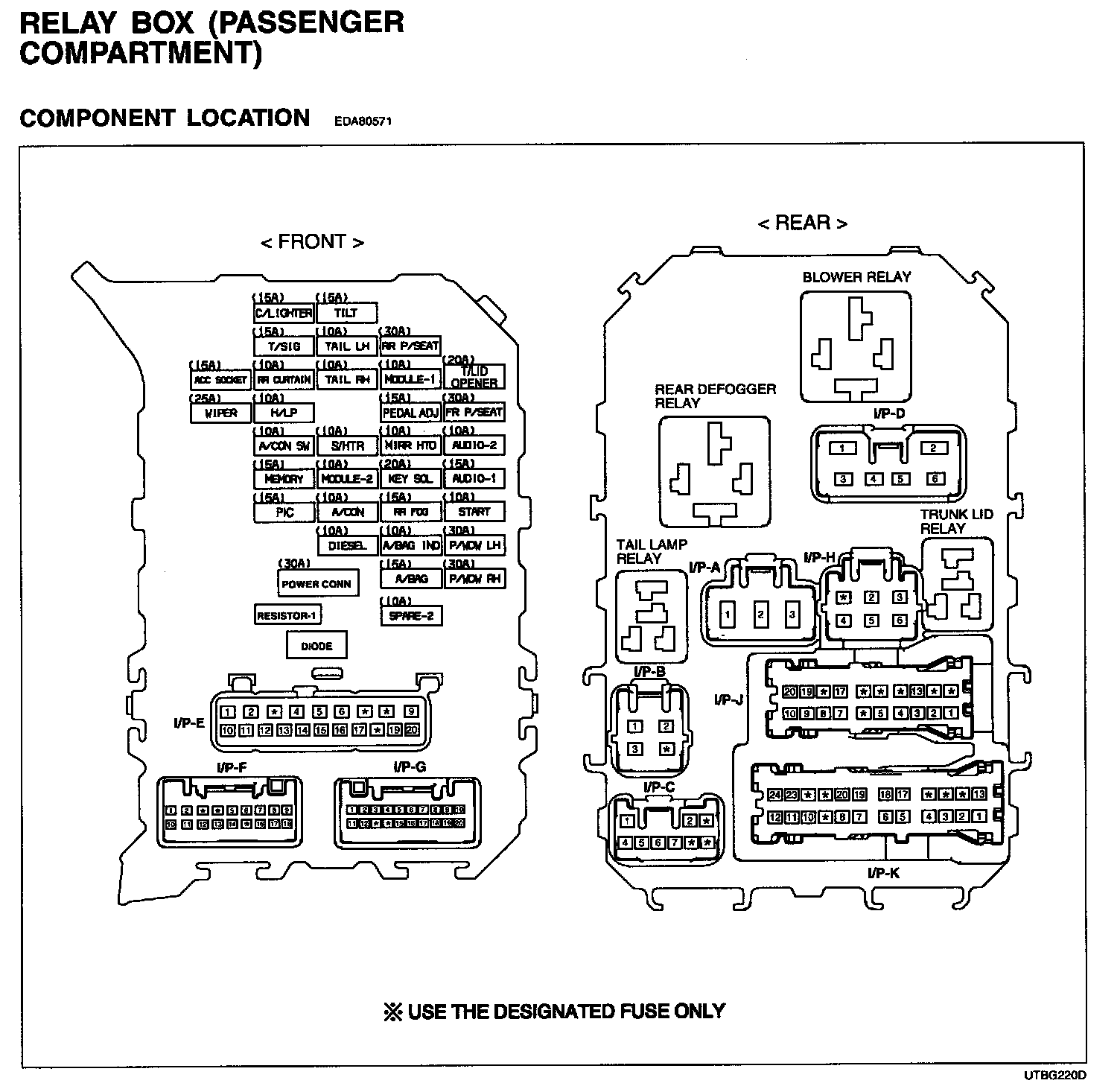

Relay Box (Passenger Compartment) - Component Location:



Relay Box (Passenger Component) - Component Location:
