Power Window Main Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim. (Refer to the FRONT DOOR )
Disconnect the 16P connector from the switch.

Fig 1: Identifying Power Window Main Switch
Courtesy of HYUNDAI MOTOR CO.
Check for continuity between the terminals in each switch position according to the table, if the continuity condition is not normal, replace the switch.

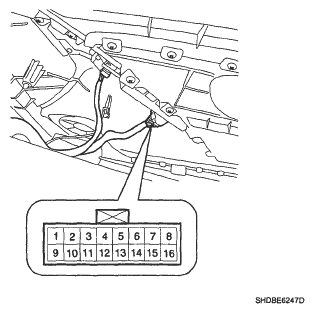

Fig 2: Identifying Power Window Main Switch 16P Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Terminals Continuity Chart

Courtesy of HYUNDAI MOTOR CO.

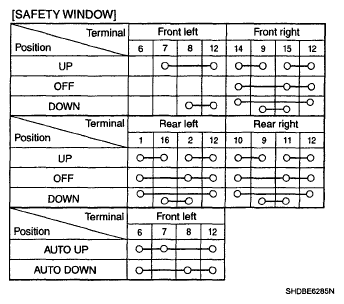

Fig 4: Safety Window Terminals Continuity Chart

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Auto Down Window Terminals Continuity Chart

Courtesy of HYUNDAI MOTOR CO.
