Starter Relay: Inspection

Remove the fuse box cover.
Remove the starter relay (A).

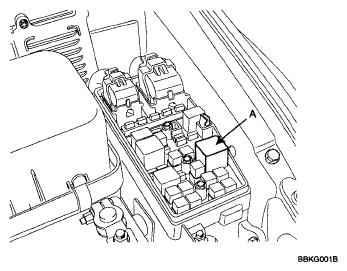

Fig 1: Identifying Starter Relay
Courtesy of HYUNDAI MOTOR CO.

Using an ohmmeter, check that there is continuity between each terminal.

CONTINUITY CHART

Terminal	Continuity
30 - 87	NO
85 - 86	YES

Apply 12V to terminal 85 and ground to terminal 86. Check for continuity between terminals 30 and 87.

Fig 2: Checking Continuity Between Relay Terminals 30 And 87
Courtesy of HYUNDAI MOTOR CO.
If there is no continuity, replace the starter relay.
Install the starter relay.
Install the fuse box cover.
