Floor Console Replacement

WARNING: This page is about a different car, the 2007 Hyundai Entourage. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

After the upper cover is removed (A), disconnect the connector (B).

Fig 1: Identifying Floor Console Connector With Fastener Locations
Courtesy of HYUNDAI MOTOR CO.
Remove the following items.
- Crash pad lower panel. (Refer to LOWER PANEL REPLACEMENT )
- Lower bracket.
- Glove box. (Refer to GLOVE BOX REPLACEMENT )
- Console side cover. (Refer to COVER REPLACEMENT )

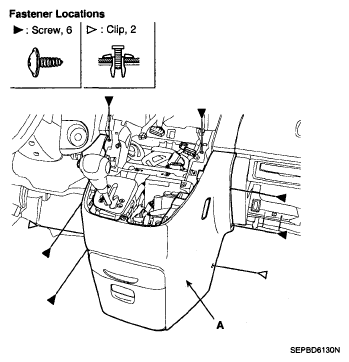

After loosening the console mounting screw, remove the front console (A).

Fig 2: Identifying Front Console Mounting Screw With Fastener Locations
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.

CUP HOLDER ASSEMBLY REPLACEMENT

Remove the front console assembly. (Refer to REPLACEMENT )
After removing the mounting bracket (A), remove the cup holder assembly (B).

Fig 3: Identifying Mounting Bracket And Cup Holder Assembly With Fastener Locations
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
