Heater Control Unit Replacement

WARNING: This page is about a different car, the 2007 Hyundai Entourage. However, it is still accessible from the selected car via links, so may be relevant.

Remove the center facia panel. (Refer to REPLACEMENT )

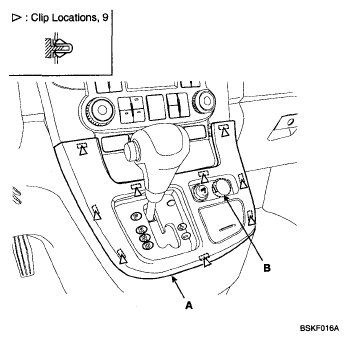

Remove the console upper cover (A).
Disconnect the connector (B).

Fig 1: Identifying Console Upper Cover And Connector With Fastener Locations
Courtesy of HYUNDAI MOTOR CO.

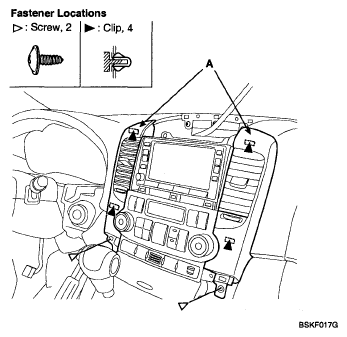

Loosen the air vent mounting screw, then remove the air vent (A).

Fig 2: Identifying Air Vent Mounting Screw
Courtesy of HYUNDAI MOTOR CO.

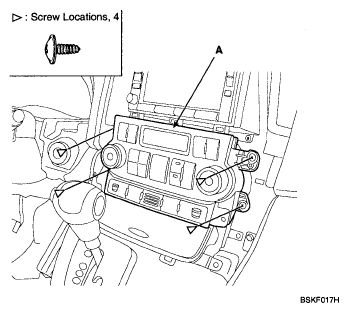

After loosening the heater control unit mounting screws, then remove the heater control unit (A).

Fig 3: Identifying Heater Control Unit Mounting Screws With Fastener Locations
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.

NOTE:

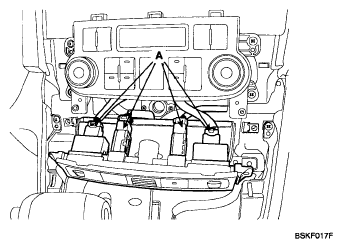

Make sure the connector (A) is plugged in properly.

Fig 4: Identifying Connector Plug

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Identifying Connector plugs

Courtesy of HYUNDAI MOTOR CO.
