Home >> Hyundai >> 2008 >> Entourage V6-3.8L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Blower Motor >> System Diagram >> Blower Unit

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Blower Unit

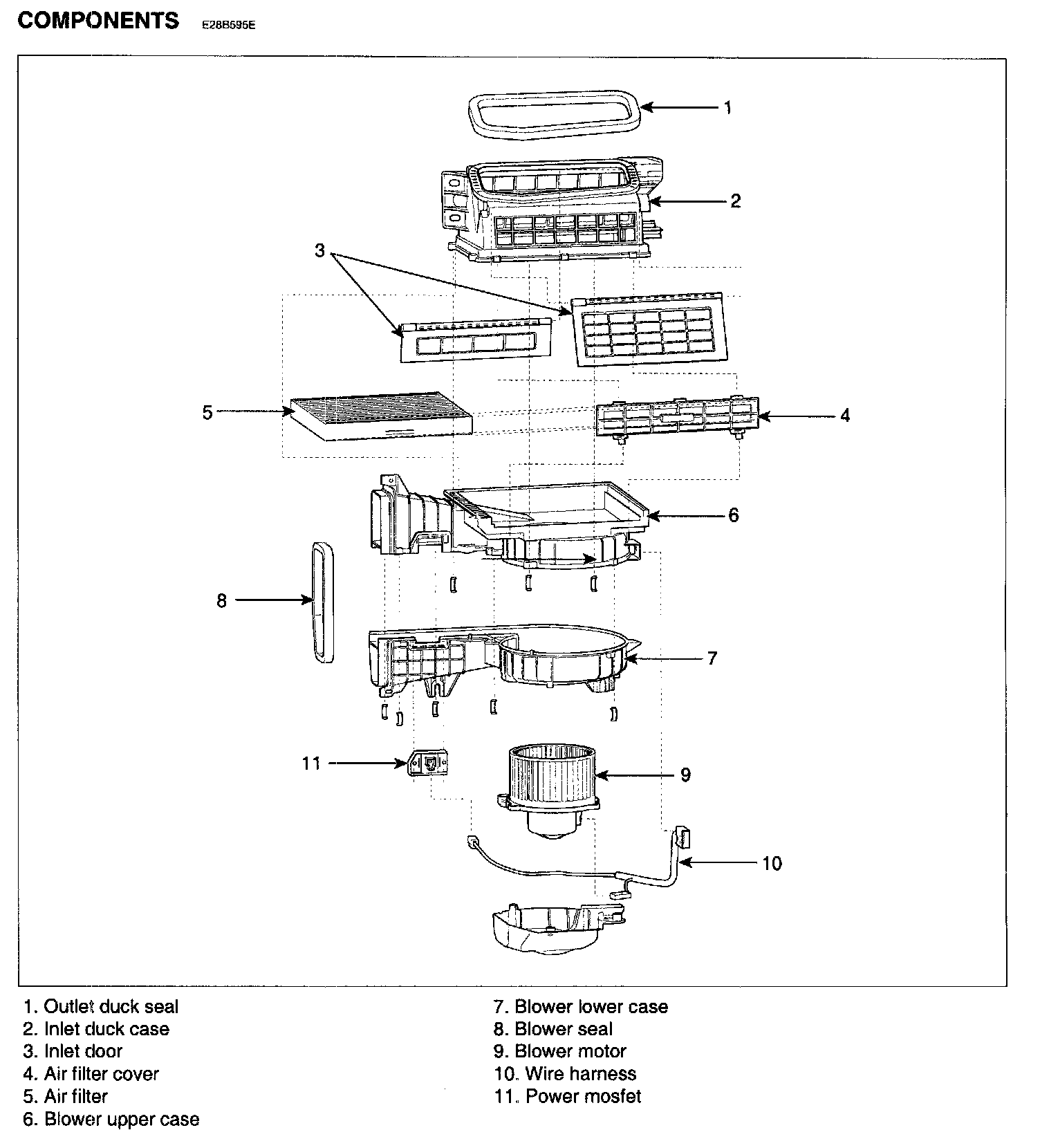

Blower Unit - Components:
