Relay Box (Passenger Compartment) IPM

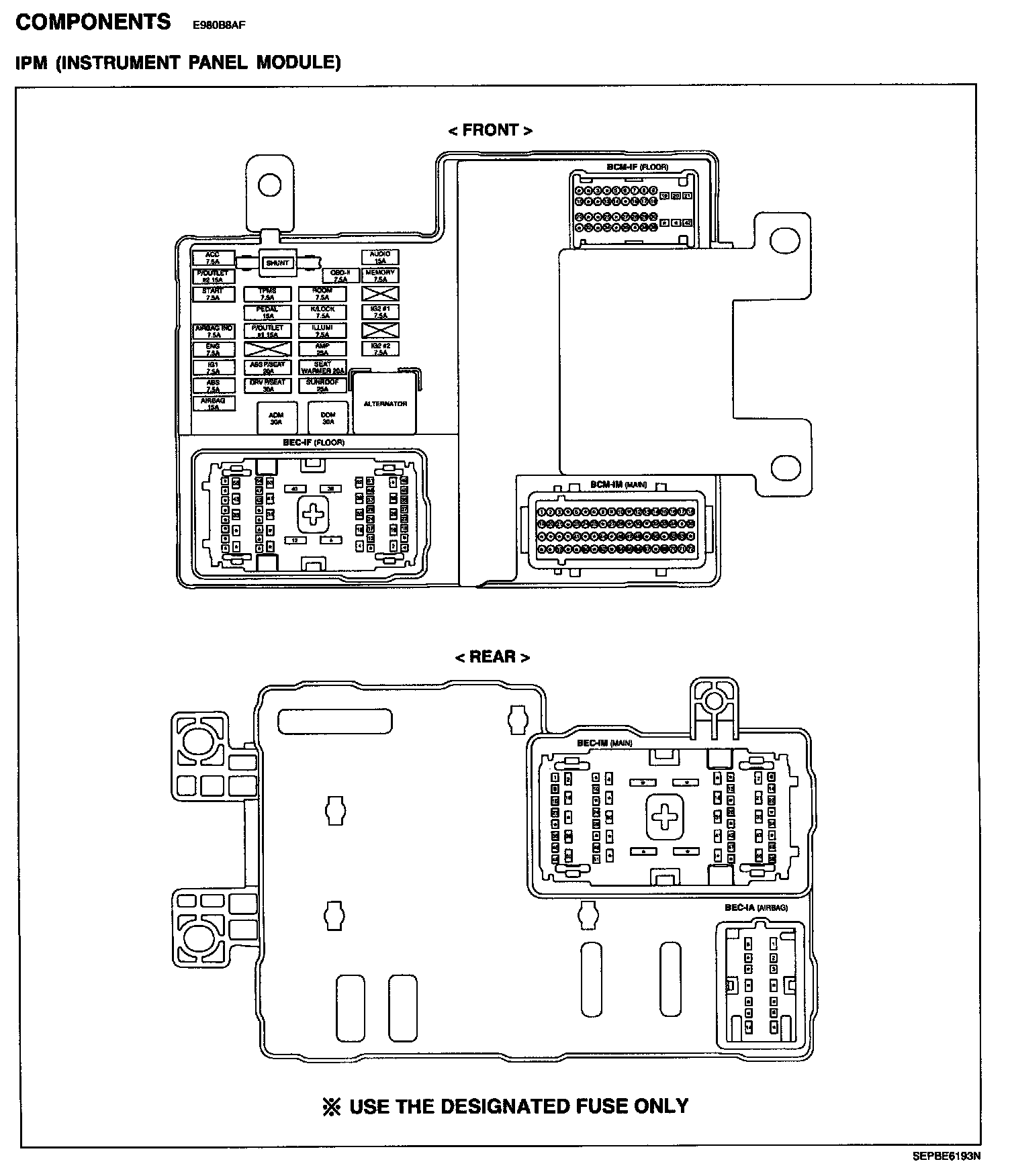

Relay Box (Passenger Compartment) IPM (Instrument Panel Module) - Components:

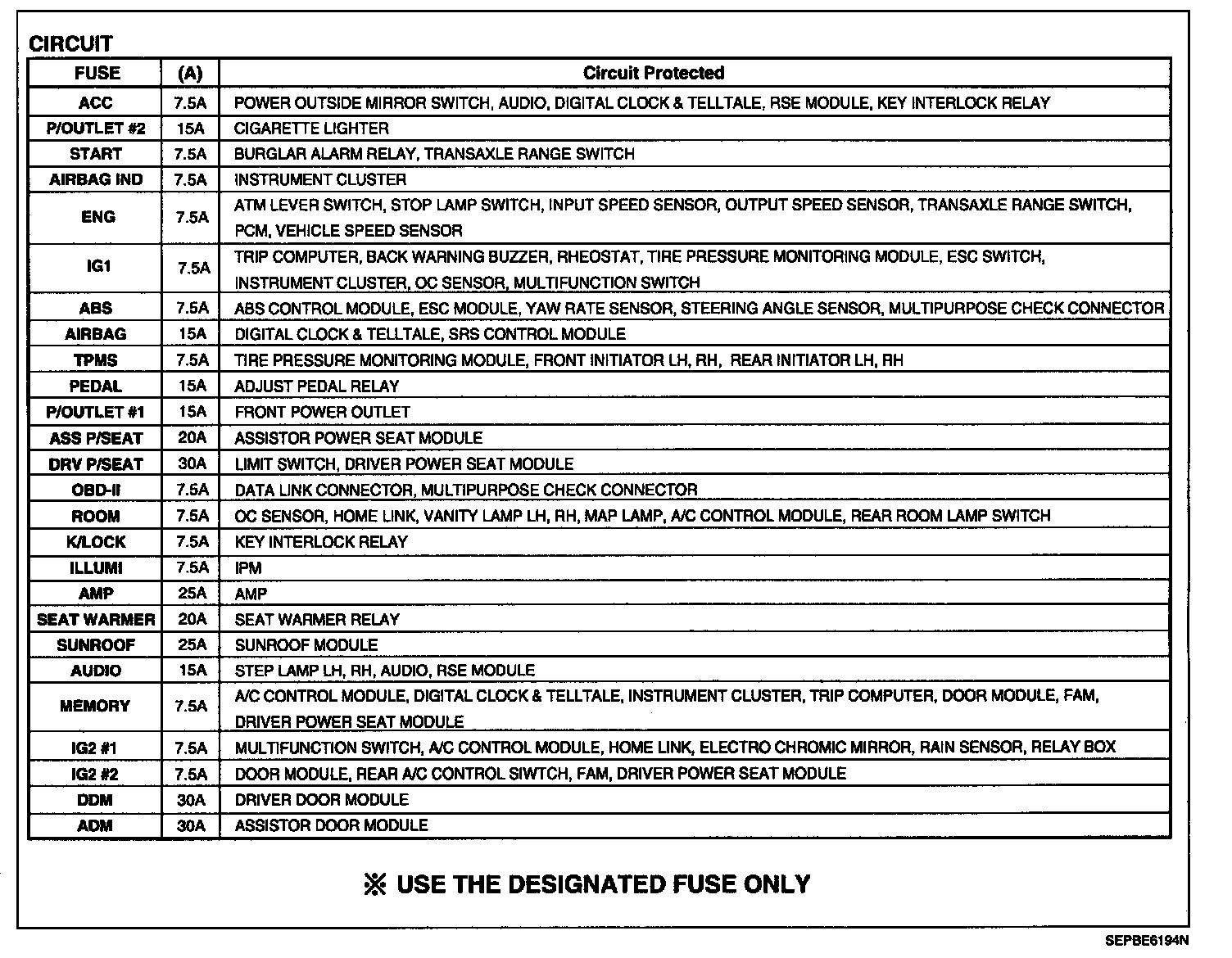

Relay Box (Passenger Compartment) IPM (Instrument Panel Module) - Components:
