2.7 V6 Engine

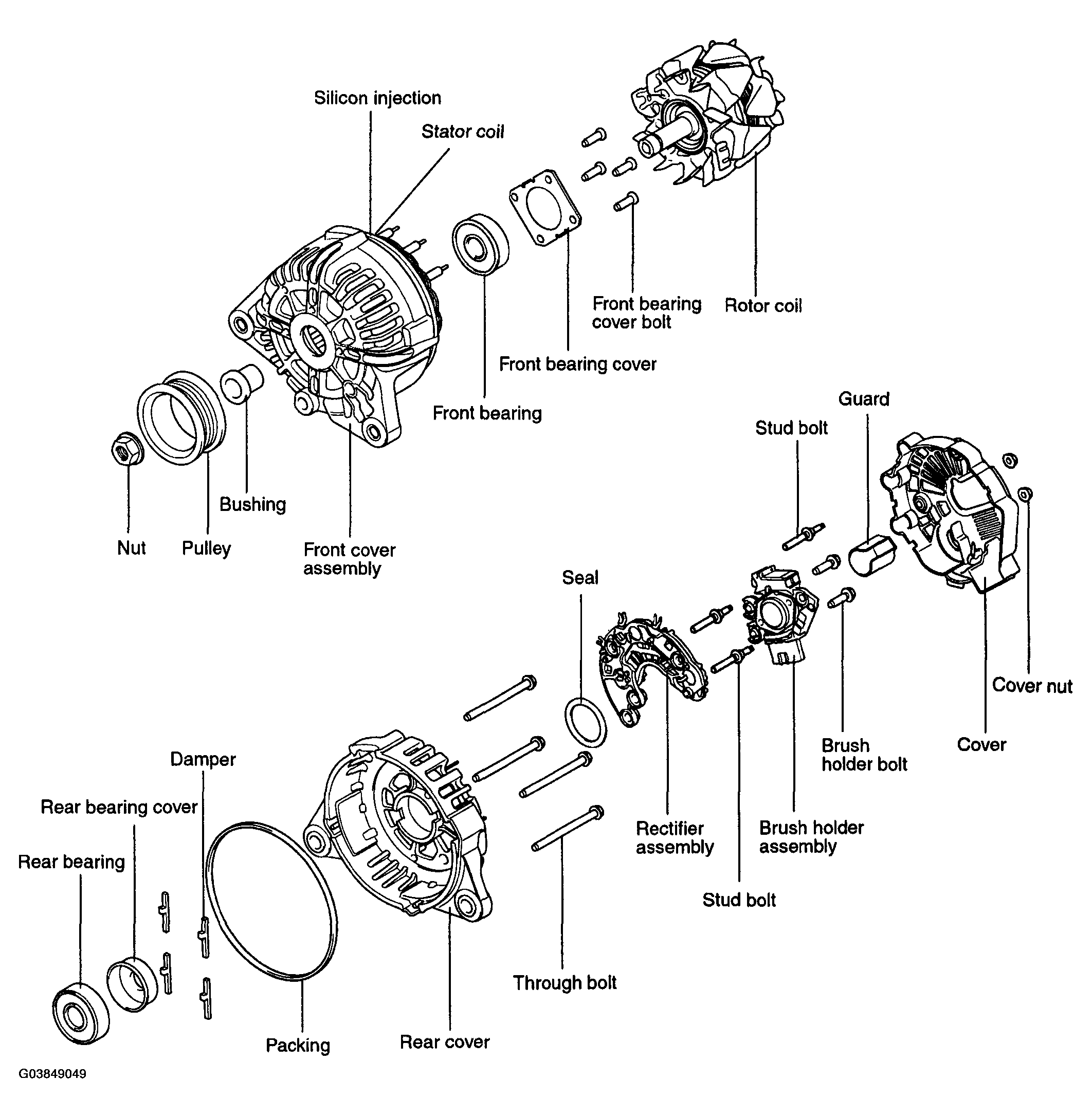

Fig 1: Identifying Components Charging System- 2.7 V6 Engine
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
