ETACS Module Input Signal Test

Disconnect the wire connector from the ETACS module.
Inspect the connector on wire harness side as shown in Fig 1-Fig 3.

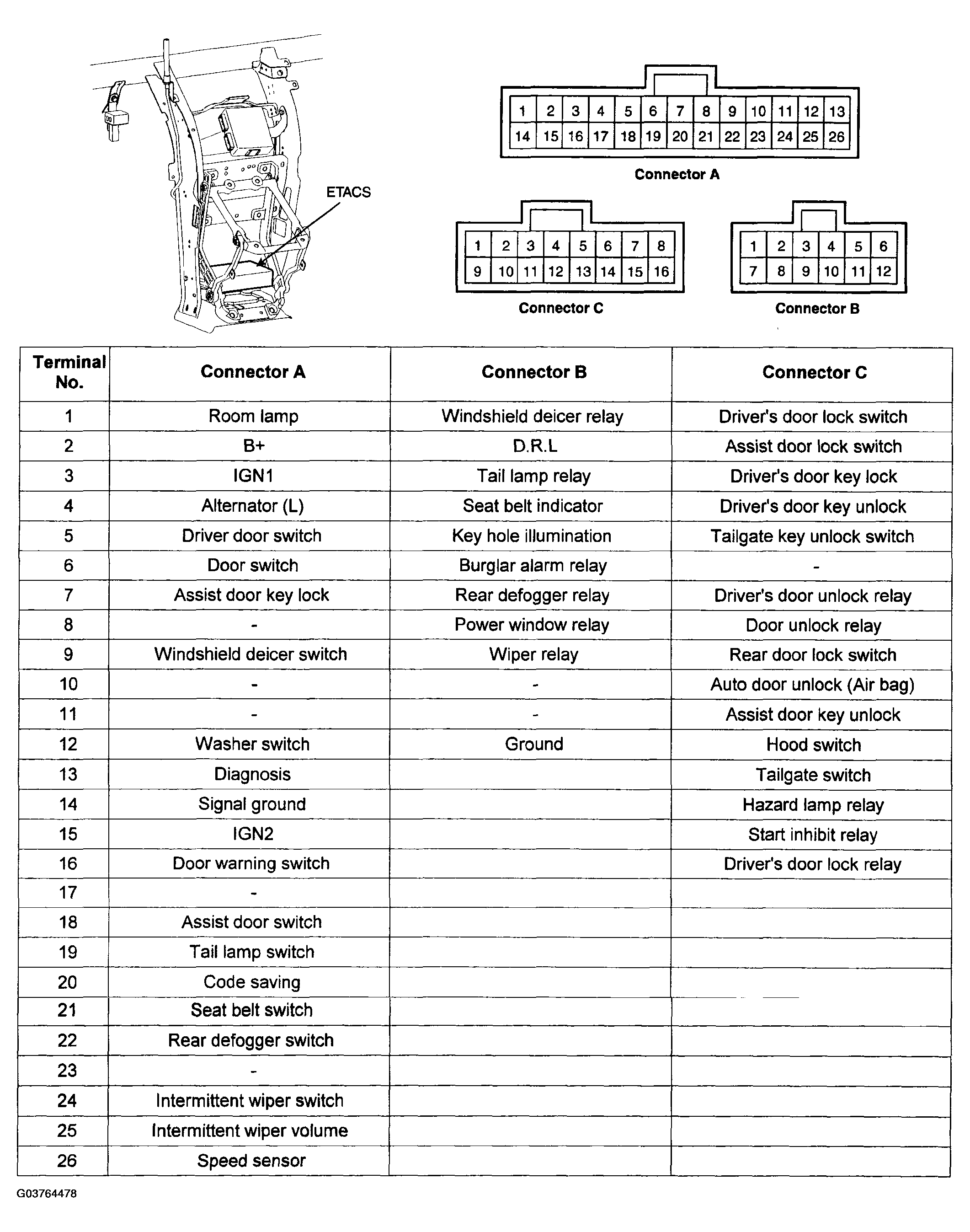

Fig 1: ETACS Module Connector Terminals & Circuit Identification
Courtesy of HYUNDAI MOTOR CO.

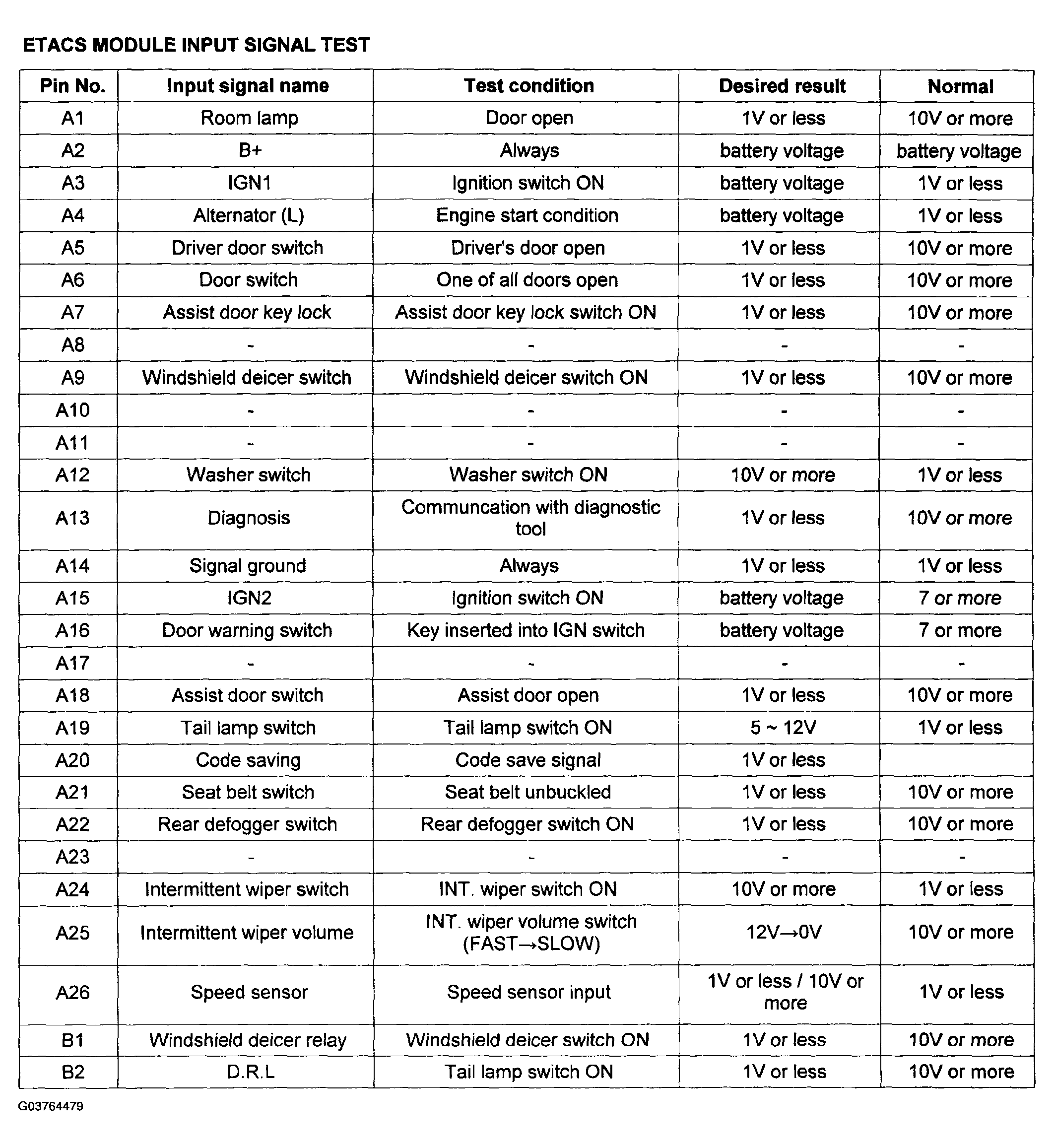

Fig 2: ETACS Module Input Signal Test (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

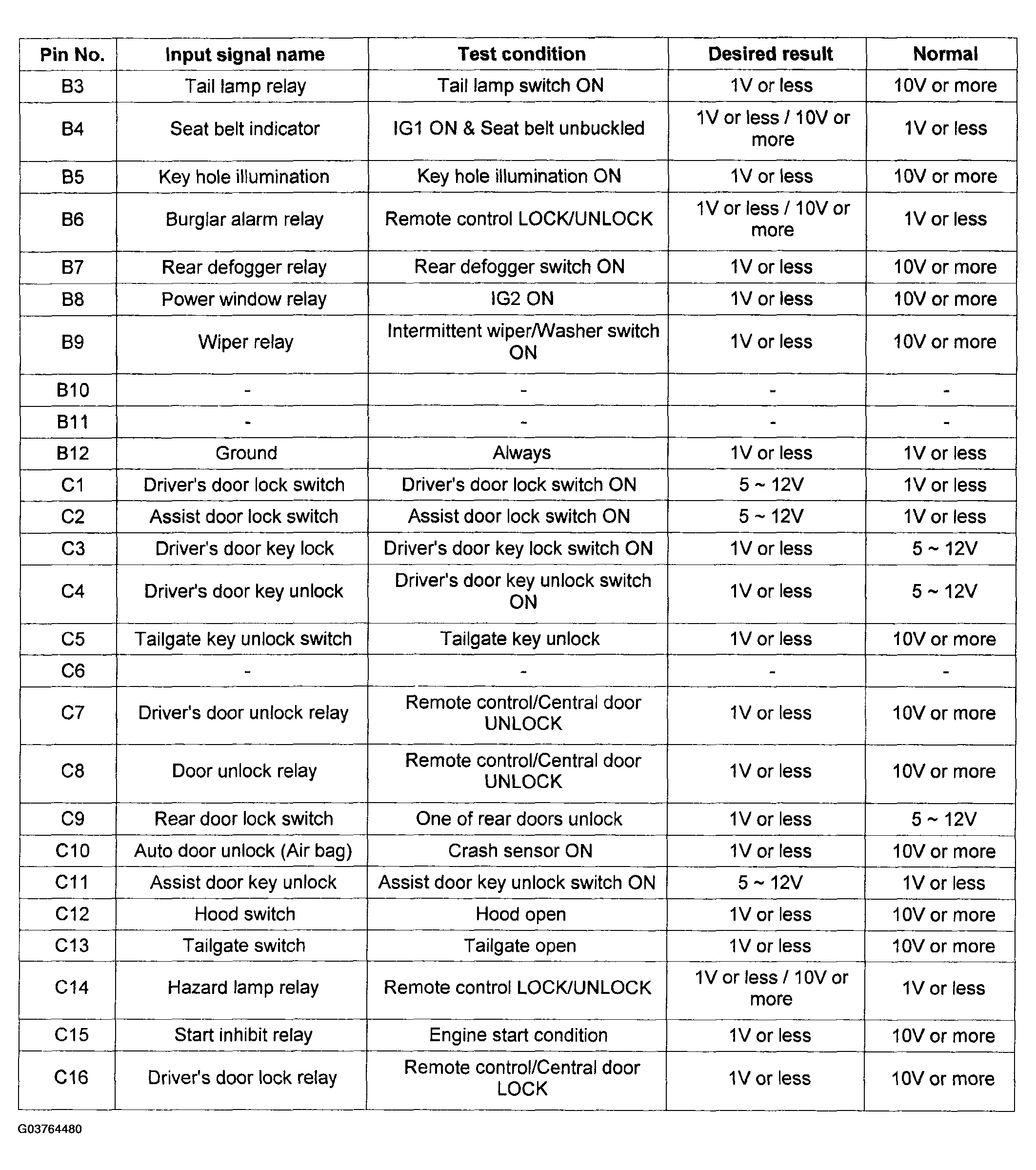

Fig 3: ETACS Module Input Signal Test (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
