Starting System: Starter: Components

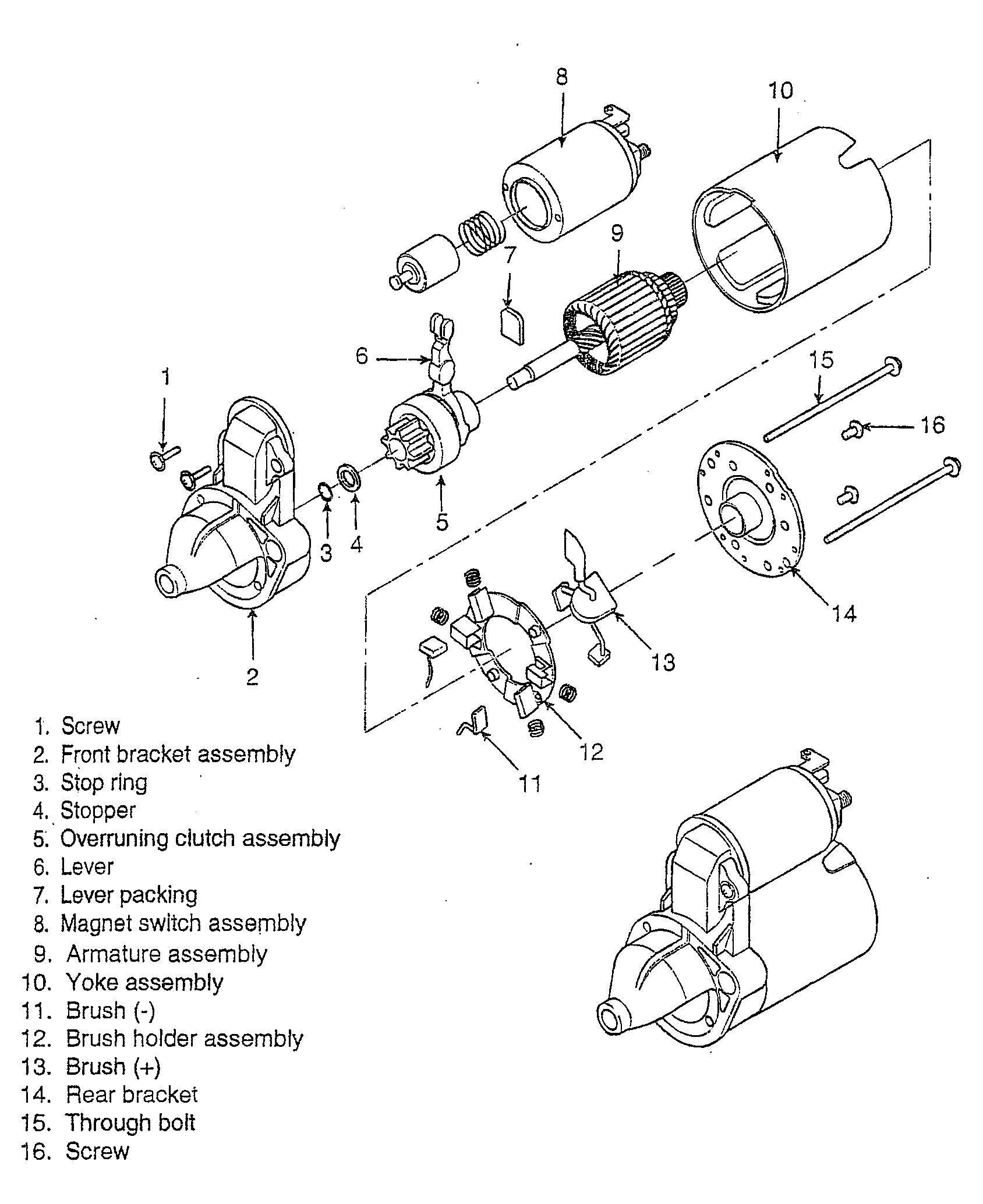

Fig 1: Identifying Starter Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
