July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

PCM

PCM HARNESS CONNECTOR

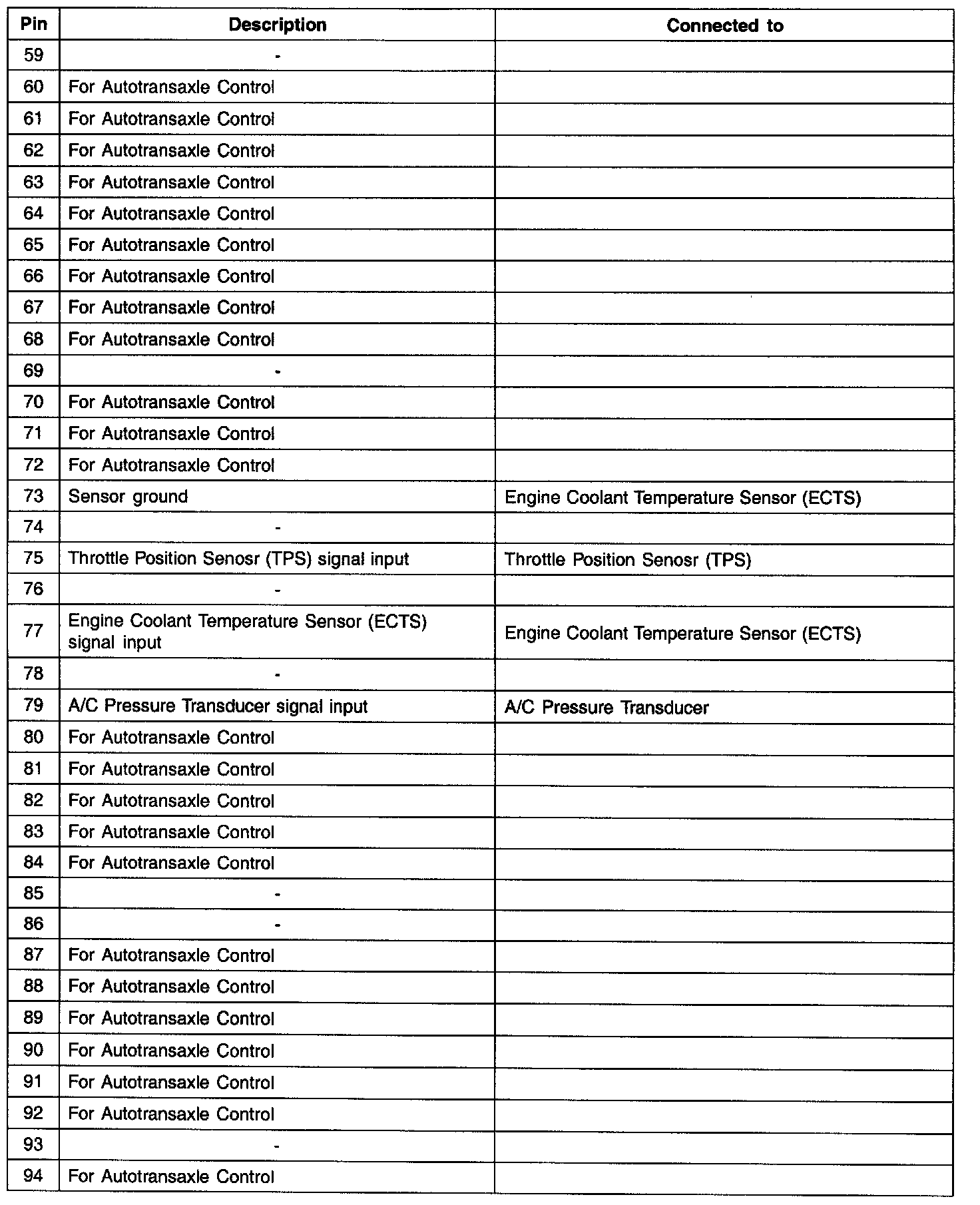

PCM Terminal Function (A/T) - Connector (C01-1) Part 1:

PCM Terminal Function (A/T) - Connector (C01-1) Part 2:

PCM Terminal Function (A/T) - Connector (C01-1) Part 3:

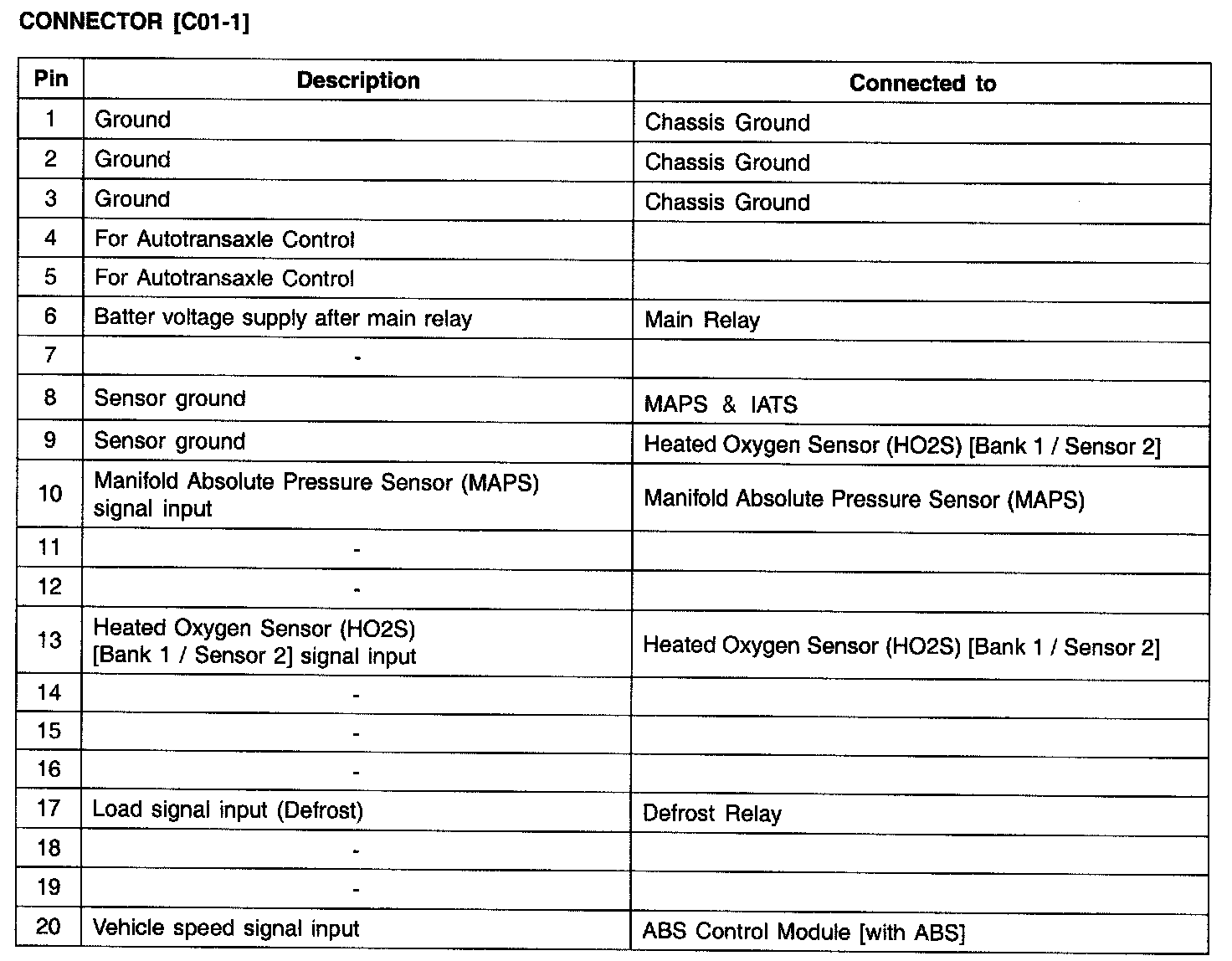

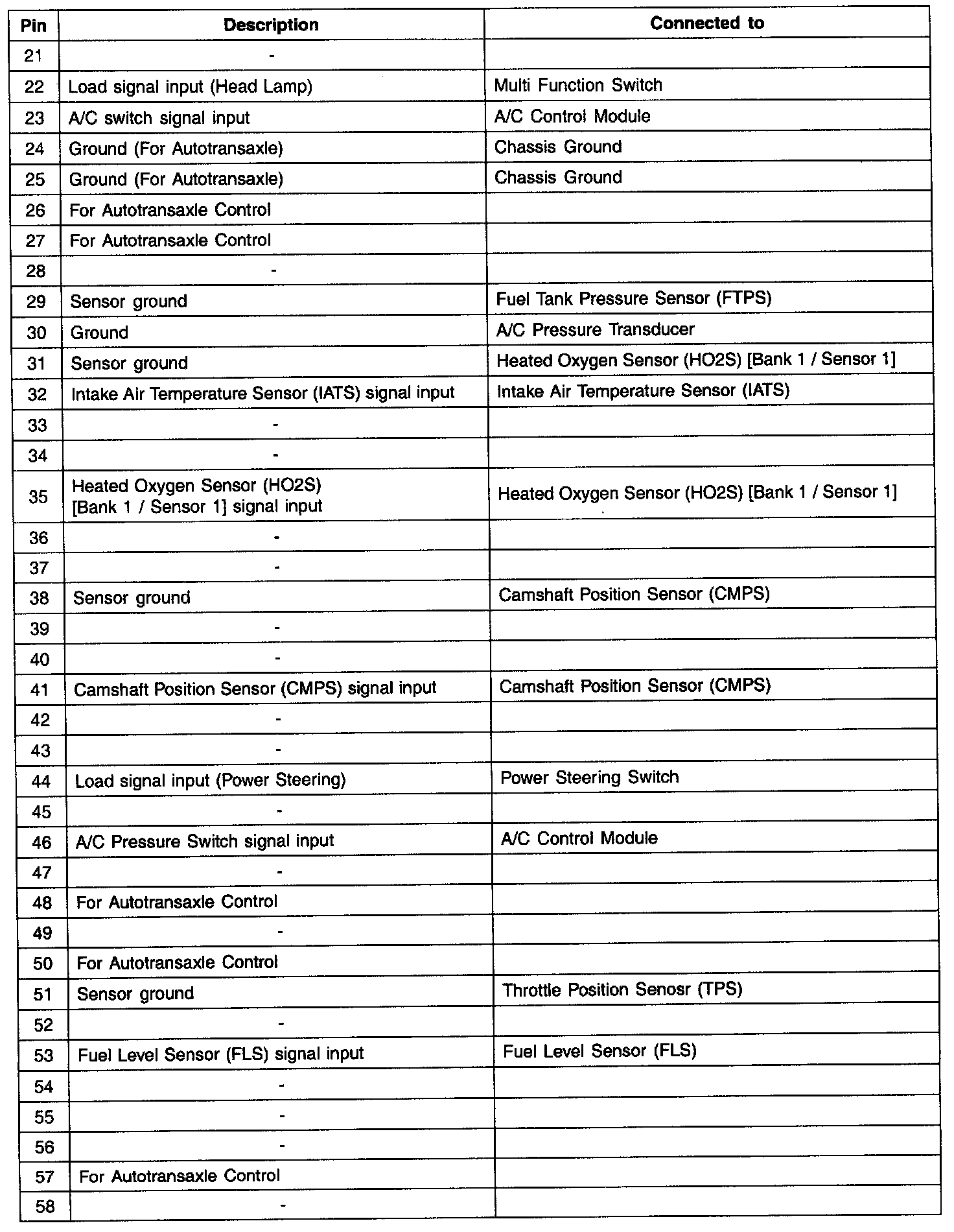

PCM TERMINAL FUNCTION - CONNECTOR [C01-1]

PCM Terminal Function (A/T) - Connector (C02-1) Part 1:

PCM Terminal Function (A/T) - Connector (C02-1) Part 2:

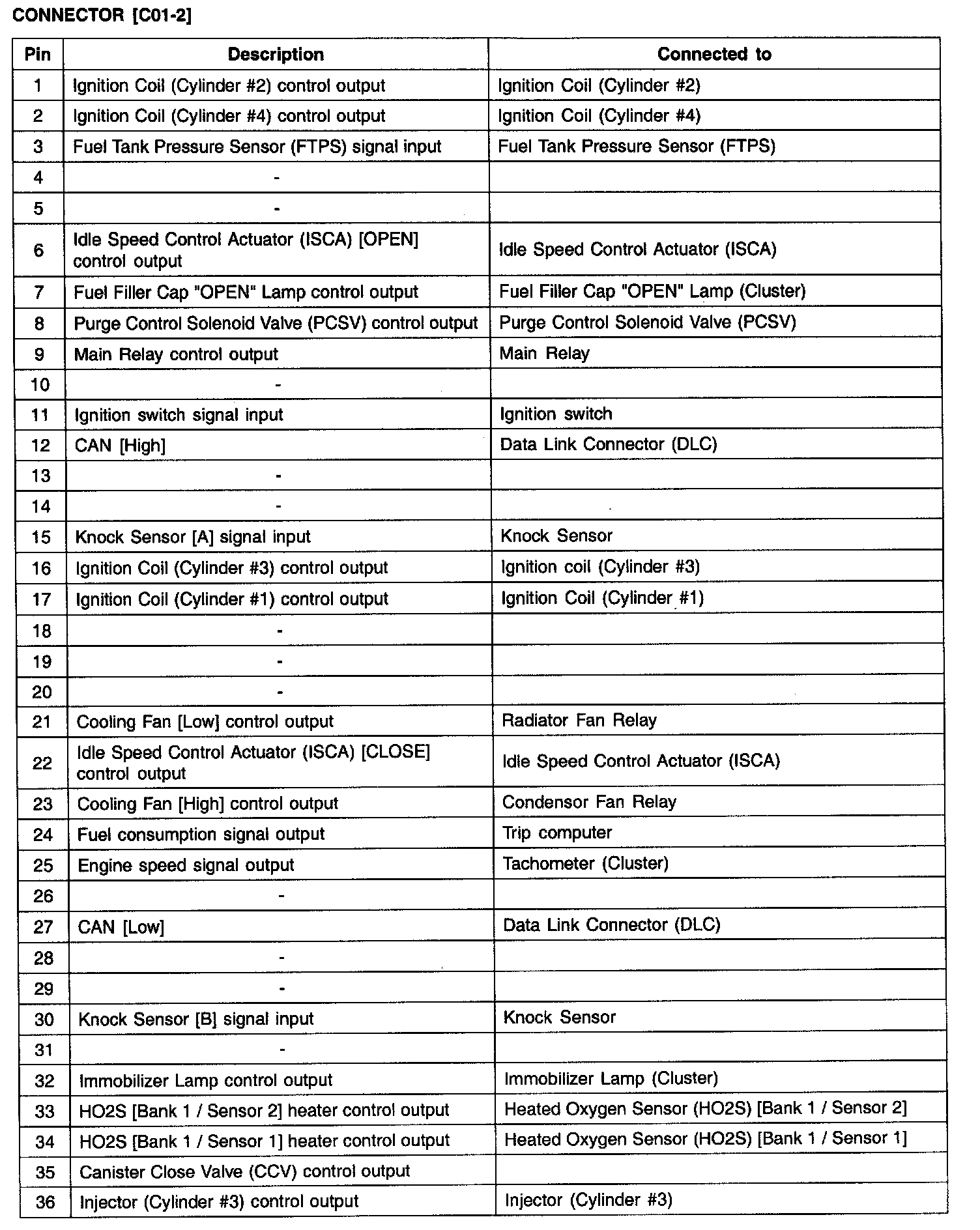

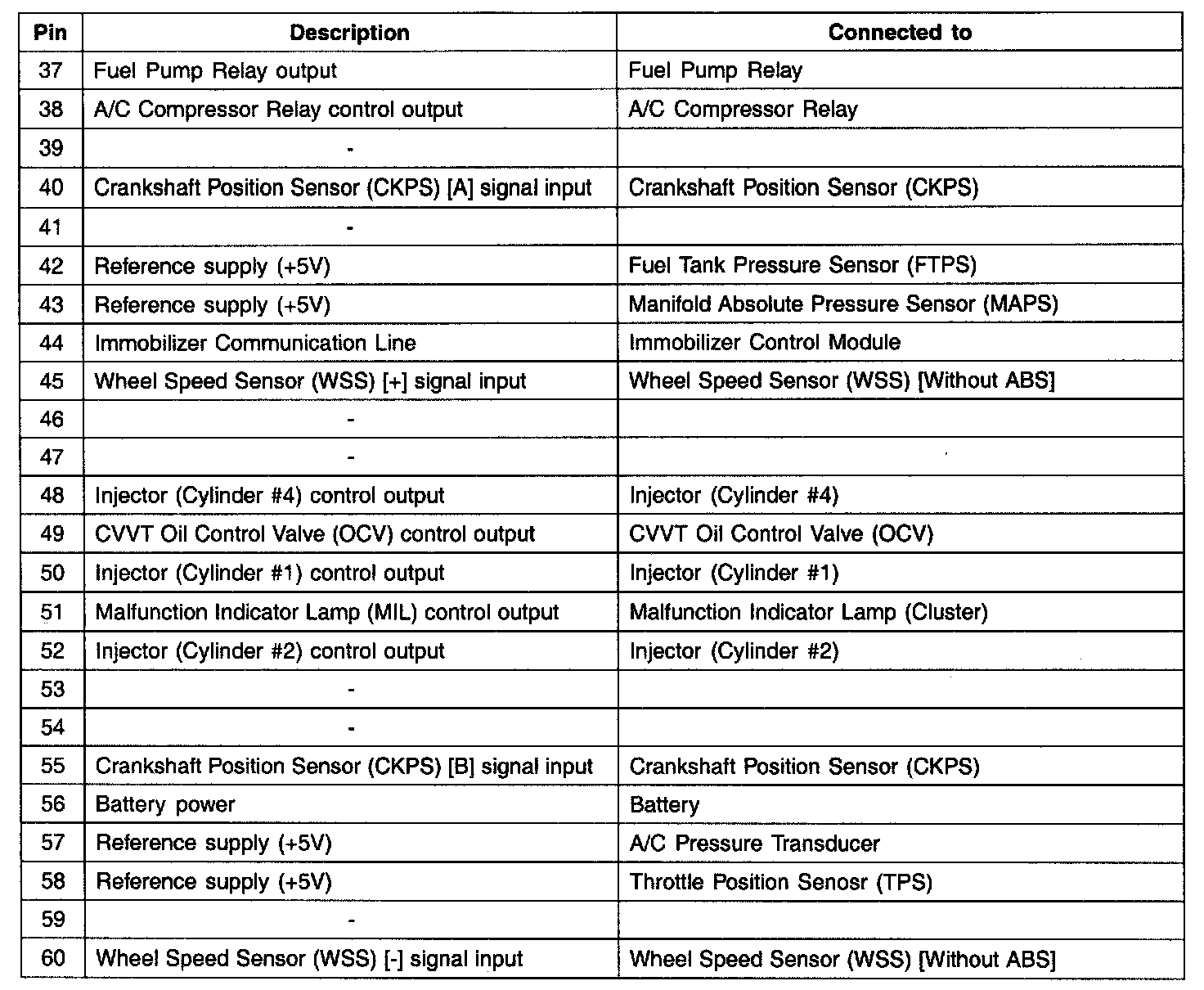

PCM TERMINAL FUNCTION - CONNECTOR [C01-2]

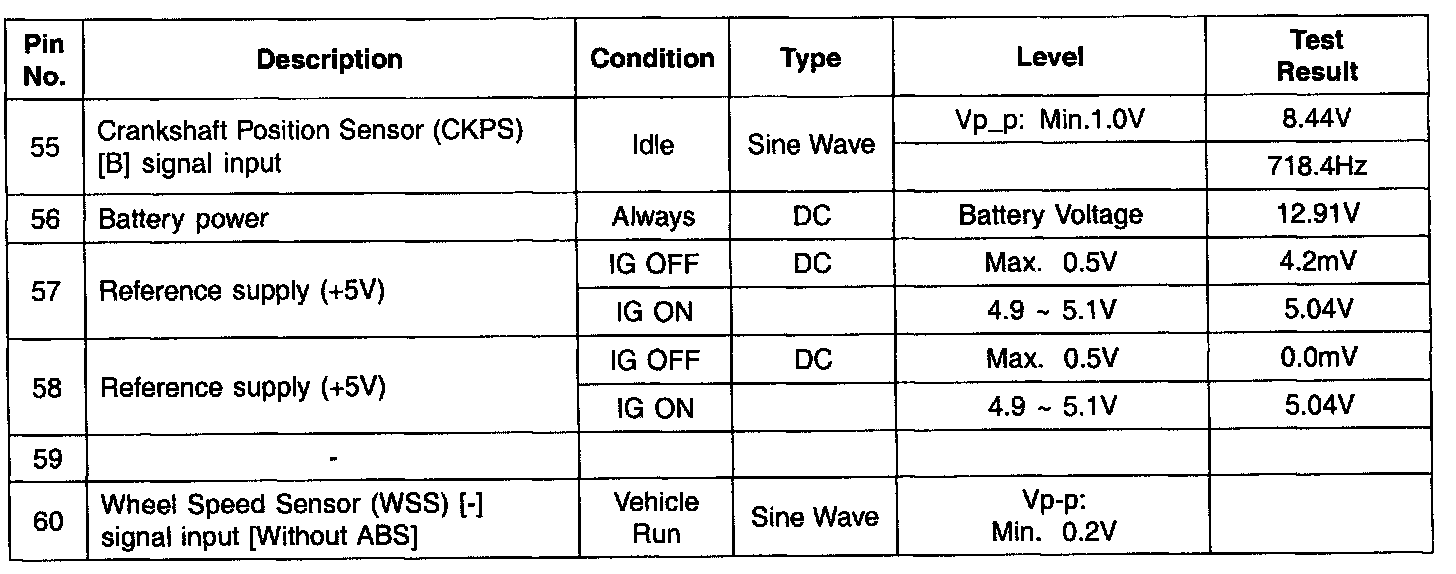

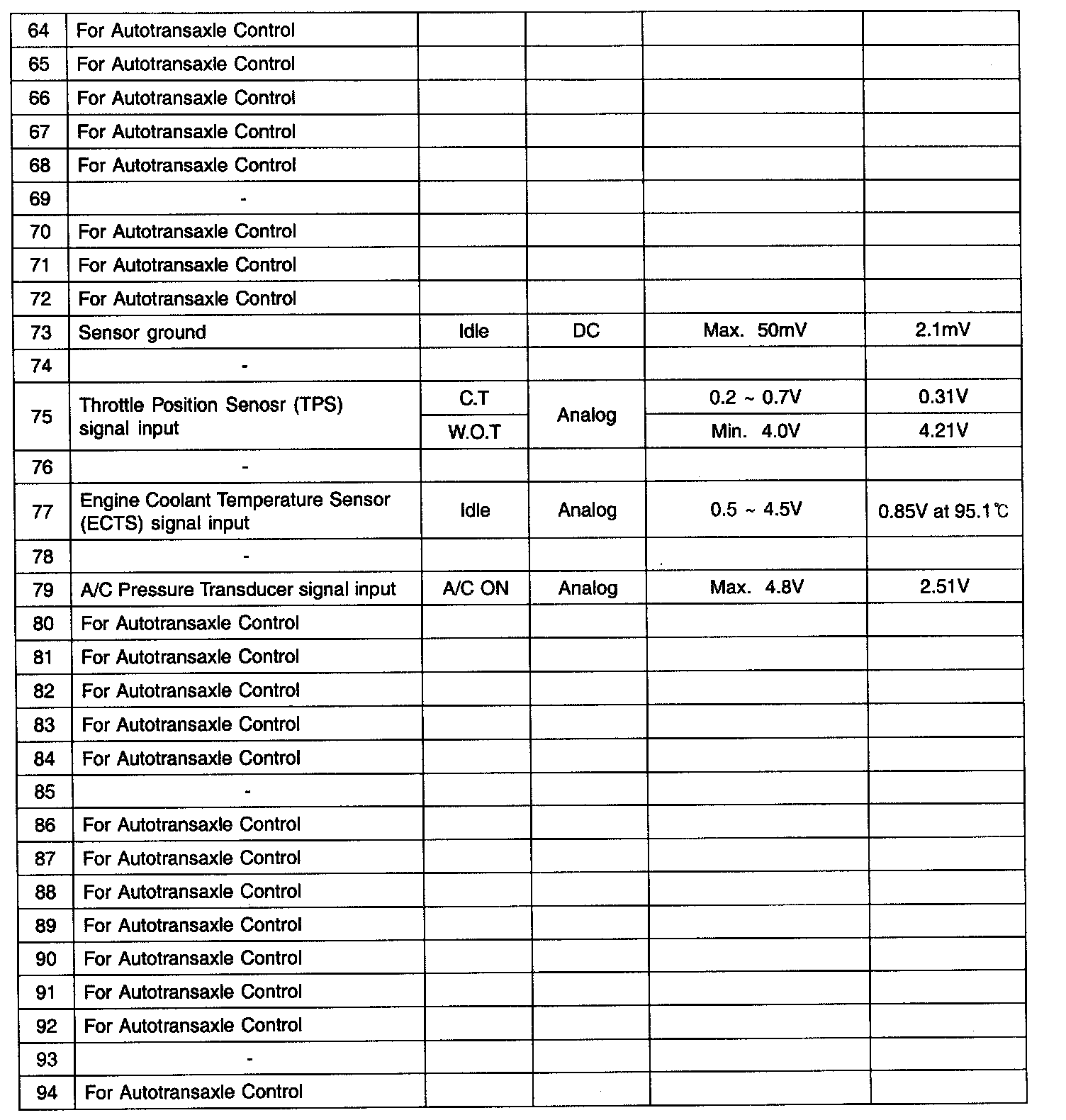

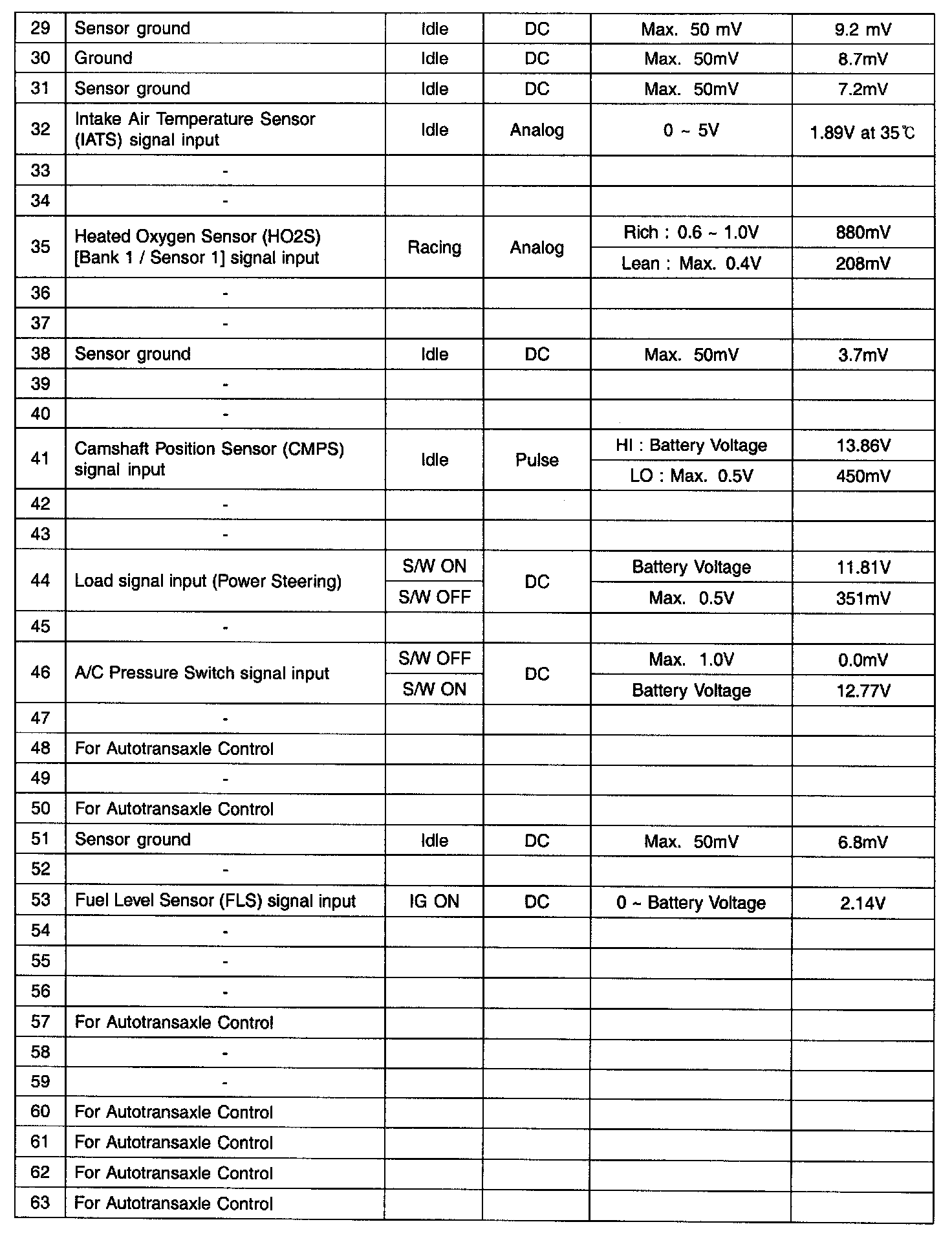

PCM Terminal In/Out Signal - Connector (C01-1) Part 1:

PCM Terminal In/Out Signal - Connector (C01-1) Part 2:

PCM Terminal In/Out Signal - Connector (C01-1) Part 3:

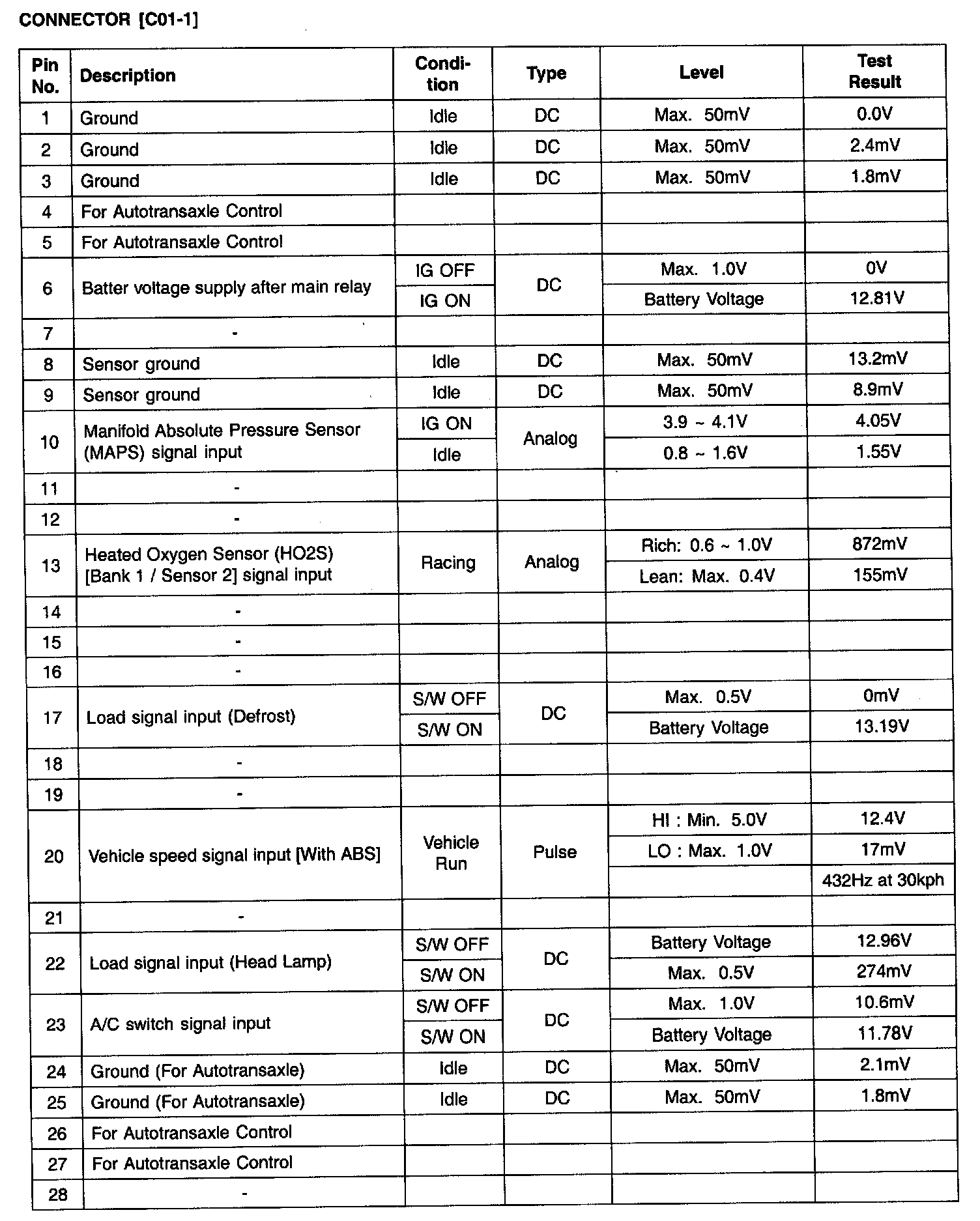

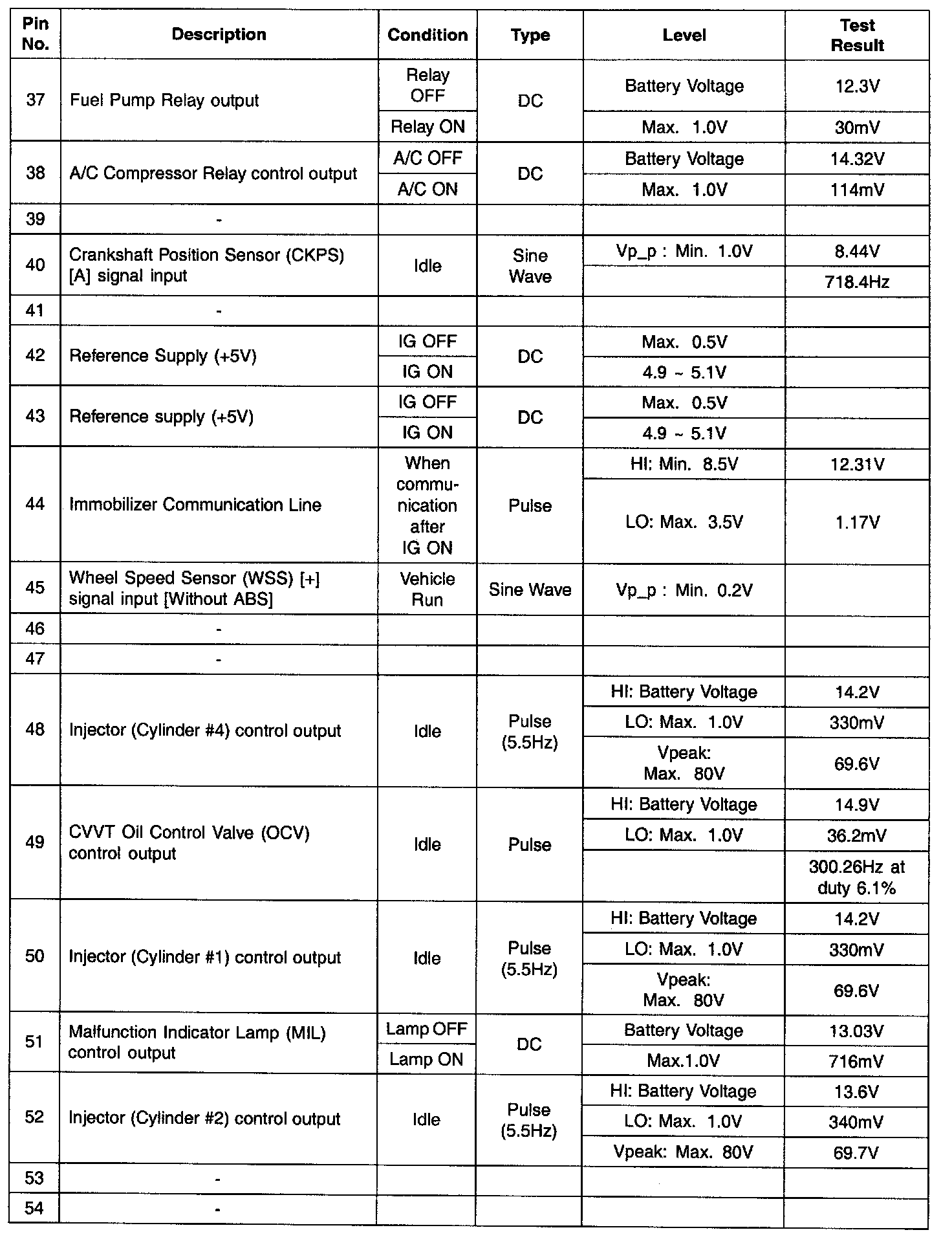

PCM TERMINAL INPUT/OUTPUT SIGNAL CONNECTOR [C01-1]

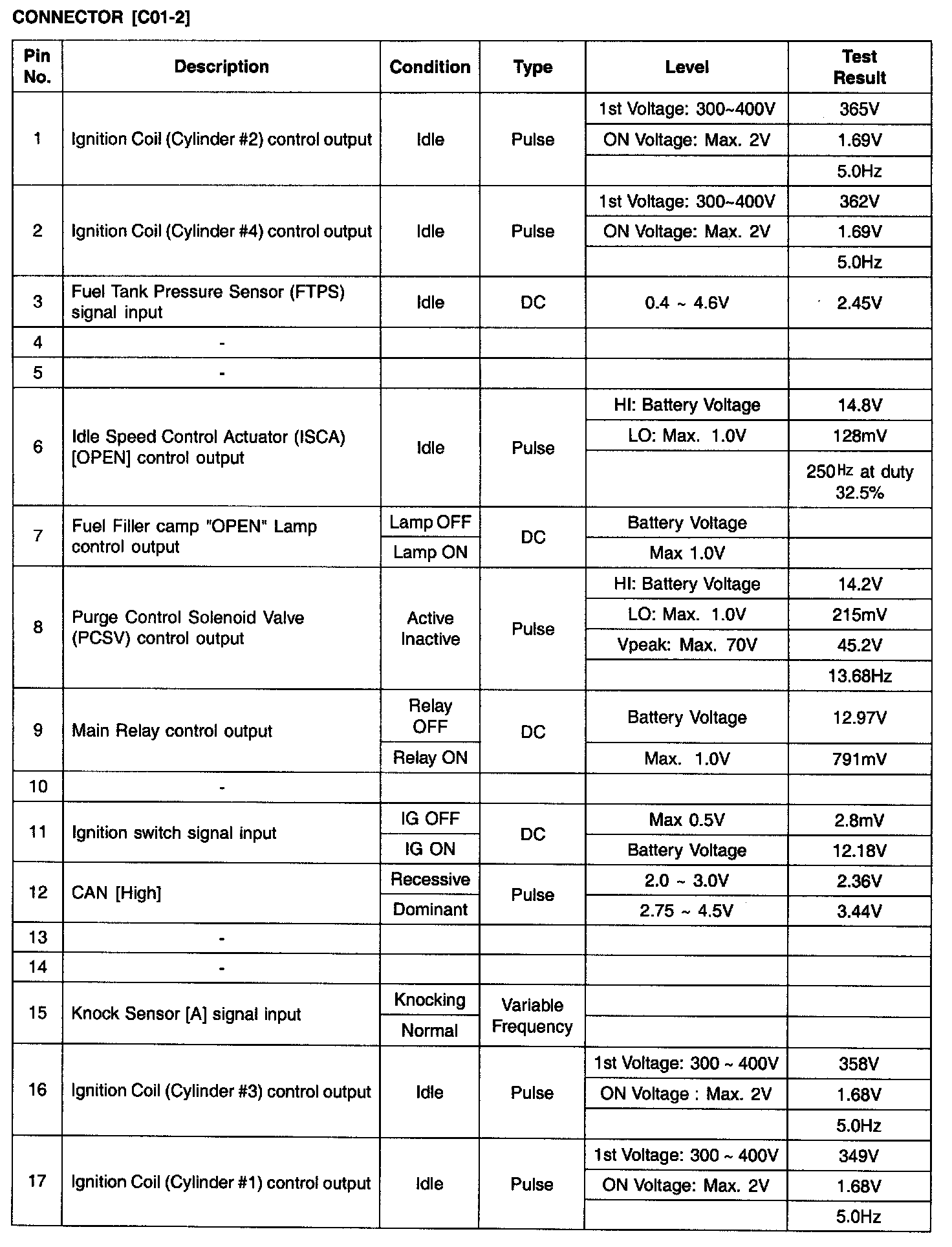

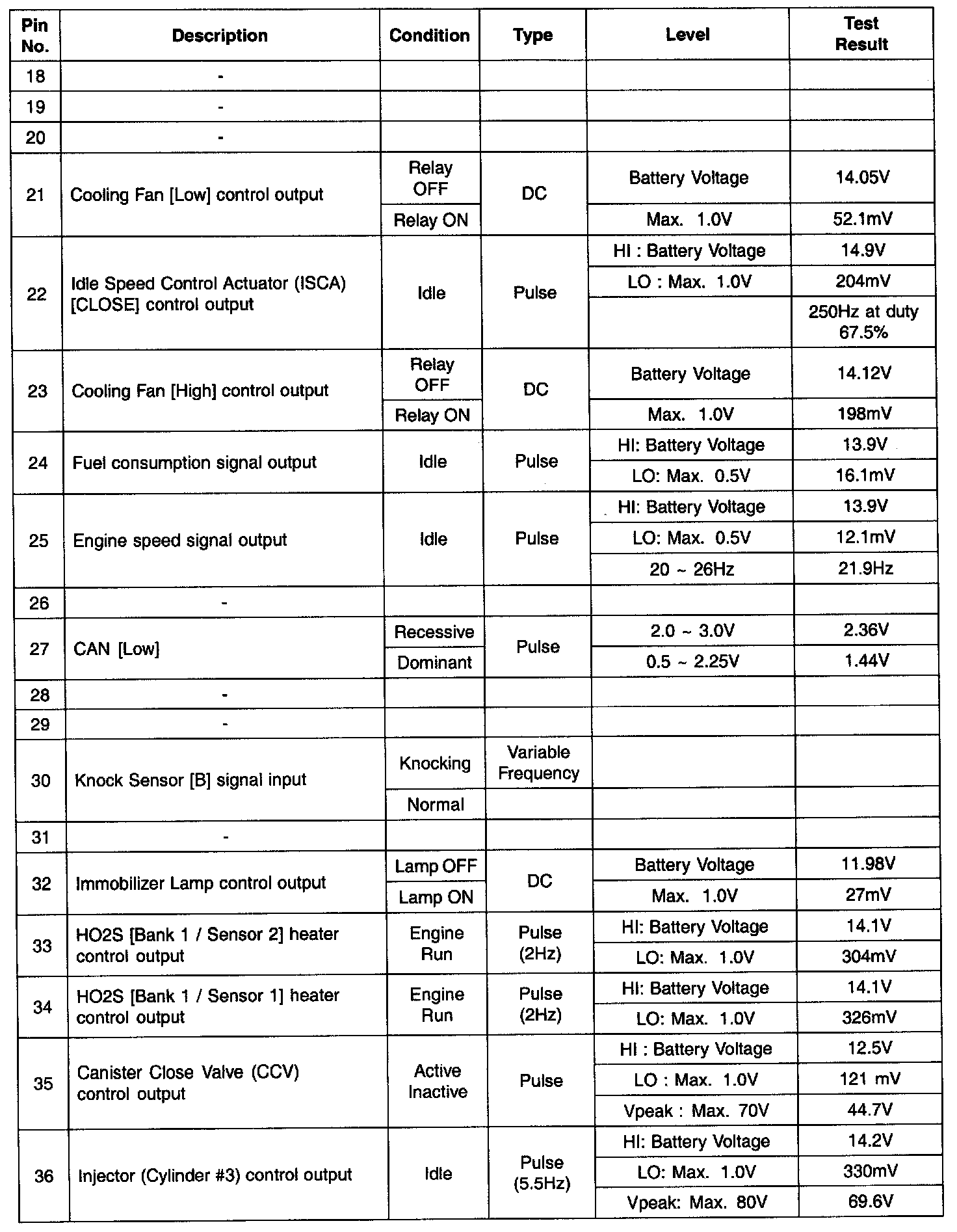

PCM Terminal In/Out Signal - Connector (C01-2) Part 1:

PCM Terminal In/Out Signal - Connector (C01-2) Part 2:

PCM Terminal In/Out Signal - Connector (C01-2) Part 3:

PCM Terminal In/Out Signal - Connector (C01-2) Part 4:

PCM TERMINAL INPUT/OUTPUT SIGNAL CONNECTOR [C01-2]
