Multimedia jack: Components

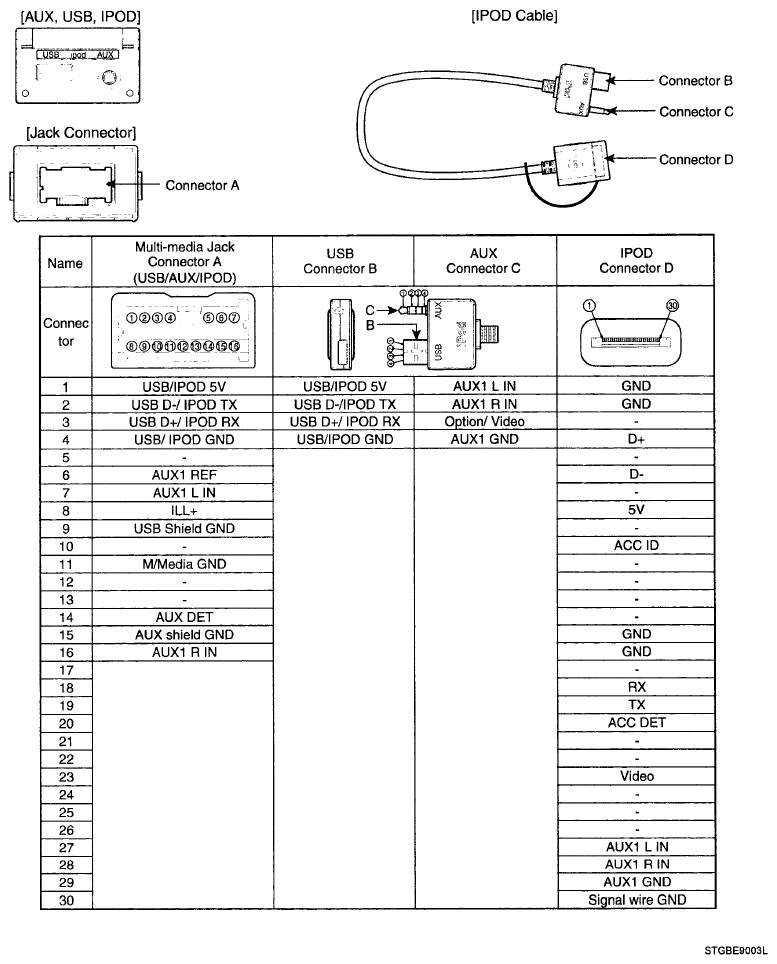

Fig 1: Identifying Multimedia Jack Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
