Floor Console Replacement

WARNING: This page is about a different car, the 2007 Hyundai Azera. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the knob (A).

Fig 1: Identifying Knob
Courtesy of HYUNDAI MOTOR CO.
After remove the center cover (A), disconnect the connector (B).

Fig 2: Identifying Center Cover And Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the upper cover garnish (A).

Fig 3: Identifying Upper Cover Garnish
Courtesy of HYUNDAI MOTOR CO.
Remove the floor console tray.
After loosening the console mounting screw, then remove the floor console assembly (A).
Disconnect the connector (B), then remove the rear floor console.

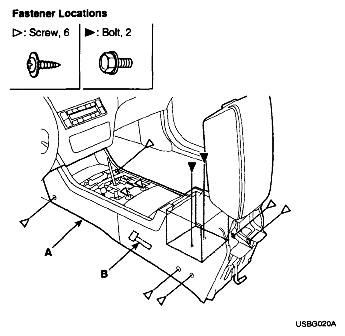

Fig 4: Identifying Floor Console Assembly And Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
