Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the under cover after loosening 3 screws and then remove the step lamp connector (B).

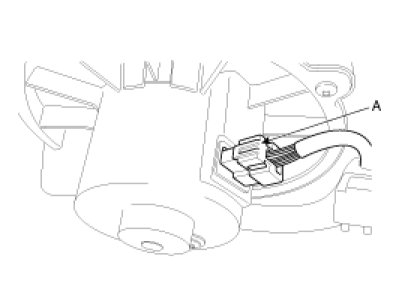

3. Disconnect the connector (A) of the blower motor.

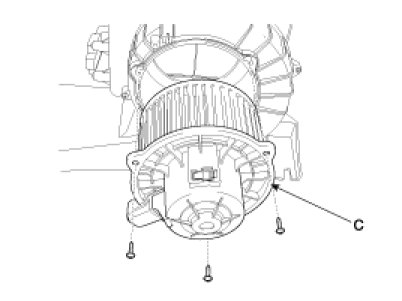

4. Remove the blower motor (C) after loosening the mounting screws.




5. Installation is the reverse order of removal.
