ABS(Anti-Lock Brake System)

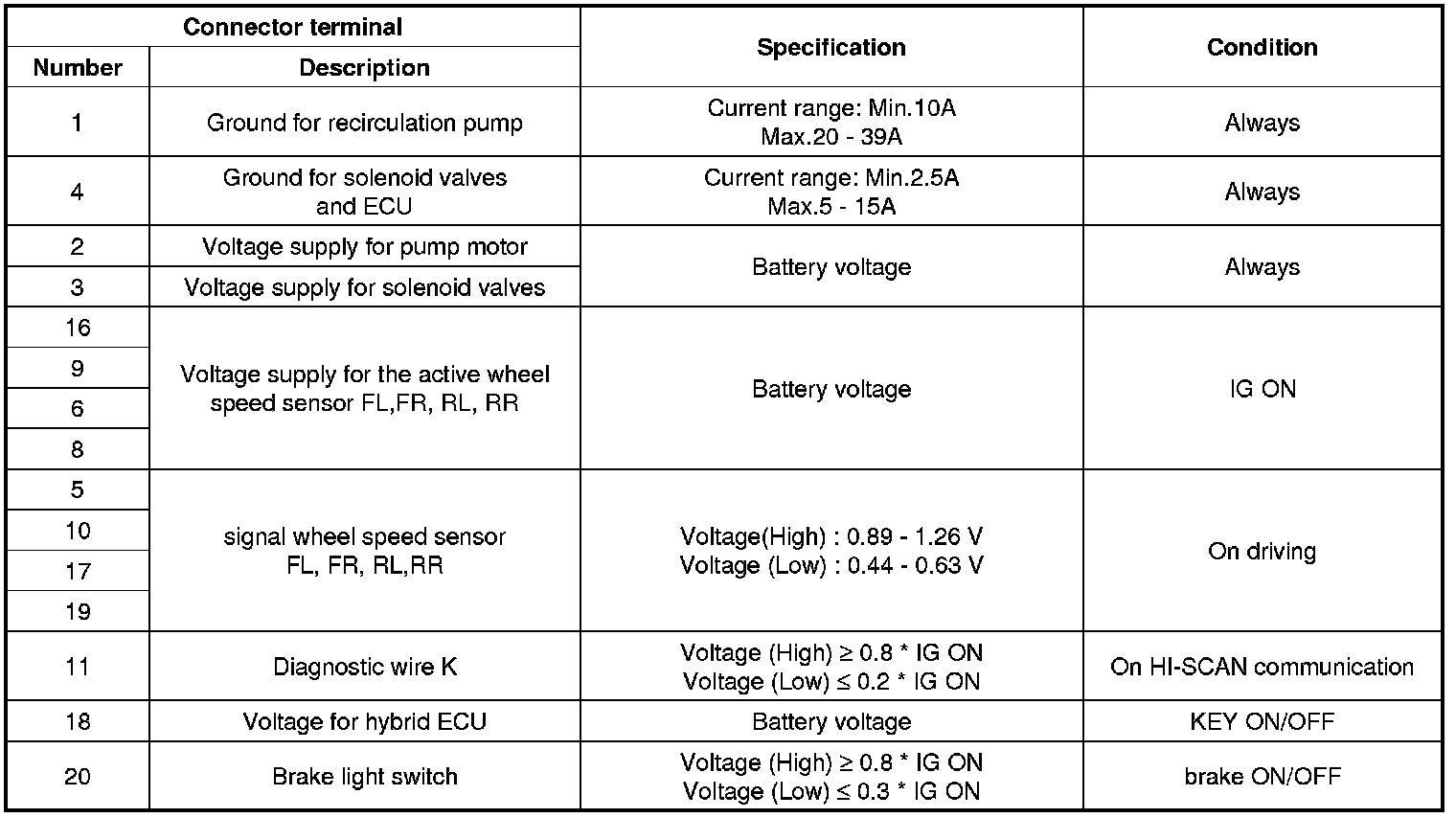

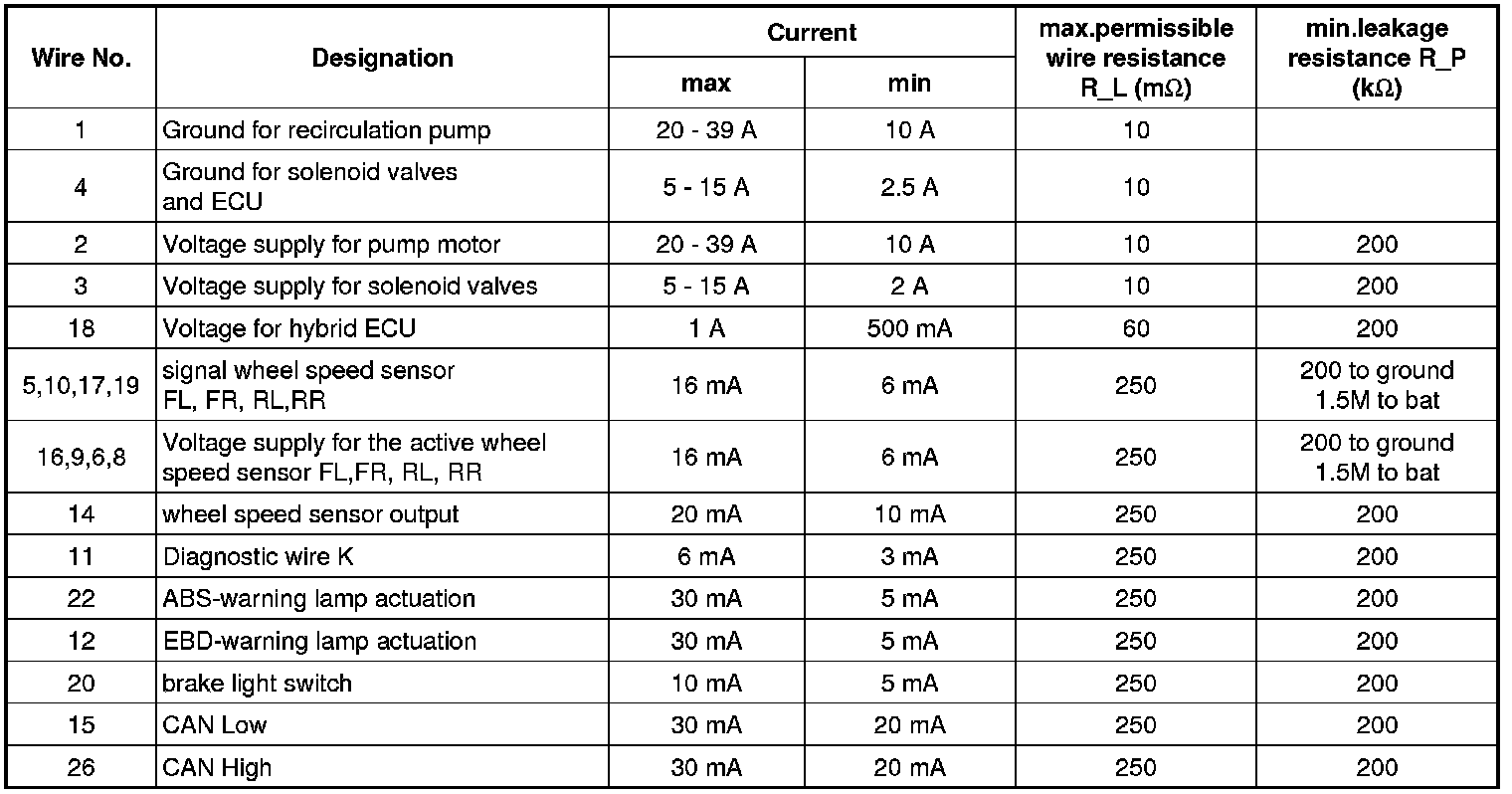

ECU Connector Input/Output(ABS)

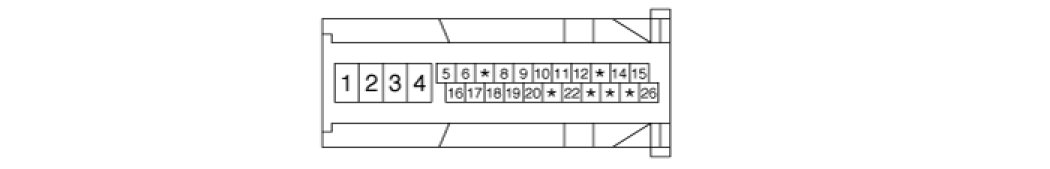

ABS HECU Connector





Sensor Output On Hi-scan(ABS)
