System Inspection
- Coolant Level Inspection
- Check the cooling system coolant level.
- Is the coolant in the reservoir at the proper level?
YES
- Go to 2
NO
- Repair or add engine coolant as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
- Thermostat Inspection
- Check if the thermostat bypass valve is stuck in the open position or if the correct type of thermostat was installed. Replace thermostat as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
- Check the valve opening temperature of the thermostat
Specification (Valve opening temperature): 80~84°C (176~183°F)
- If the opening temperature is not as specified, Replace thermostat as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
If OK, go to 3
- ECT Sensor Inspection
- Ignition "OFF"
- Disconnect ECTS connector

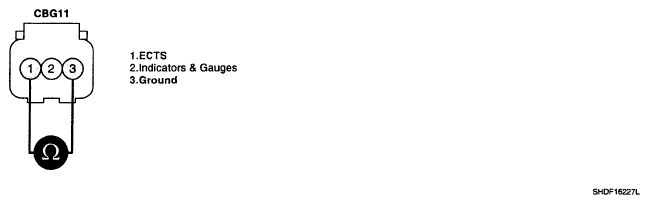

- Measure resistance between terminals 1 and 3 of the sensor connector (Component side)
SPECIFICATION:
DTC P0125 RESISTANCE AND TEMPERATURE SPECIFICATIONSTemp. (°C) Resistance (kΩ) Temp. (°C) Resistance (kΩ) -20 14.1 ~ 16.8 40 Approx. 1.2 0 Approx. 5.8 60 Approx. 0.6 20 2.3 ~ 2.6 80 Approx. 0.3 - Is resistance within the specification?
YES
NO
- Check ECTS for contamination, deterioration, or damage. Substitute with a known-good ECTS and check for proper operation. If the problem is corrected, replace ECTS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure
