Climate Control Exhaust Gas Sensor: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper

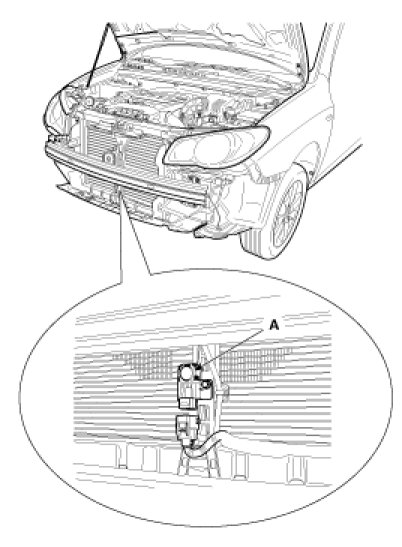

3. Remove the AQS (A) after loosening the mounting bolt.




4. Installation is the reverse order of removal.
