Connector Views





Components

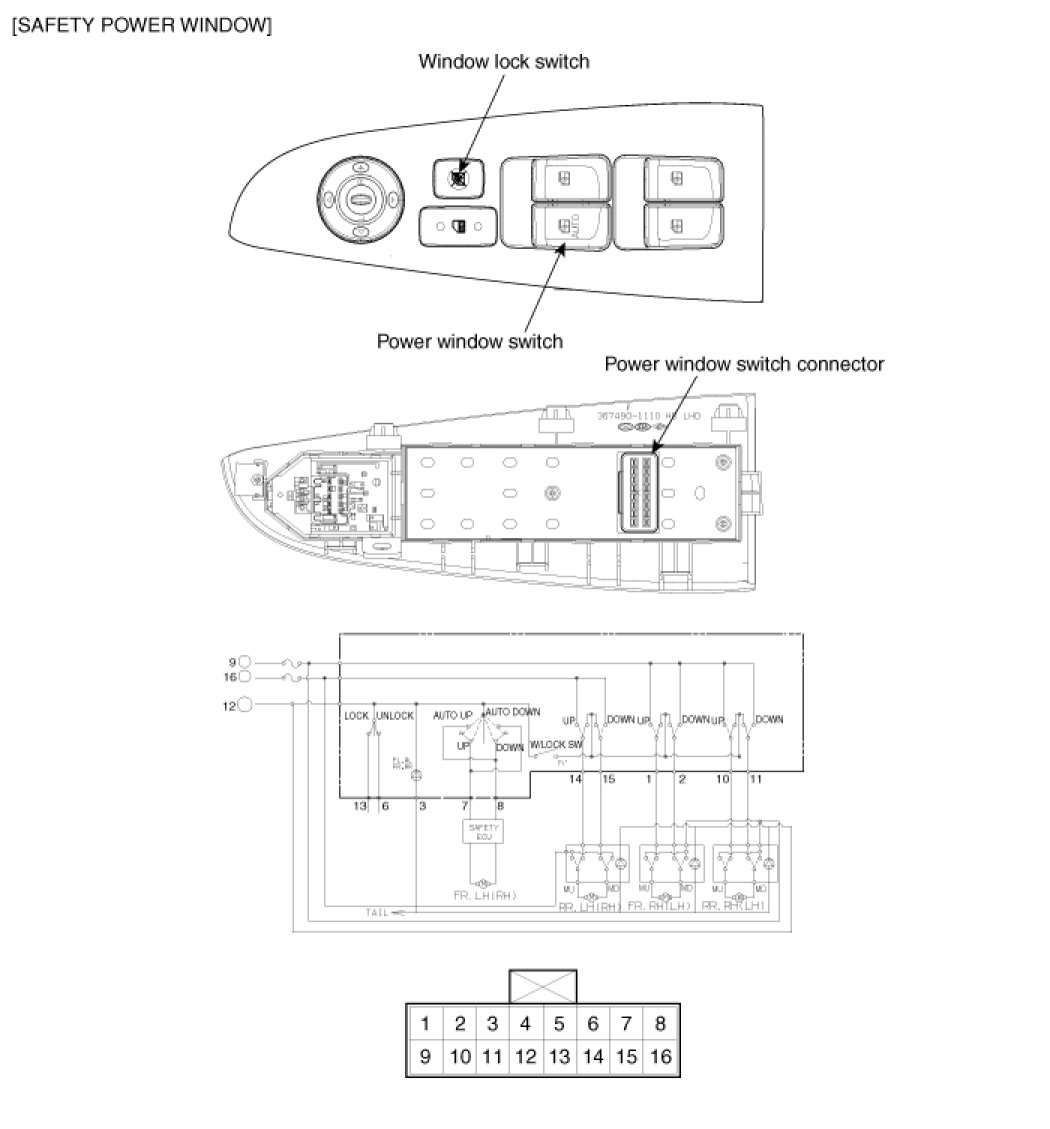

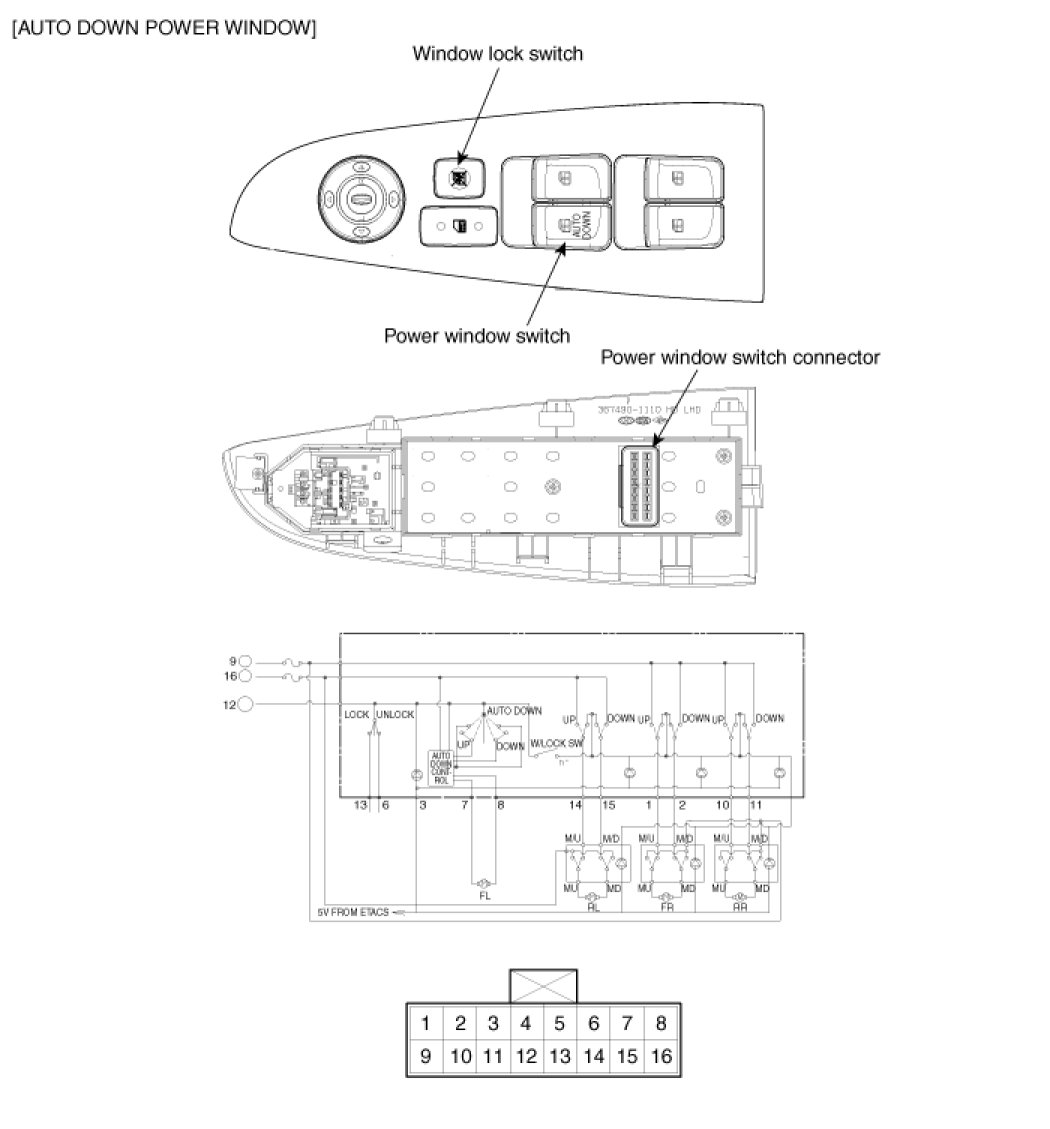

Power Window Main Switch

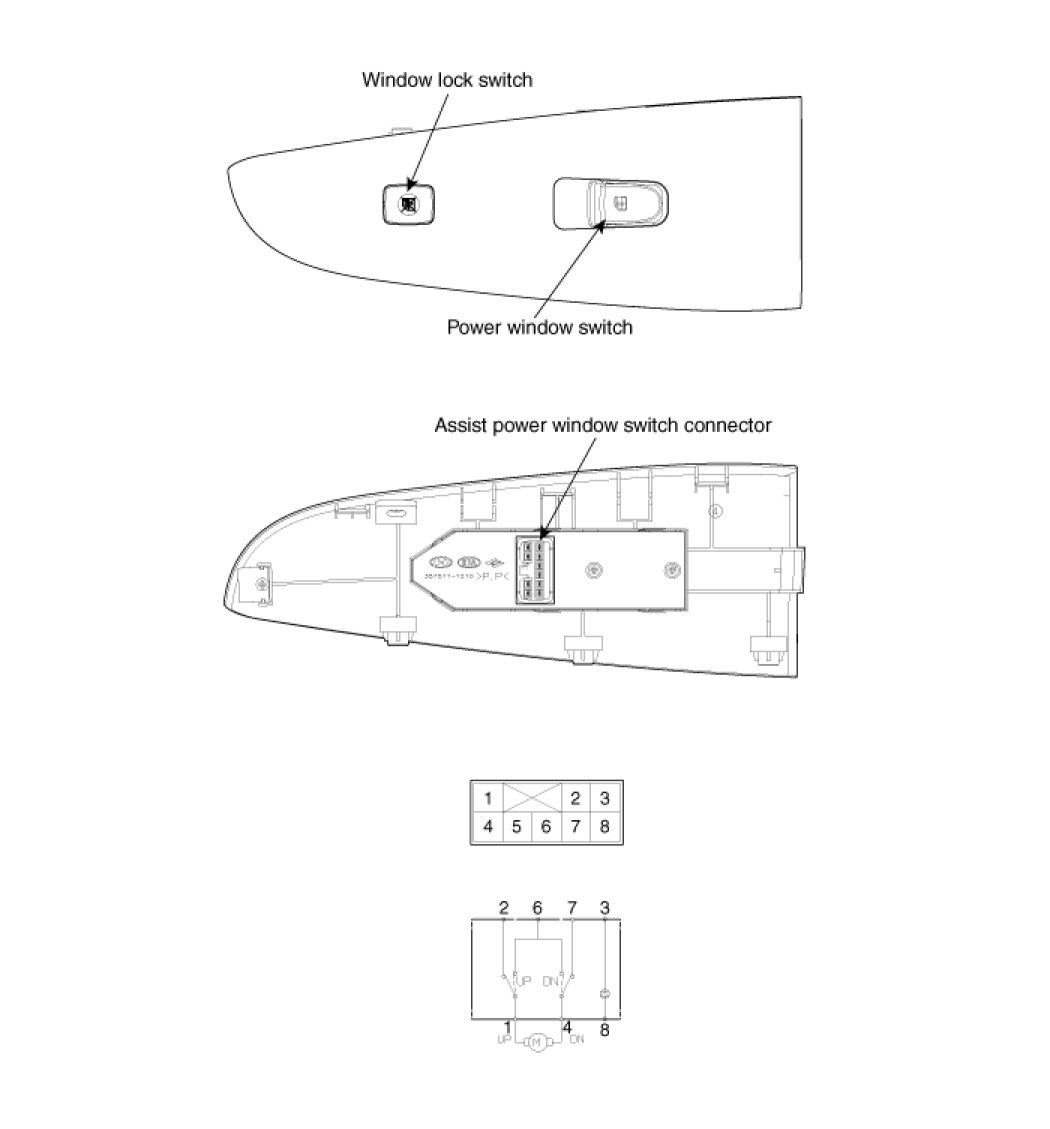

Assist Power Window Switch

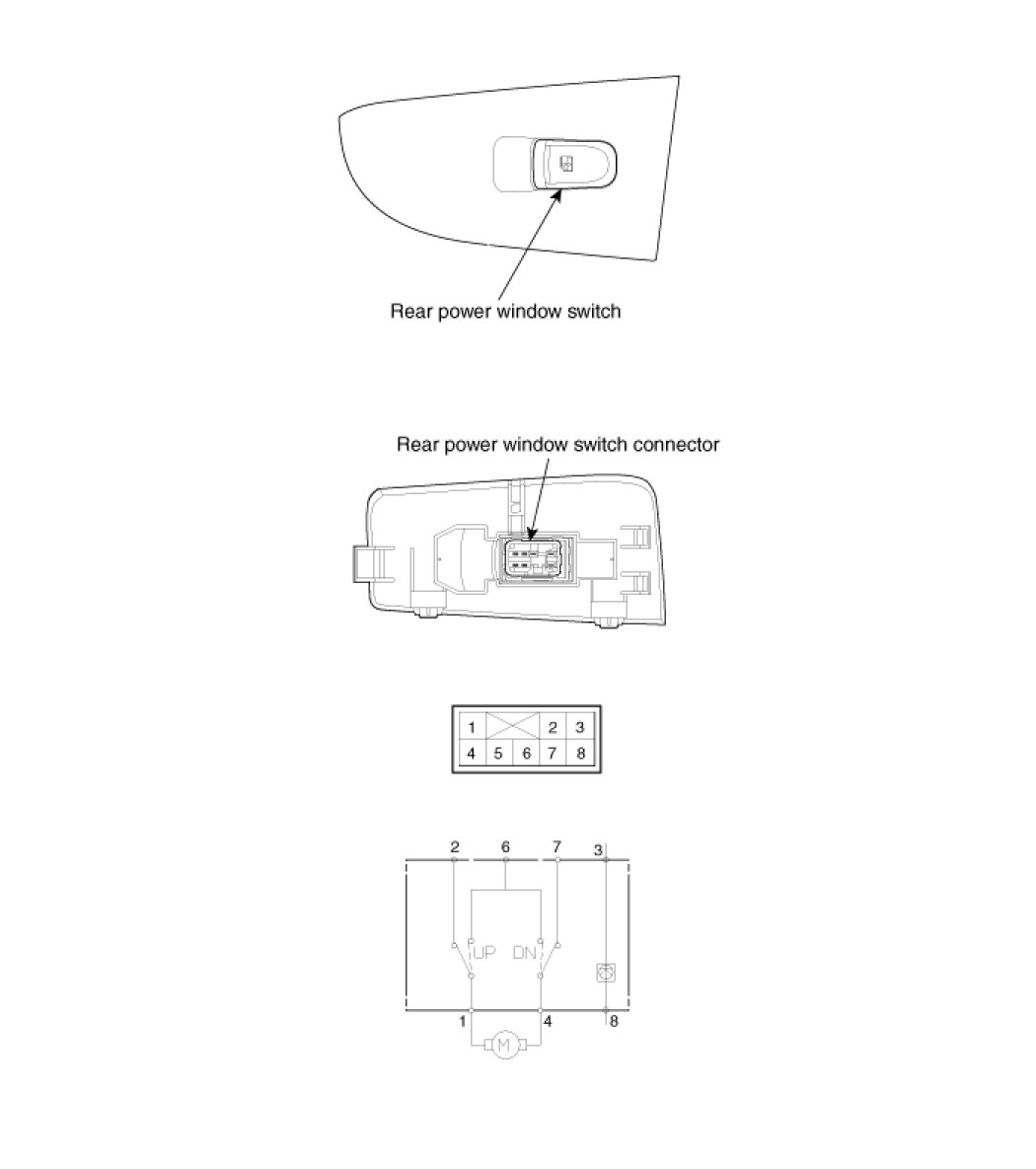

Rear Power Window Switch
