Circuit Diagram

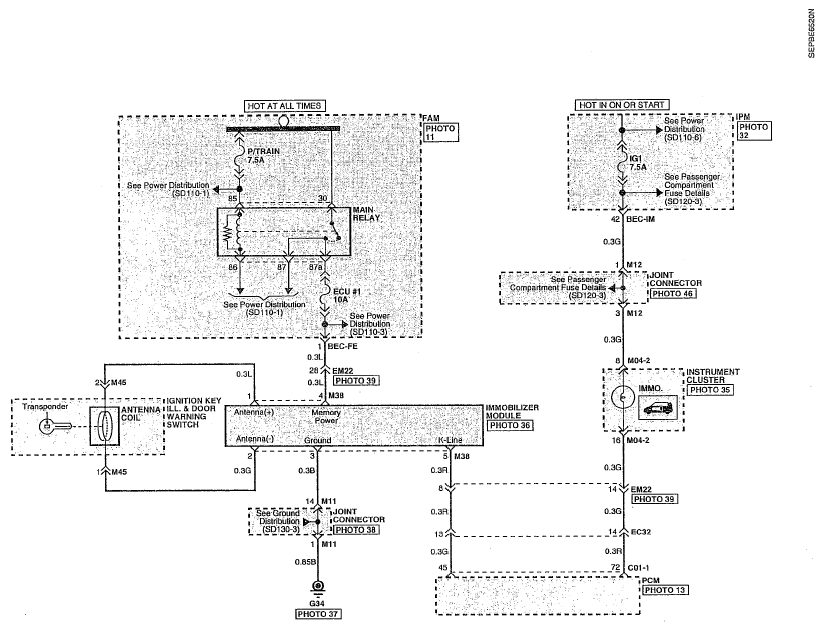

Fig 1: Immobilizer Control System - Circuit Diagram
G05536077Courtesy of HYUNDAI MOTOR CO.
Fig 2: Identifying Immobilizer Control Connector Terminal
G05325474Courtesy of HYUNDAI MOTOR CO.
