Steering Column/Shaft: Components

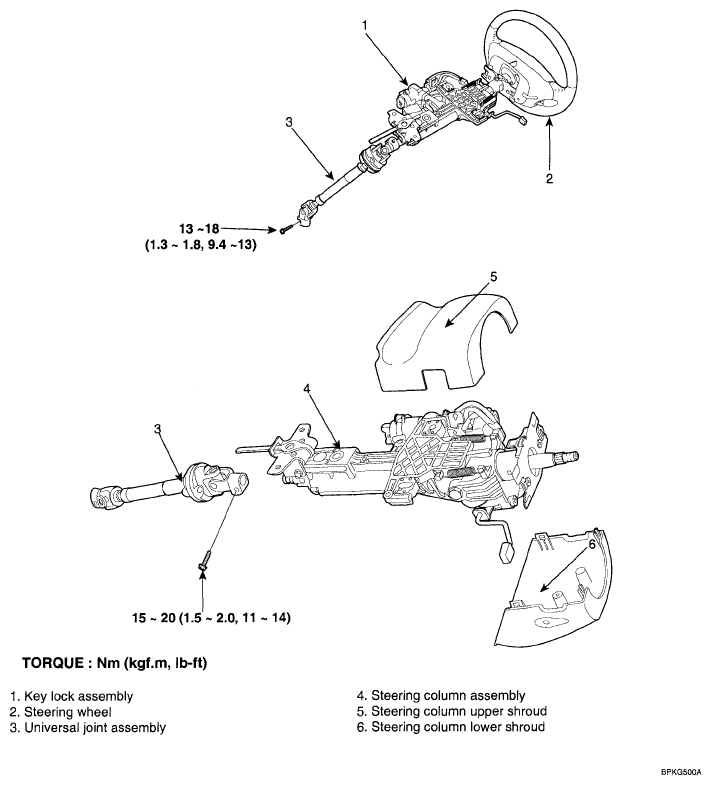

Fig 1: Steering Column / Shaft Replacement Components With Torque Specifications
G05322784Courtesy of HYUNDAI MOTOR CO.
