Components (1)

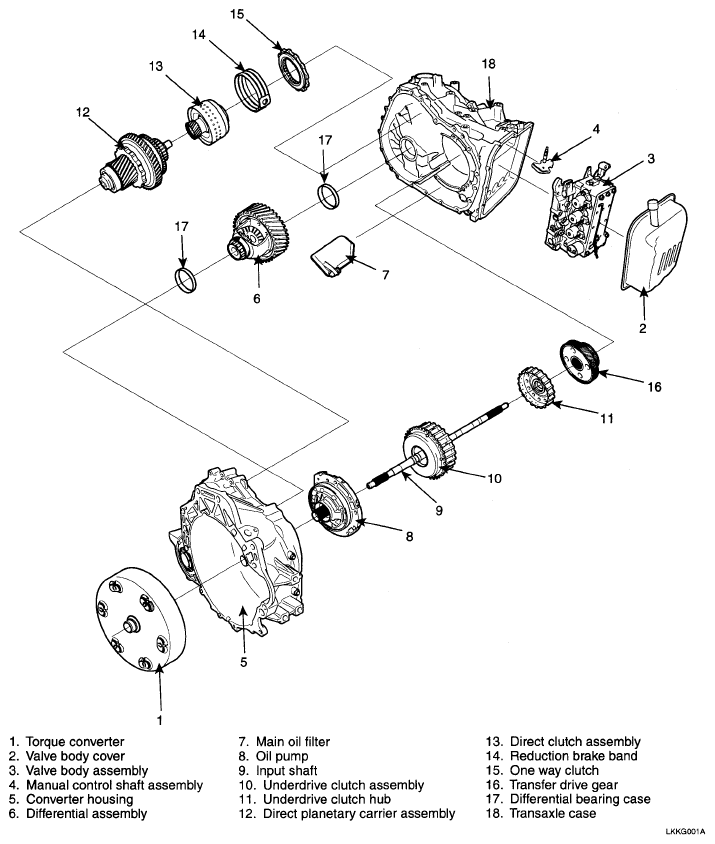

Fig 1: Identifying Automatic Transaxle Components
G05322395Courtesy of HYUNDAI MOTOR CO.

COMPONENTS (2)

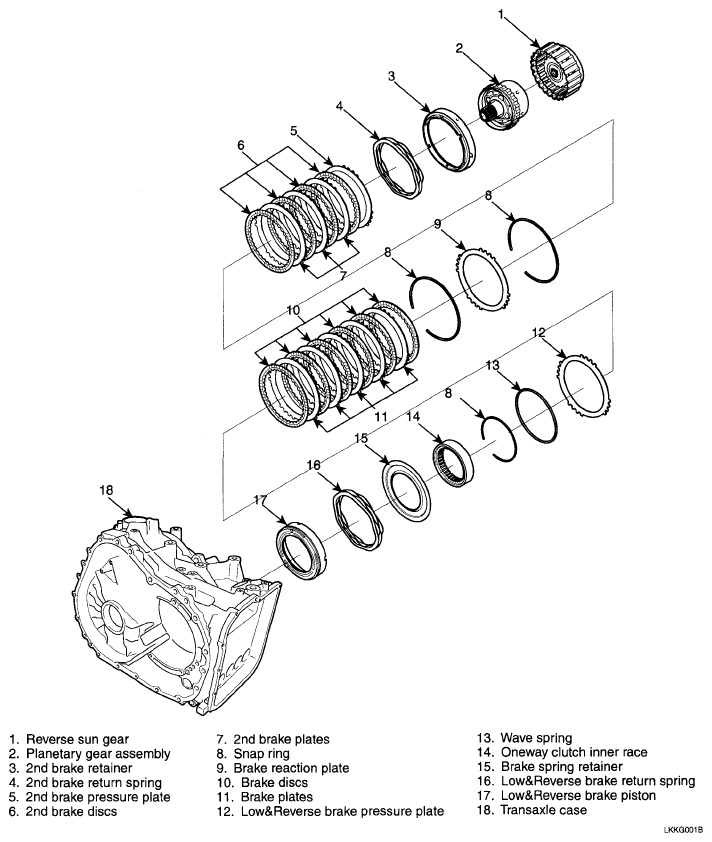

Fig 2: Identifying Automatic Transaxle Components
G05322396Courtesy of HYUNDAI MOTOR CO.
