Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the A/C control panel. .

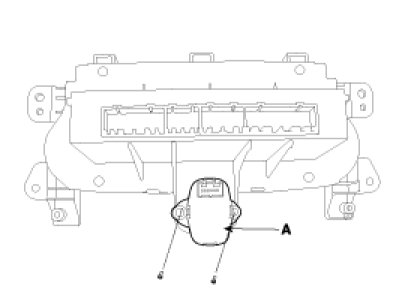

3. Disconnect the connector of in-car sensor. Loosen the mounting 2 screws and then remove the in-car sensor (A).




4. Installation is the reverse order of removal.
