Repair Procedures

Replacement

1. Drain the power steering fluid.

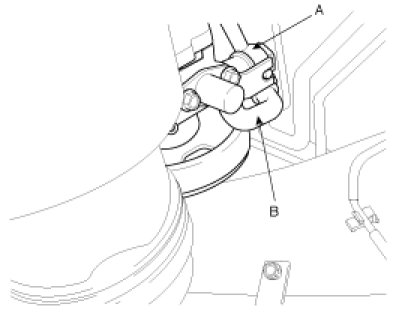

2. Disconnect the pressure tube (A) and suction tube (B) from the power steering oil pump.

Tightening torque :
55 - 65N.m (4.5 - 5.5kgf.m, 40 - 47lb-ft)

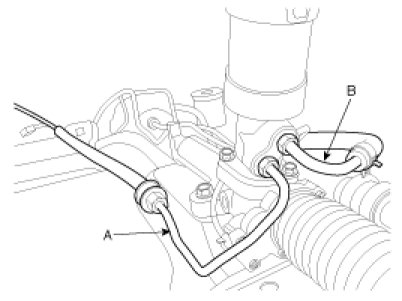

3. Disconnect the pressure tube (A) and return tube (B) from the valve body housing.

Tightening torque :
12 - 18N.m (1.2 - 1.8kgf.m, 9 - 13lb-ft)

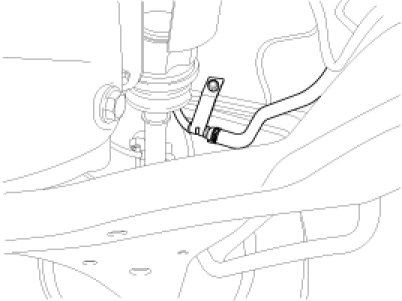

4. Remove the brackets of the pressure tube and hose from the sub-frame.

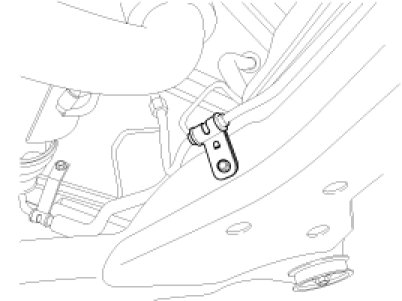

5. Remove the bracket of the return tube and hose.




6. Remove the under cover and then loosen the oil cooler tube bracket bolts.

NOTE:
Be sure to connect between a tube and a hose as shown in the illustration.




7. Installation is the reverse of removal.
8. After installation, bleed the power steering system.
