Relay Box: Application and ID

Fuse & Relay Information

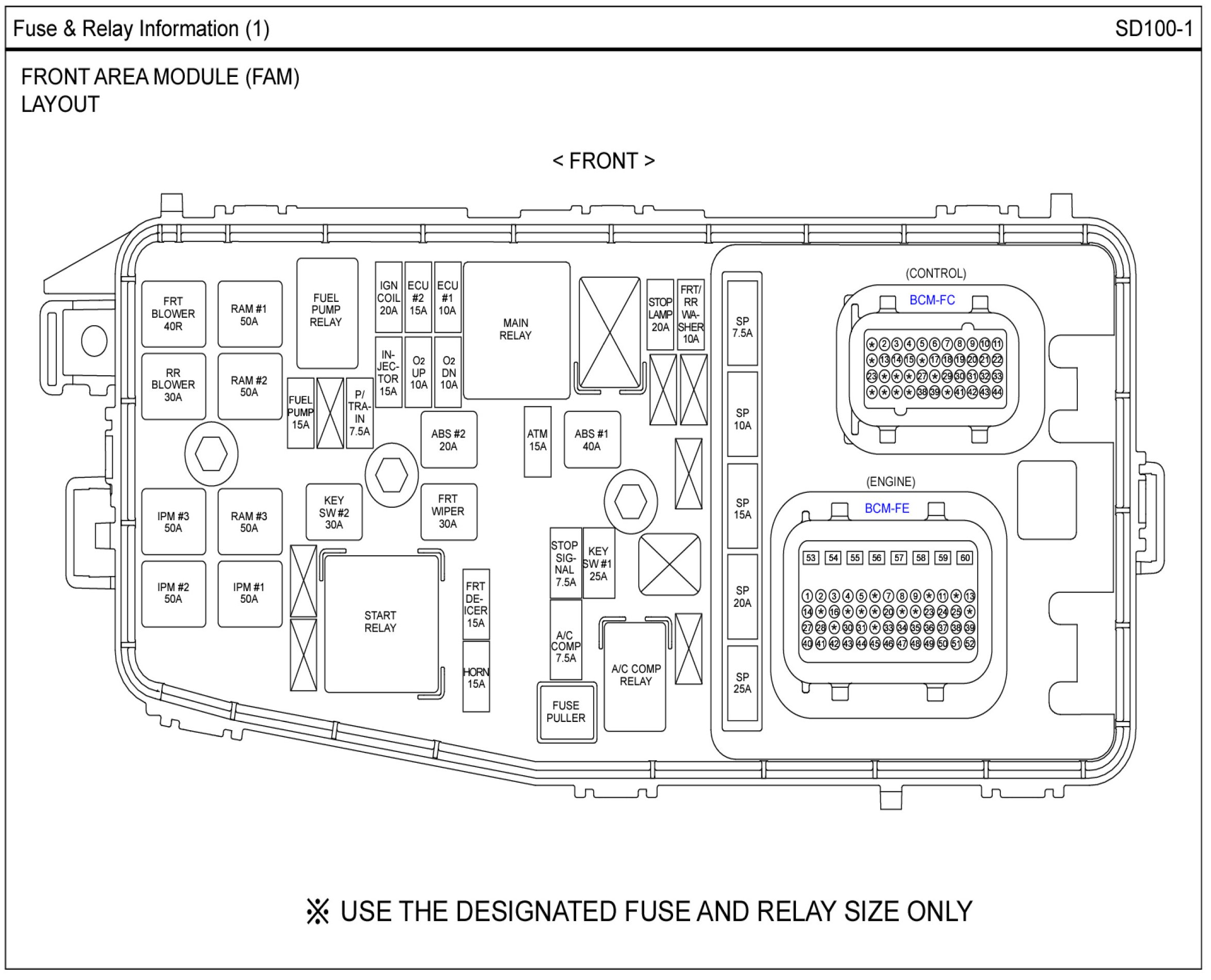

Front Area Module (FAM) Layout View:

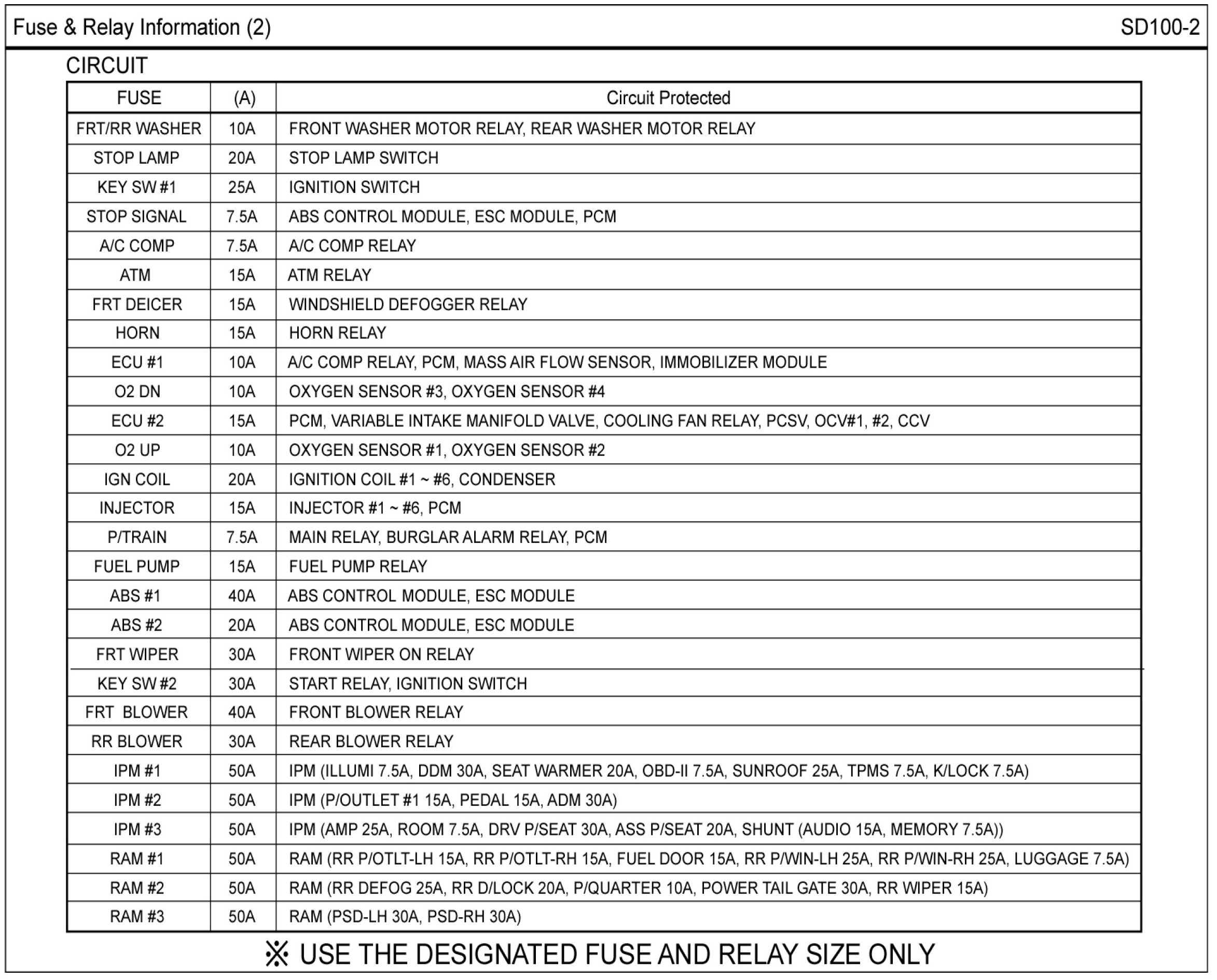

Front Area Module (FAM) Layout Circuit Details:

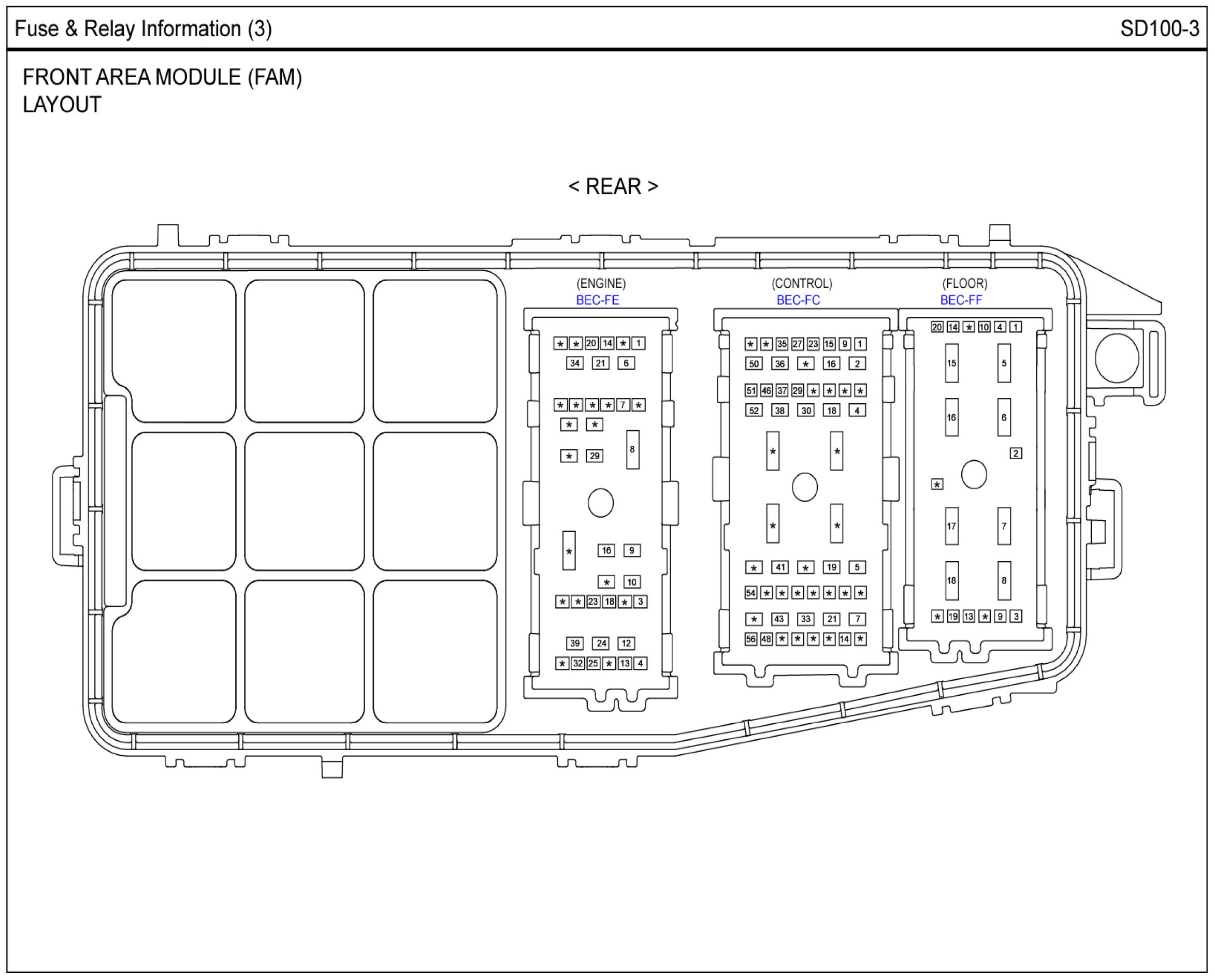

Front Area Module (FAM) Layout View:

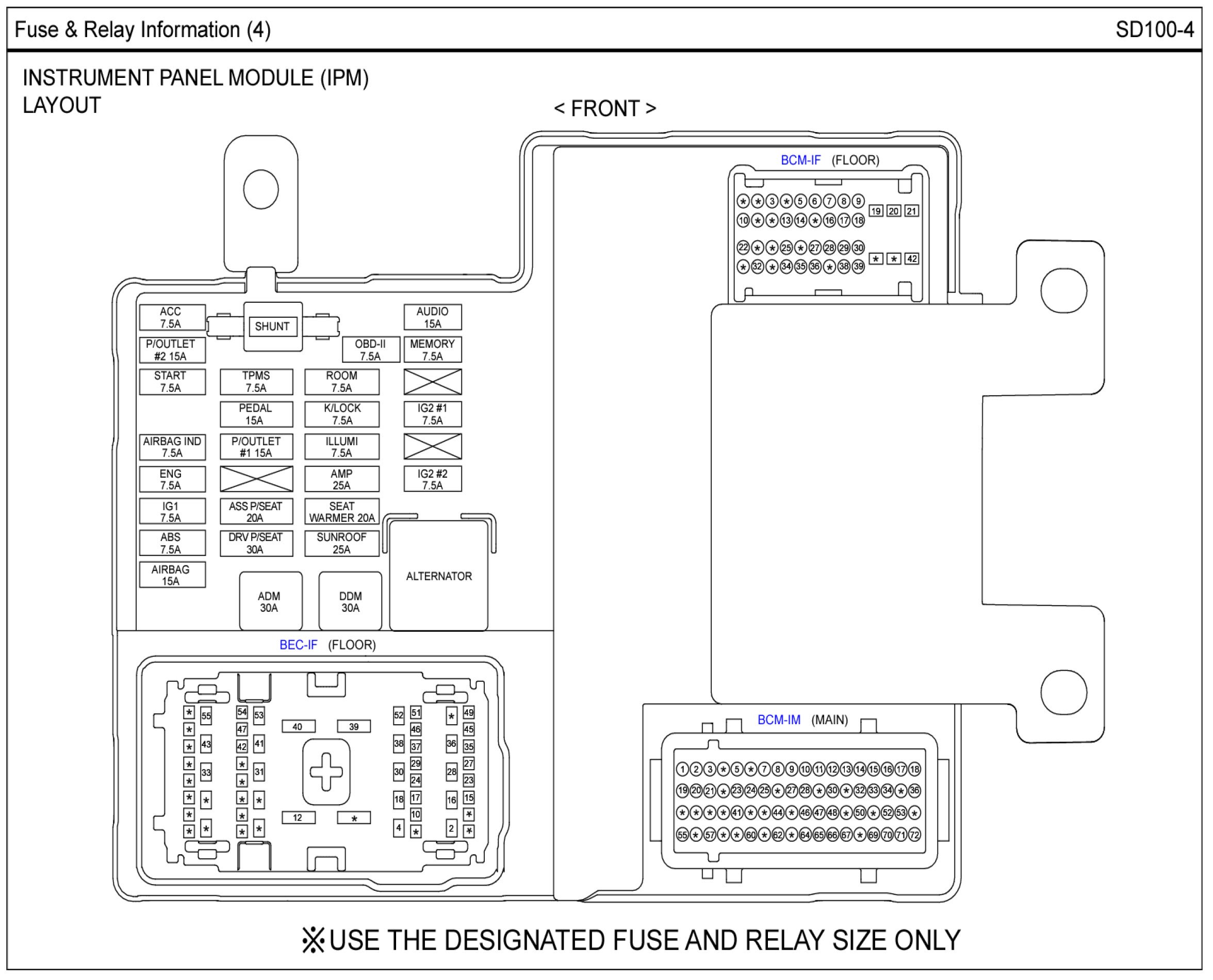

Instrument Panel Module (IPM) Layout View:

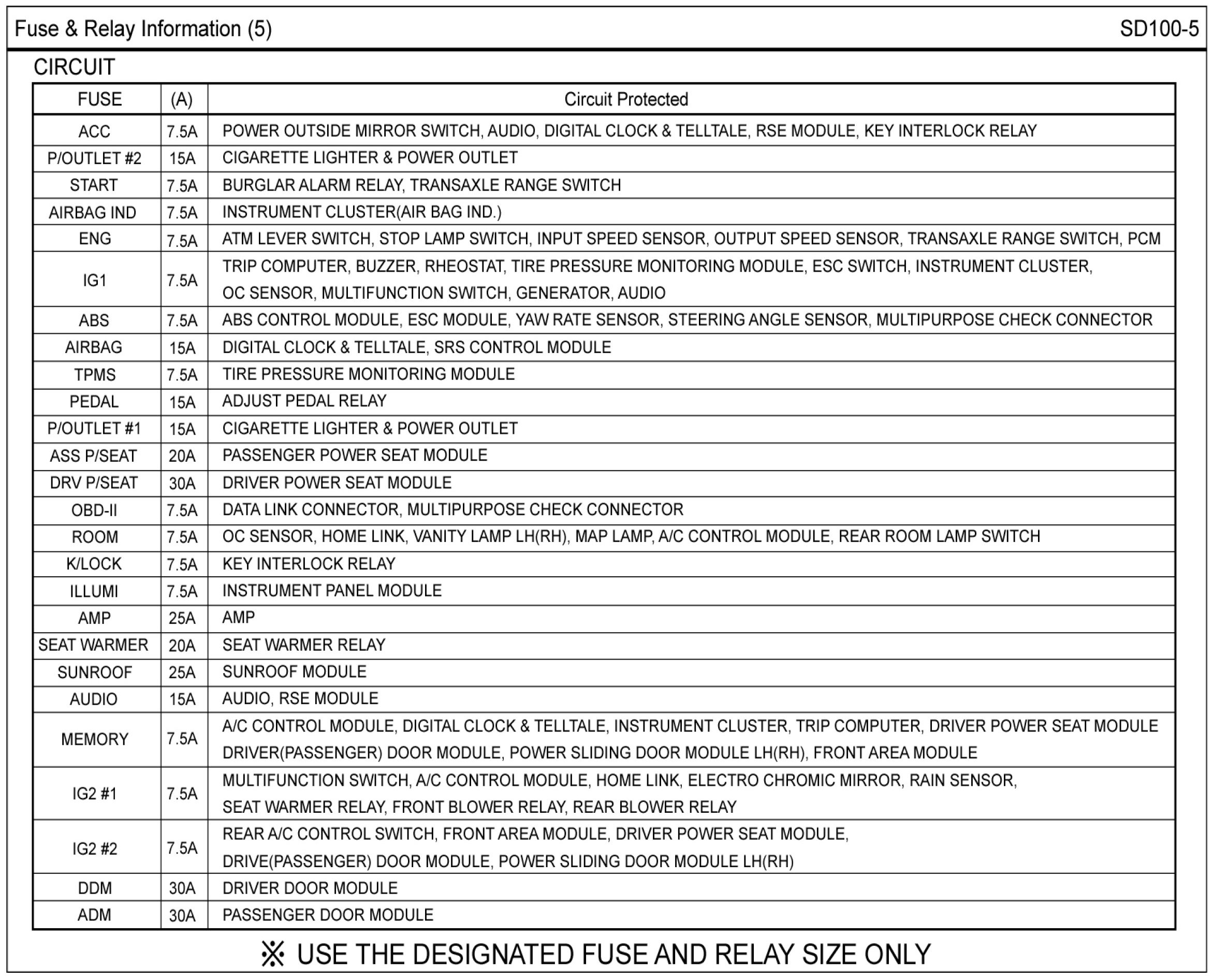

Instrument Panel Module (IPM) Layout Circuit Details:

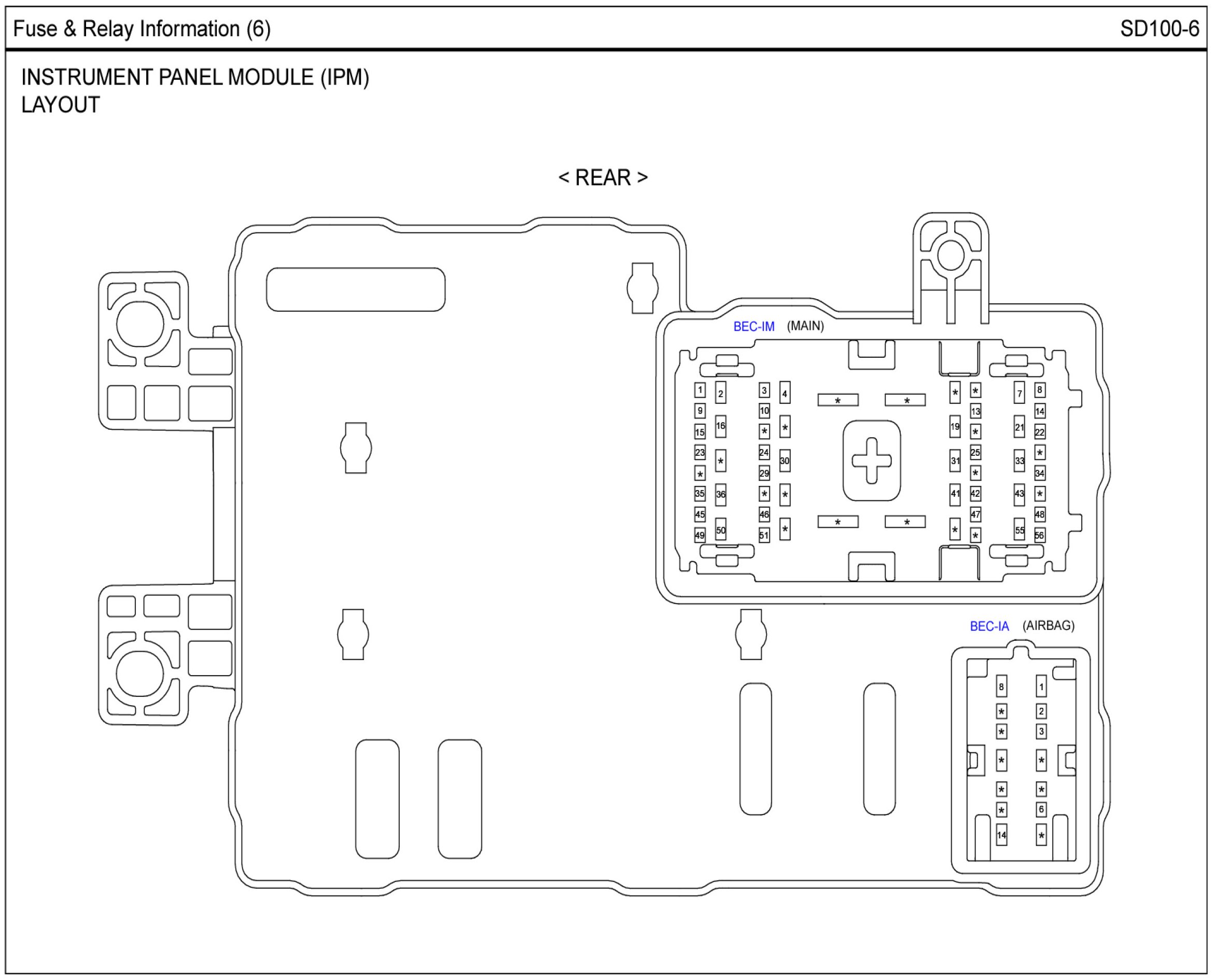

Instrument Panel Module (IPM) Layout View:

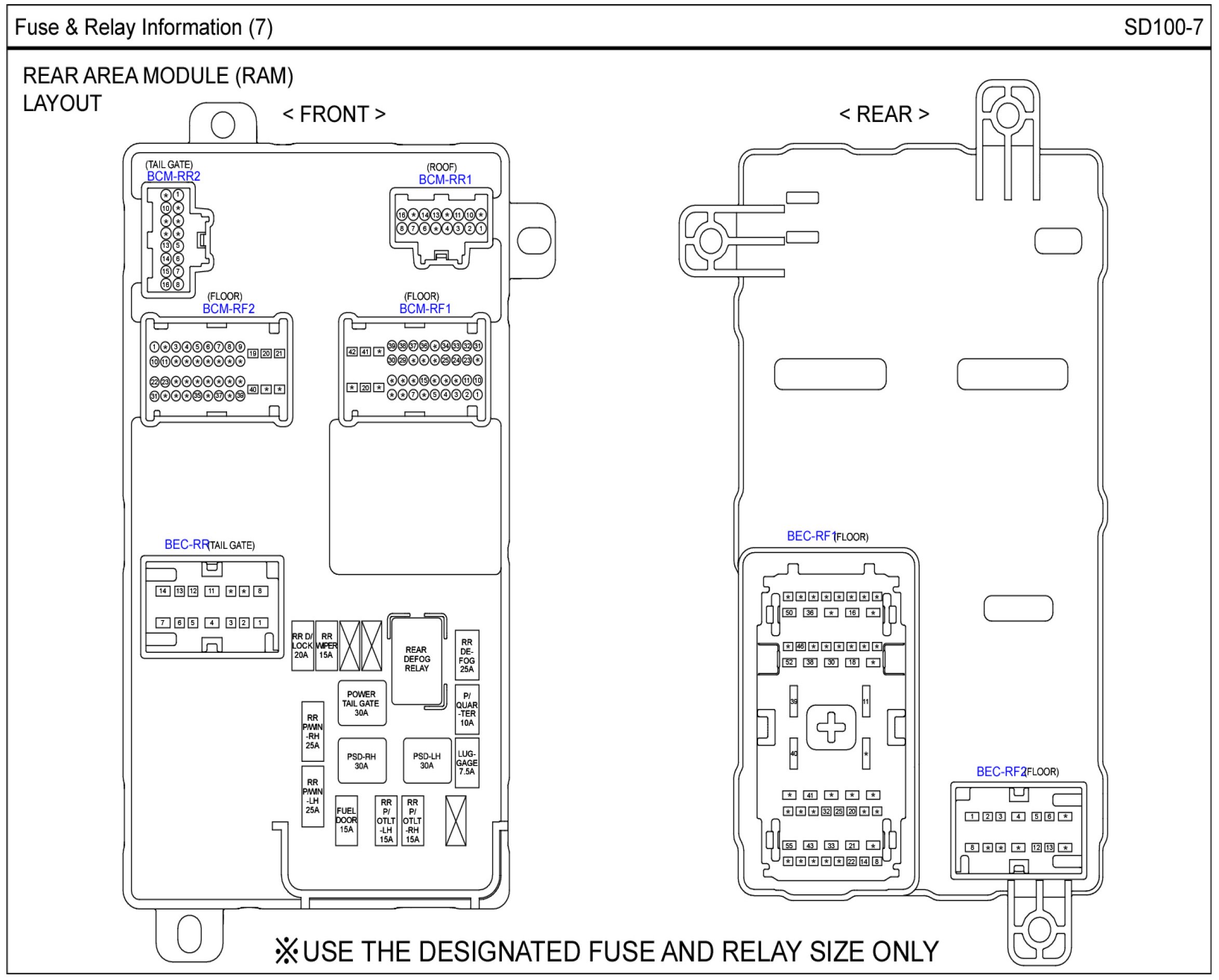

Rear Area Module (RAM) Layout View:

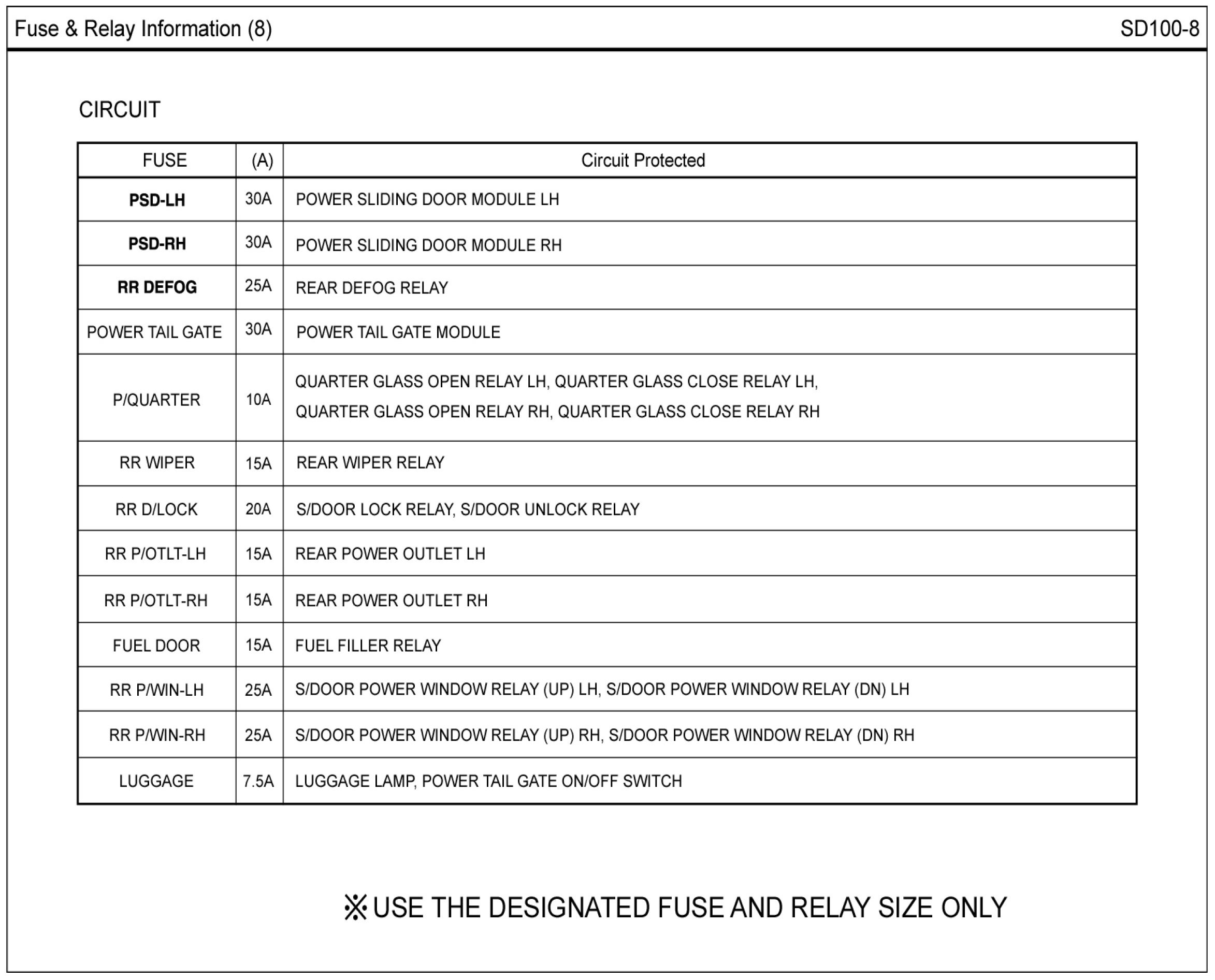

Rear Area Module (RAM) Layout Circuit Details:
