Rear Suspension System





Specifications

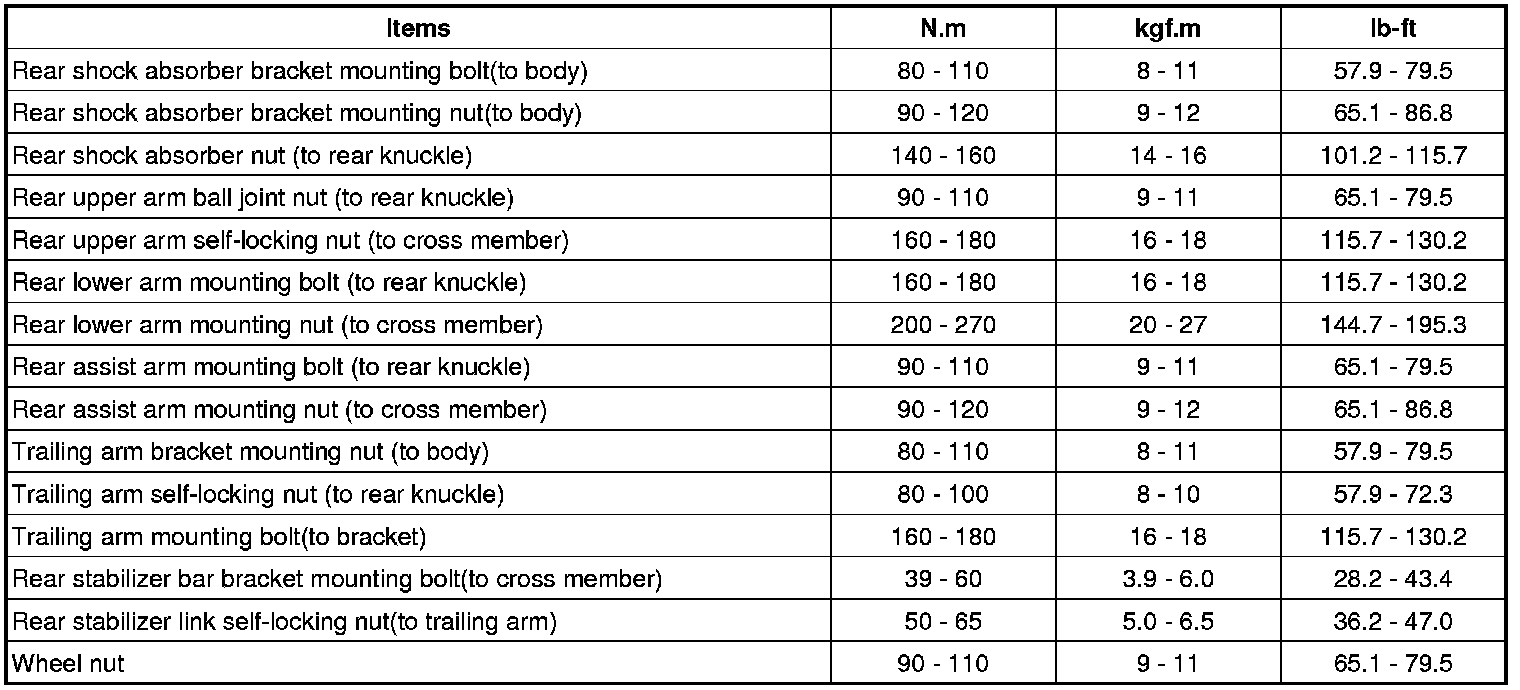

Tightening Torque
Rear Suspension






CAUTION:
Replace the self-locking nuts with new ones after removal.
