Power Window Control
Power window function controls the followings.
- Driver power window
- Assist power window
- Rear Left power window
- Rear Right power window
- Power Window Inhibition : ADM, RLDM and RRDM are inhibited by Power window Lock Switch

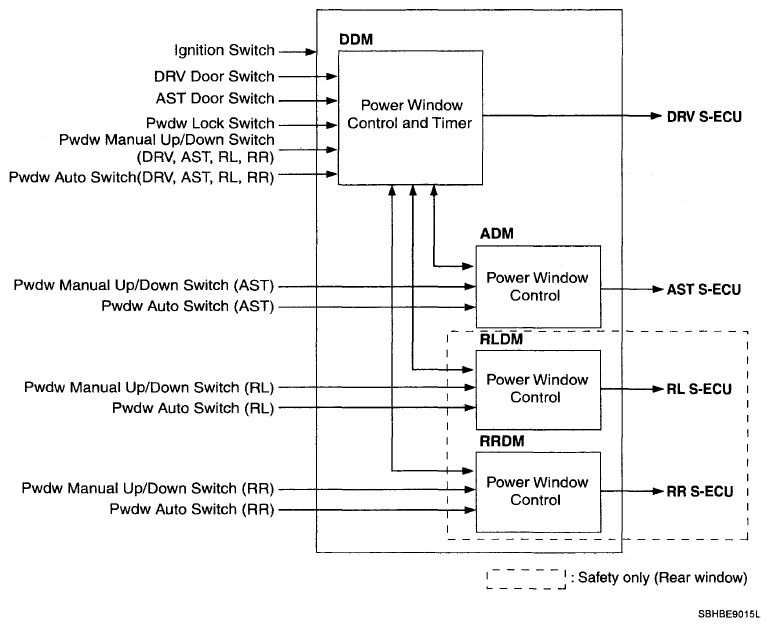

Power window Switch on DDM can control remotely ADM, RLDM and RRDM via CAN or local communication.
Each Power window can control locally oneself.
