IPM (Instrument Panel Module)

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel (A). (Refer to CRASH PAD )

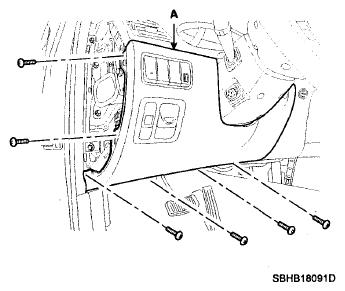

Fig 1: Identifying Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the IPM (A) after removing the nut and connector.

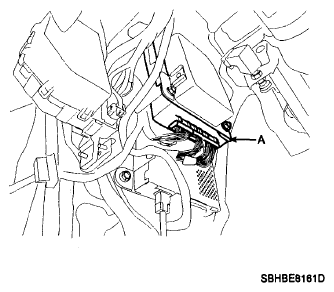

Fig 2: Identifying IPM (Instrument Panel Module) (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Identifying IPM (Instrument Panel Module) (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
