IMS Control Switch: Removal

Disconnect the negative (-) battery terminal.
Remove the front door trim panel (A).
(Refer to FRONT DOOR )

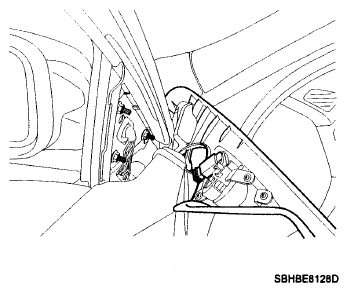

Fig 1: Identifying Front Door Trim Panel Connector
Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying Front Door Trim Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the door trim garnish (A) after removing the screws inside the door trim.

Fig 3: Identifying Door Trim Garnish
Courtesy of HYUNDAI MOTOR CO.
After removing the mounting screws (3EA) and switch connector, then remove the IMS control switch.

Fig 4: Identifying Switch Connector With Mounting Screws
Courtesy of HYUNDAI MOTOR CO.
