ESC (Electronic Stability Control) System: Components(1): Components(2)

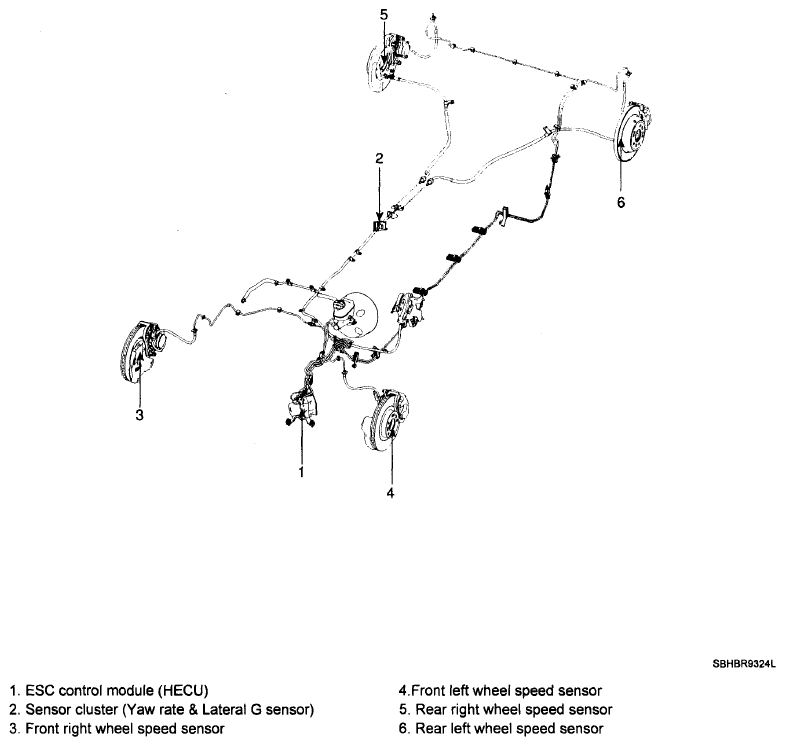

Fig 1: Identifying ESC (Electronic Stability Control) - Genesis (2 Of 2)
G06101173Courtesy of HYUNDAI MOTOR CO.
