Power Window Motor: Service and Repair

Replacement

Power Window Motor Replacement
1. Remove the door trim.

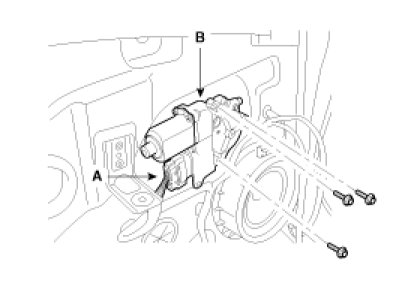

2. After disconnecting the connector (A), remove the power window motor (B).




3. Installation is the reverse of removal.

NOTE:
- Grease should be applied to areas where there is rotational parts and springs.
- Roll the glass up and down to see if it move freely without binding.
