Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

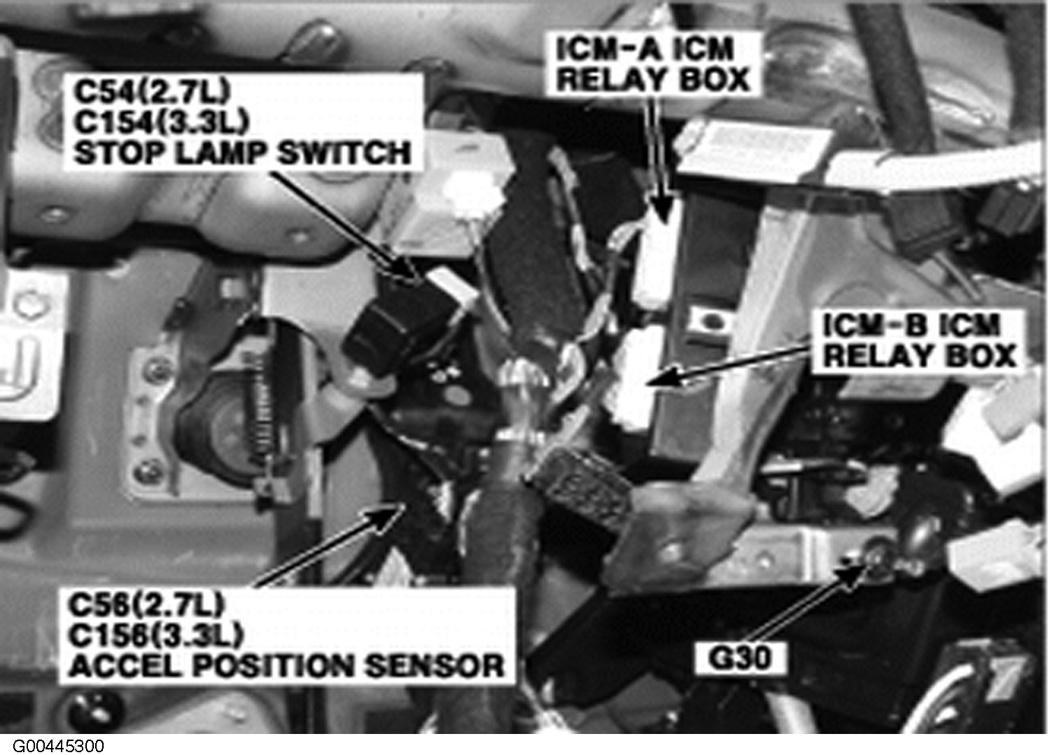

ICM Relay Box Below left side of dash. See Figure.
I/P Junction Block Behind lower left end of dash.

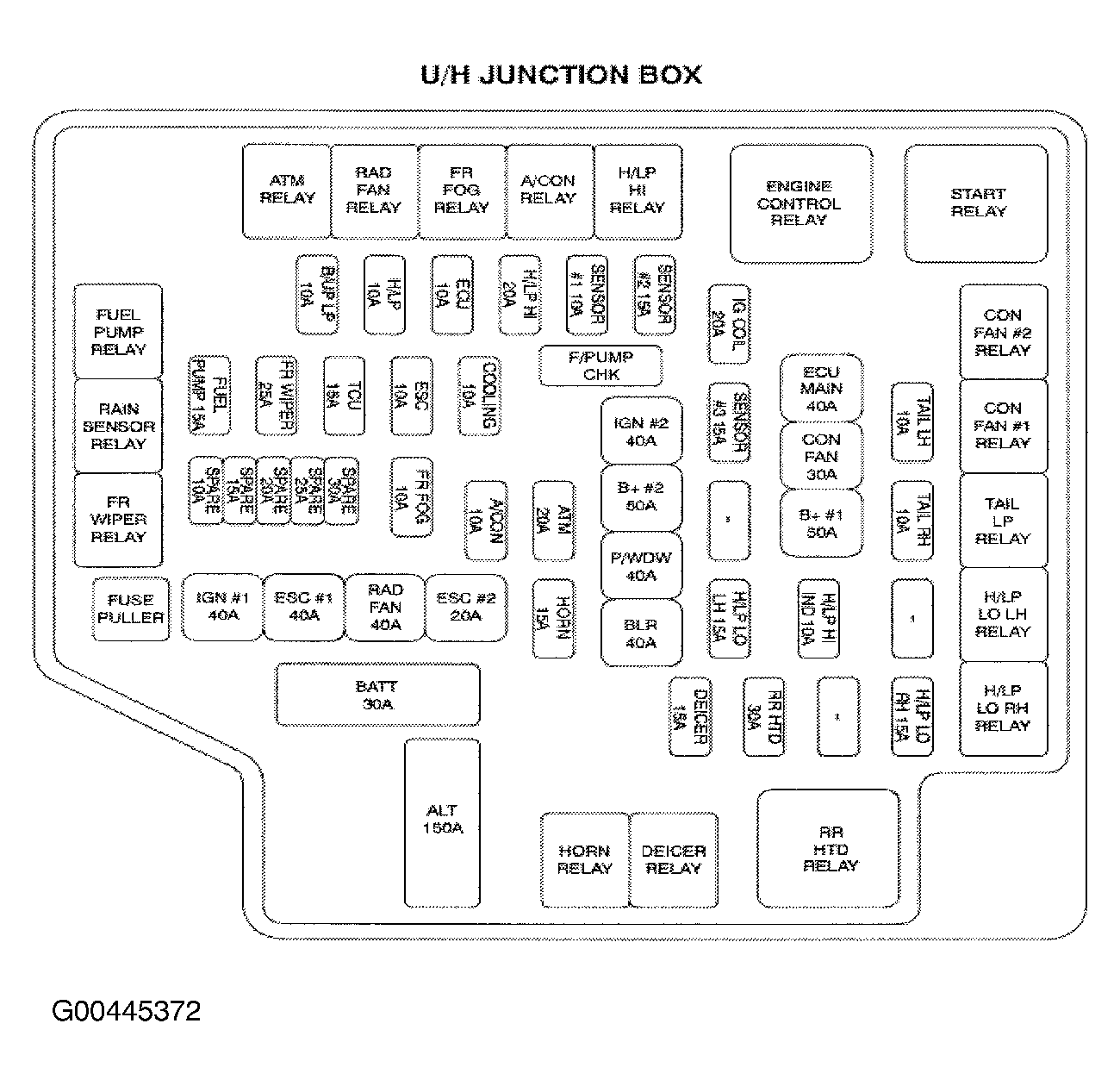

U/H Junction Box Left rear of engine compartment. See Figure.
