Hi-scan Check

  1. Turn the ignition switch off.
  2. Connect the Hi-Scan Pro connector to the data link connector located under the crash pad.

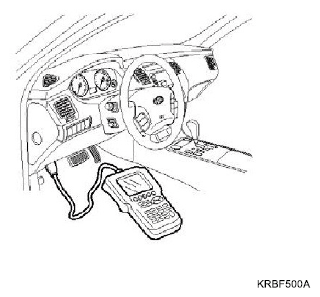

    Fig 1: Connecting HI-Scan Pro Connector To Data Link Connector
    G06217527Courtesy of HYUNDAI MOTOR CO.
  3. Turn the ignition switch on and power on the Hi-Scan Pro.
  4. Read DTCs.
  5. Find and repair the trouble, and clear the DTCs using Hi-Scan Pro.
  6. Disconnect the Hi-Scan Pro.
  7. Confirm proper system operation :
    • Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then to off.
