Side Impact Sensor (SIS): Components

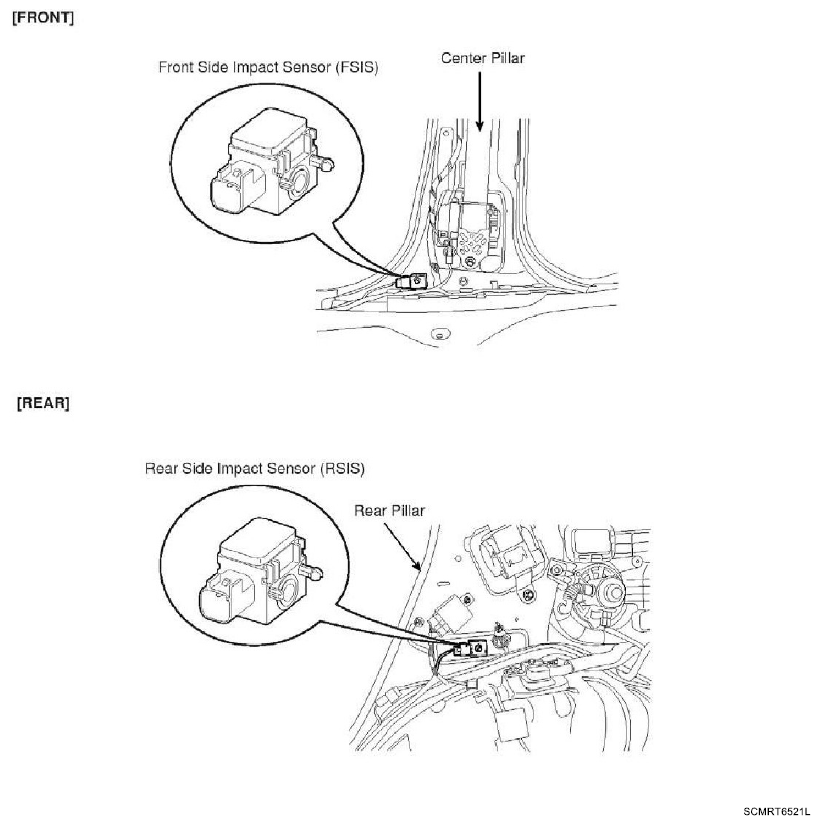

Fig 1: Identifying Side Impact Sensor (SIS) Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
