Tucson GLS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTC Troubleshooting Procedures (2.0L)
>>
Troubleshooting for DTC
>>
P0136 O2 Sensor Circuit Malfunction (Bank 1/Sensor 2)
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

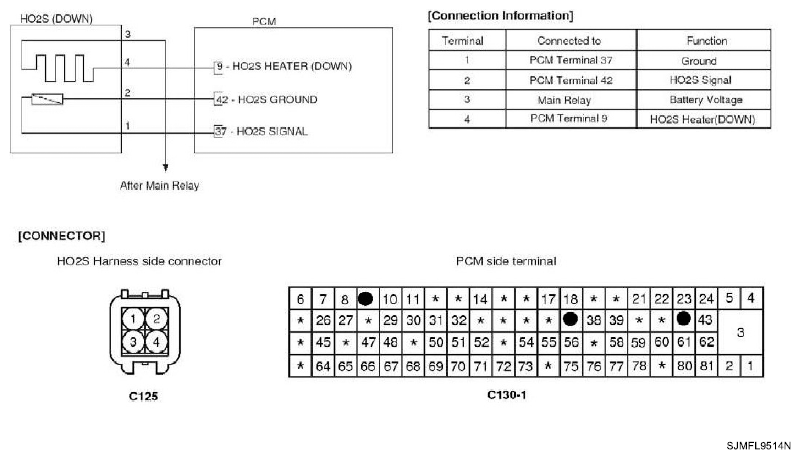

Fig 1: HO2S And PCM - Schematic Diagram
Courtesy of HYUNDAI MOTOR AMERICA
